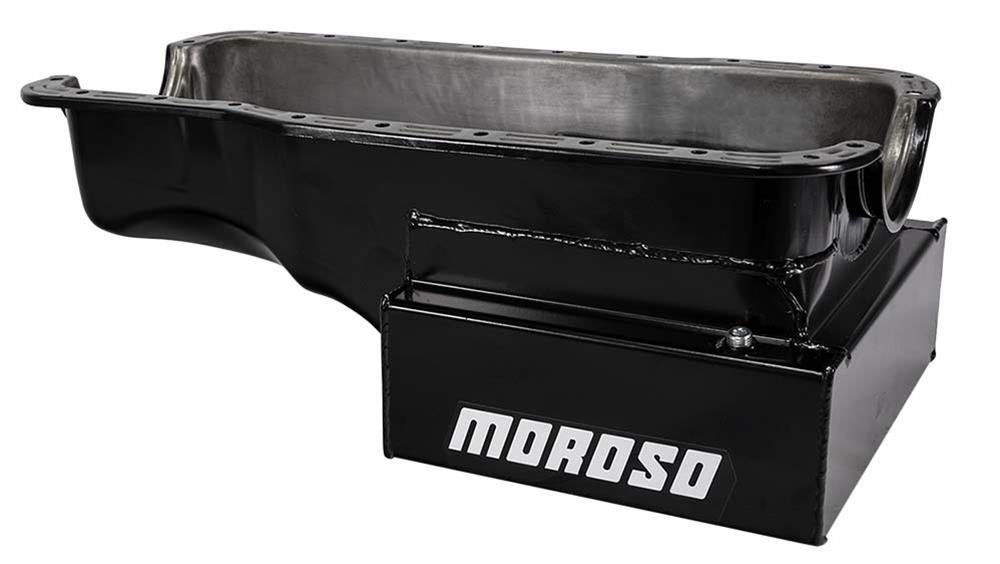

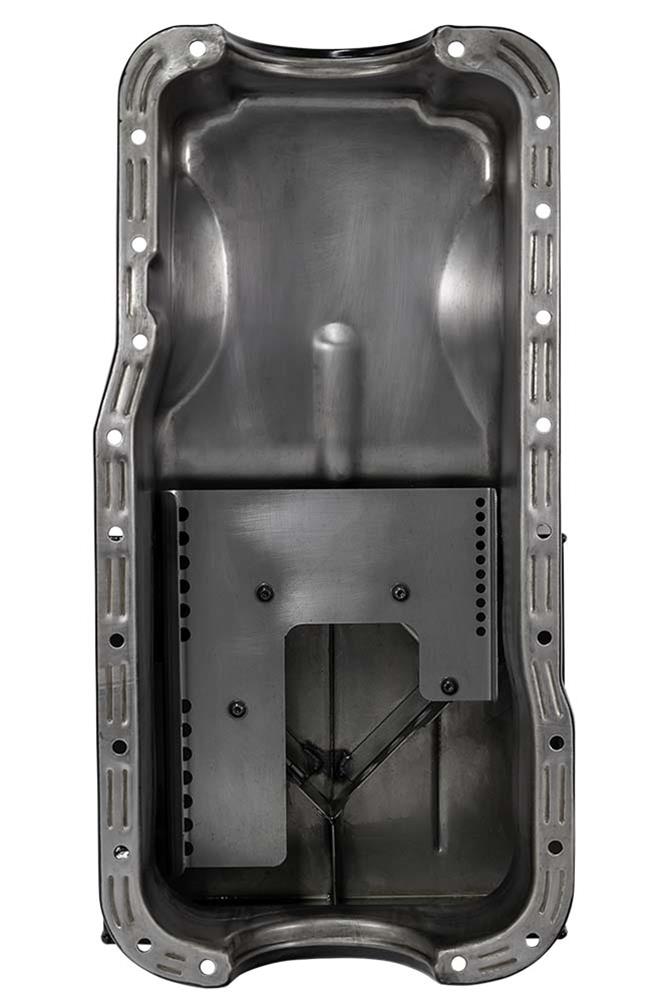

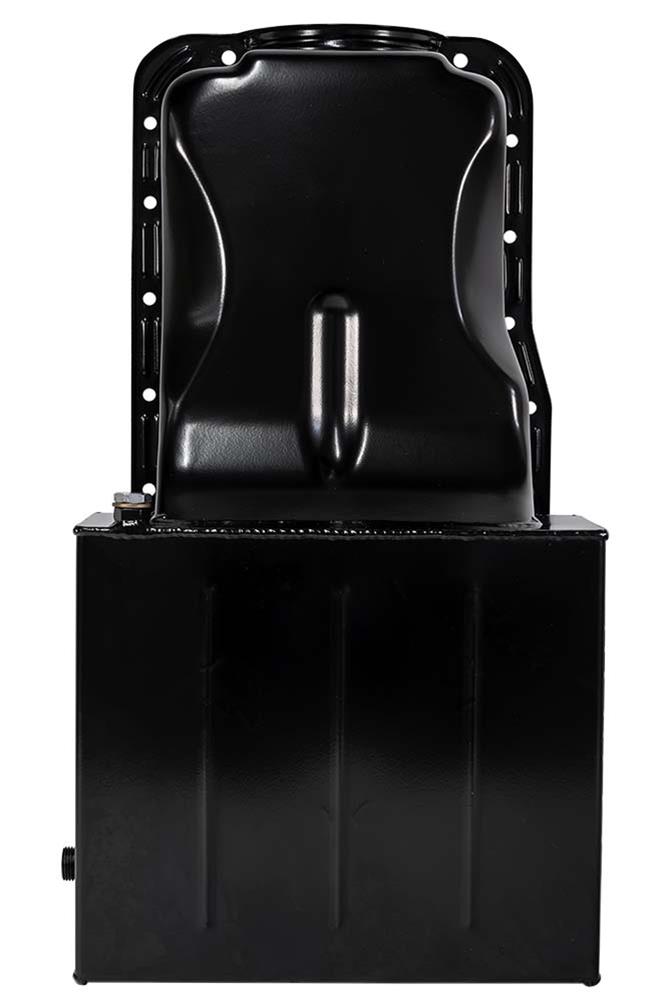

Moroso Ford 289-302 (w/Front Sump) Kicked Out Road Race Baffled 9qt 8in Steel Oil Pan
Moroso Ford 289-302 (w/Front Sump) Kicked Out Road Race Baffled 9qt 8in Steel Oil Pan
A$1,120.84
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Designed for street performance machines that see occasional strip use, these Moroso oil pans are modified with deep or kicked-out sumps for increased capacity and oil control under hard acceleration. With a simple bolt-on installation into most production chassis, these Moroso street/strip oil pans are perfect for the weekend warrior.
Product Overview
Moroso Ford 289-302 (w/Front Sump) Kicked Out Road Race Baffled 9qt 8in Steel Oil Pan
Product Details
| Description: | Moroso Ford 289-302 (w/Front Sump) Kicked Out Road Race Baffled 9qt 8in Steel Oil Pan |
|---|---|
| Part Number: | mor20503 |
Part Type
Oil Pans
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20503
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Street/Strip Oil Pans
- Product Attributes - UPC
- 084663205033
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Sump Location
- Front
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 9.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 3.500 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 8.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Driver and passenger side
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Will also work on Cobra kit cars. Will not clear 302-351W 4-bolt front and rear main caps without pan and main cap modifications.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20503 |
| SFX Item ID | 4103395 |
| Supplier Item Code | 4103395 |
| Manufacturer SKU | 20503 |
| Manufacturer UPC | 84663205033 |
| Alternative References | 9qt, 8in |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
