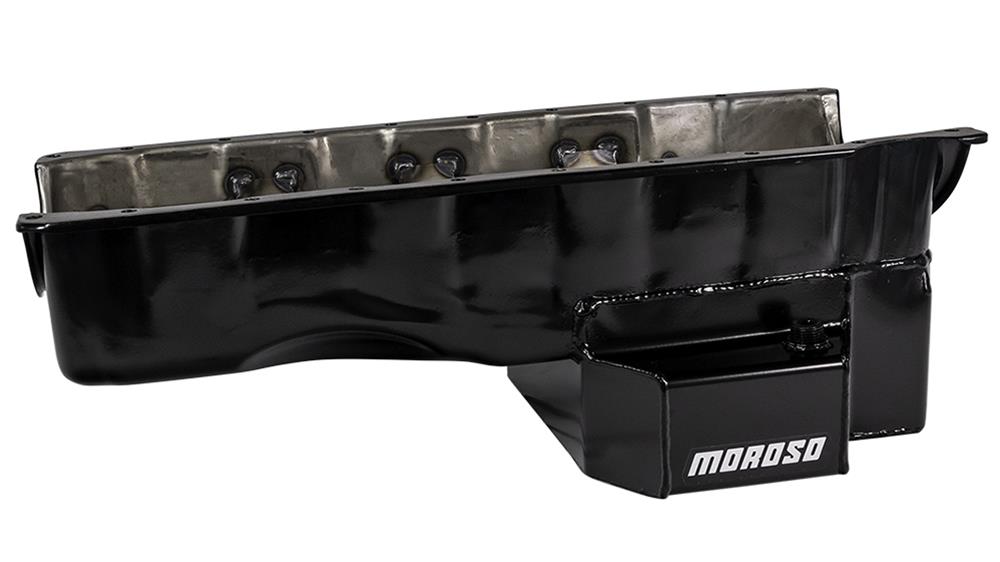

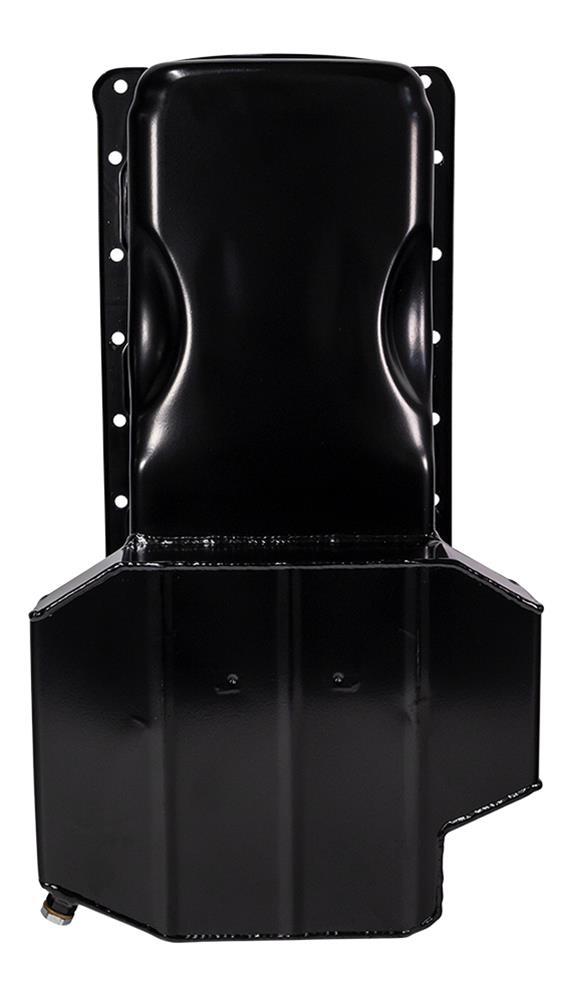

Moroso Chevrolet Big Block Gen 5/6/GM A Body Road Race Baffled Wet Sump 6.5qt 8in Steel Oil Pan
Moroso Chevrolet Big Block Gen 5/6/GM A Body Road Race Baffled Wet Sump 6.5qt 8in Steel Oil Pan
A$1,163.51
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Moroso drag/road racing oil pans are made with thick, precision laser-cut steel rails, and feature a 7 quart capacity that moves oil away from your rotating assembly, offering excellent oil control and horsepower savings. The pans' race-proven diamond shape, four trap door assembly, and anti-slosh baffles keep your oil contained in the oil pump pickup area during road and drag racing. Moroso drag/road race oil pans have a billet aluminum adapter with a 1/4 in. NPT sensor port that allows a 13/16th thread Moroso or OEM filter to be mounted in the stock location--no need to run a remote oil filter. These pans use a stock dipstick.
Product Overview
Moroso Chevrolet Big Block Gen 5/6/GM A Body Road Race Baffled Wet Sump 6.5qt 8in Steel Oil Pan
Product Details
| Description: | Moroso Chevrolet Big Block Gen 5/6/GM A Body Road Race Baffled Wet Sump 6.5qt 8in Steel Oil Pan |
|---|---|
| Part Number: | mor20421 |
Part Type
6.5qt Oil Pan - BBC Gen5 /Gen6 Road Race
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20421
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Drag/Road Race Oil Pans
- Product Attributes - UPC
- 084663204210
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Road Race
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 6.50 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.250 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No

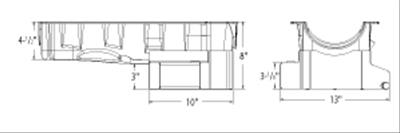

- Product Attributes - Oil Pan Depth (in.)
- 8.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Driver and passenger side

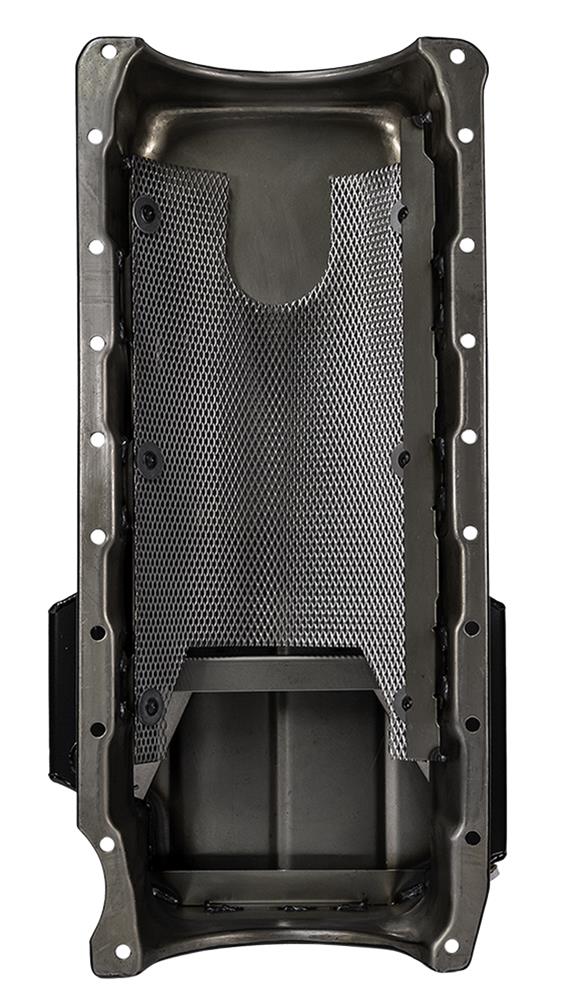

- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- Yes
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Does not fit 1962-67 Chevy II, V8 Vega/Monza, or 1957-55 Tri-Five Chevrolet models.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20421 |
| SFX Item ID | 4103381 |
| Supplier Item Code | 4103381 |
| Manufacturer SKU | 20421 |
| Manufacturer UPC | 84663204210 |
| Alternative References | 5/6/GM, 6.5qt, 8in |
