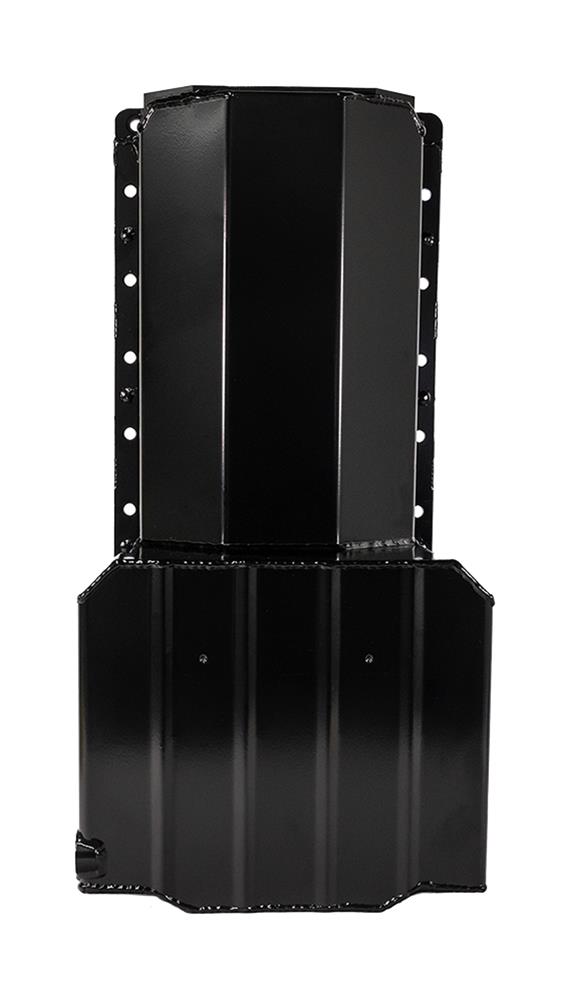

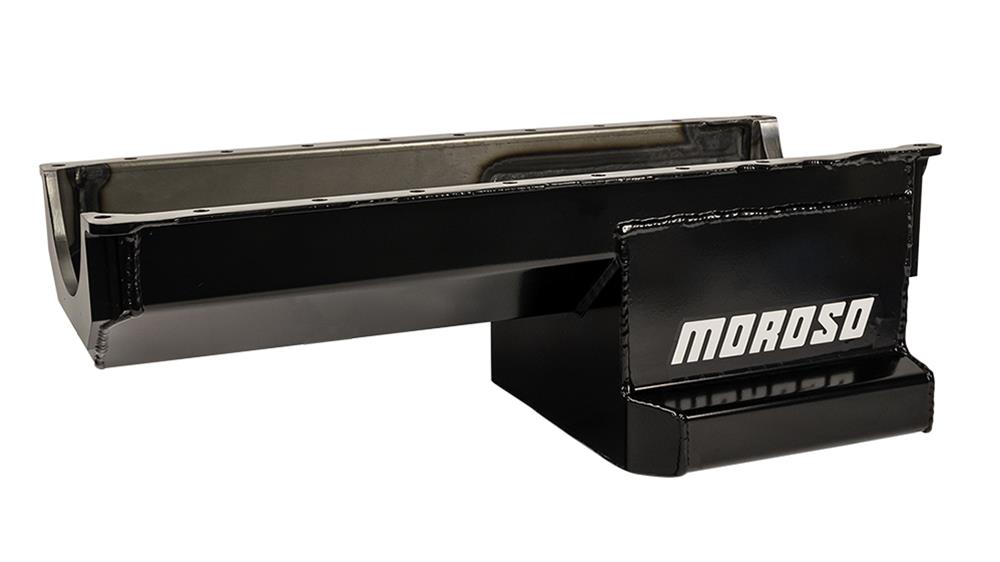

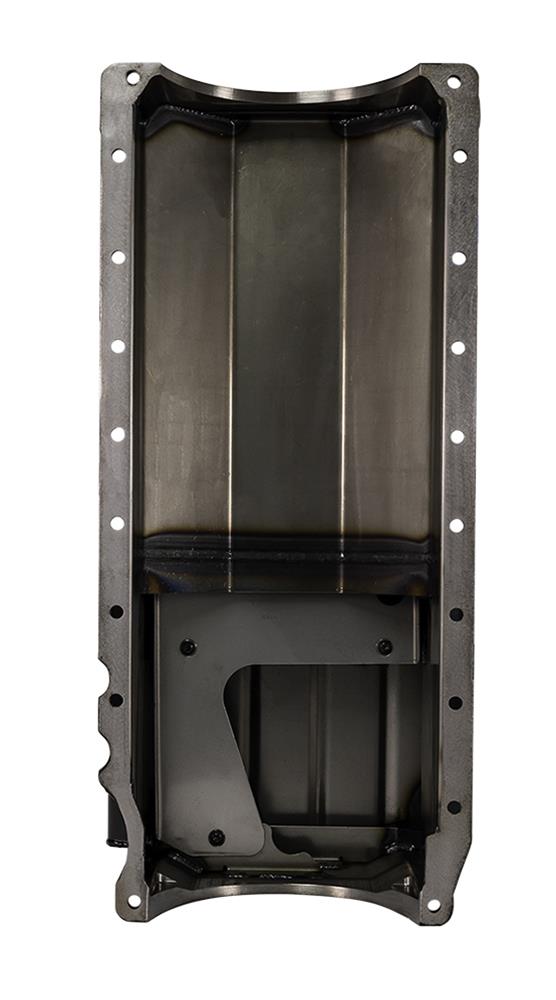

Moroso Chevrolet Big Block Gen 5/6/GM A Body Kicked Out Wet Sump 6qt 8in Steel Oil Pan
Moroso Chevrolet Big Block Gen 5/6/GM A Body Kicked Out Wet Sump 6qt 8in Steel Oil Pan
Sale ends in Calculating...
A$994.41 A$1,017.49
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Designed for street performance machines that see occasional strip use, these Moroso oil pans are modified with deep or kicked-out sumps for increased capacity and oil control under hard acceleration. With a simple bolt-on installation into most production chassis, these Moroso street/strip oil pans are perfect for the weekend warrior.
Product Overview
Moroso Chevrolet Big Block Gen 5/6/GM A Body Kicked Out Wet Sump 6qt 8in Steel Oil Pan
Product Details
| Description: | Moroso Chevrolet Big Block Gen 5/6/GM A Body Kicked Out Wet Sump 6qt 8in Steel Oil Pan |
|---|---|
| Part Number: | mor20411 |
Part Type
BBC Mark V Drag Race Pan
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20411
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Street/Strip Oil Pans
- Product Attributes - UPC
- 084663204111
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 6.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.250 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 8.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Driver and passenger side
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits most GM Chassis. Oil pan requires a dipstick with 1/4 in. NPT fitting attachment. Will accommodate stock GM main cap mounted windage tray. This pan has a bolt hole omitted near oil filter due to increased stroke clearance. Best sealing results are achieved when using a one piece rubber gasket. Fits 4 bolt main caps including front and rear.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20411 |
| SFX Item ID | 4103376 |
| Supplier Item Code | 4103376 |
| Manufacturer SKU | 20411 |
| Manufacturer UPC | 84663204111 |
| Alternative References | 5/6/GM, 6qt, 8in |
