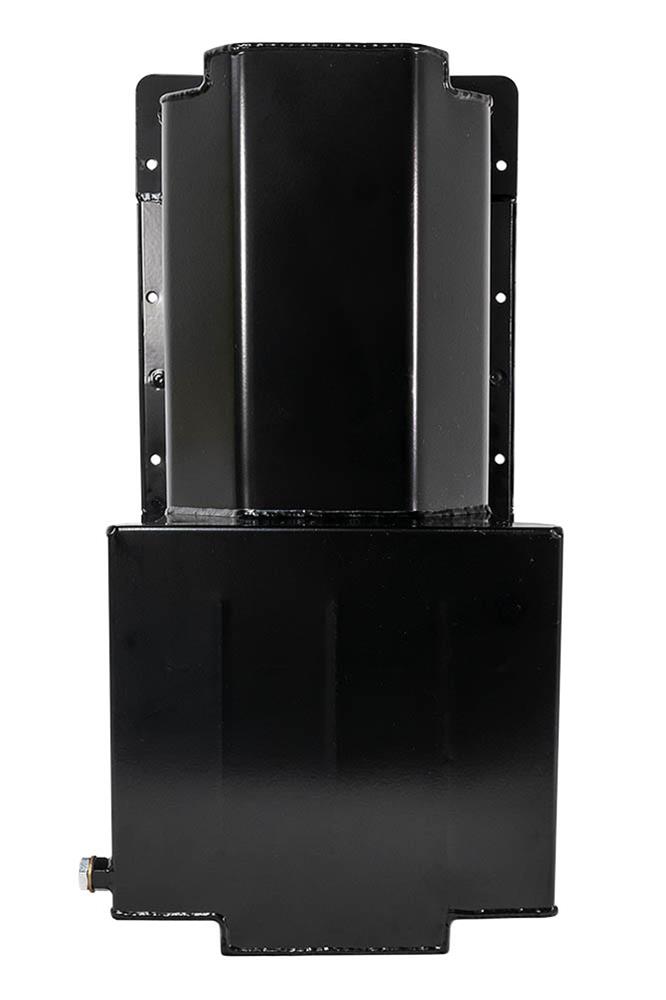

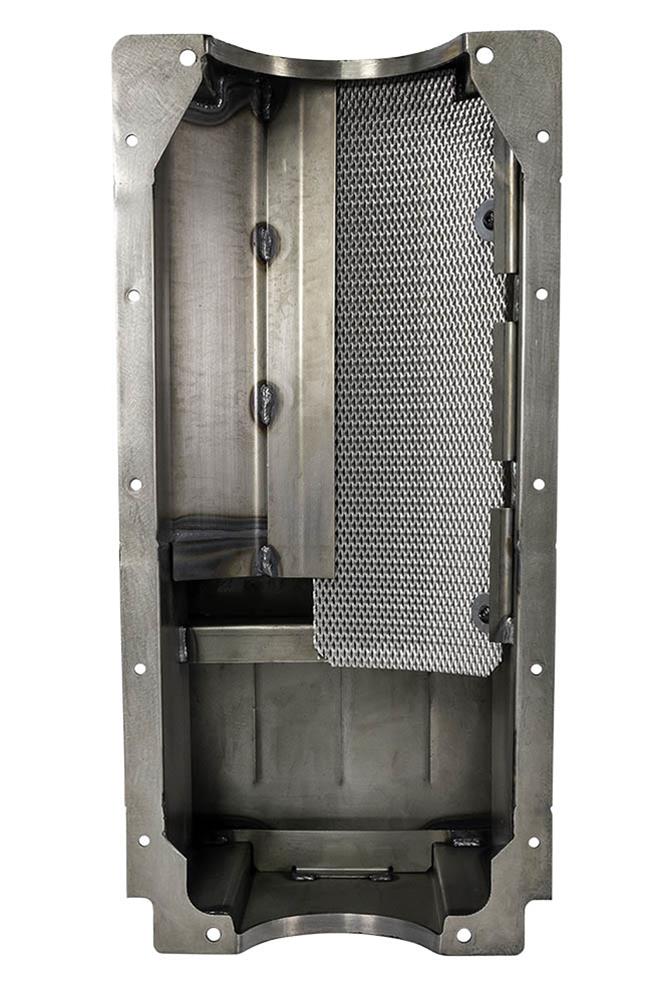

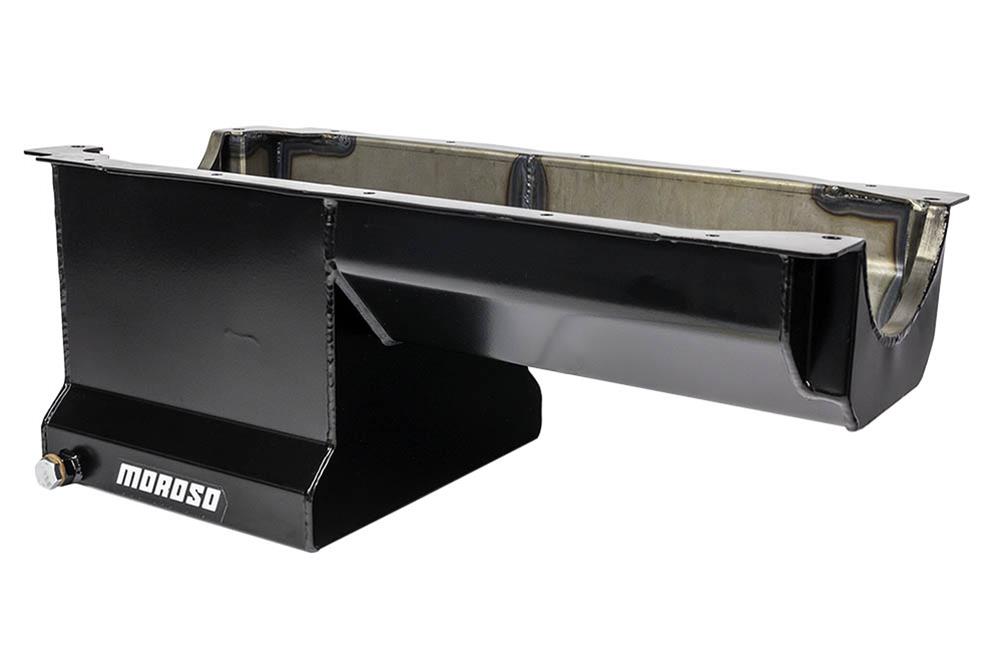

Moroso Dart/Rocket Small Block (May Require Cross-Member Mod) Wet Sump 7qt 8.25in Steel Oil Pan
Moroso Dart/Rocket Small Block (May Require Cross-Member Mod) Wet Sump 7qt 8.25in Steel Oil Pan
A$1,185.80
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Designed for street performance machines that see occasional strip use, these Moroso oil pans are modified with deep or kicked-out sumps for increased capacity and oil control under hard acceleration. With a simple bolt-on installation into most production chassis, these Moroso street/strip oil pans are perfect for the weekend warrior.
Product Overview
Moroso Dart/Rocket Small Block (May Require Cross-Member Mod) Wet Sump 7qt 8.25in Steel Oil Pan
Product Details
| Description: | Moroso Dart/Rocket Small Block (May Require Cross-Member Mod) Wet Sump 7qt 8.25in Steel Oil Pan |
|---|---|
| Part Number: | mor20193 |
Part Type
SBC Street/Strip Oil Pan Fits Rocket Block
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20193
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Street/Strip Oil Pans
- Product Attributes - UPC
- 084663201936
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Rear Main Seal Style
- 2-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No

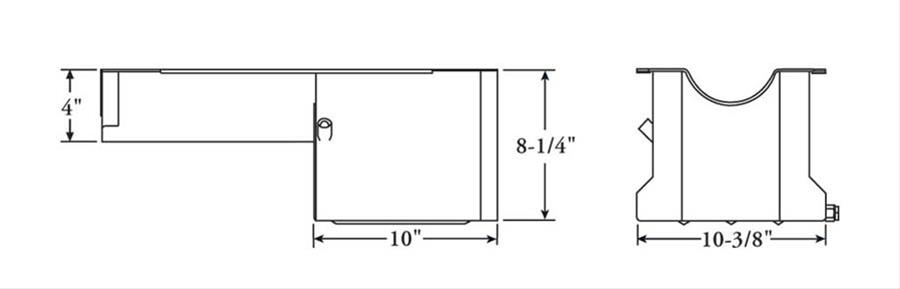

- Product Attributes - Oil Pan Depth (in.)
- 8.250
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Driver and passenger side
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- Yes
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- 1/4 in. NPT threaded dipstick mount. Dart and Rocket engines with pan rails spread .400 in. wider than stock GM. May requires cross member modification.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20193 |
| SFX Item ID | 4103357 |
| Supplier Item Code | 4103357 |
| Manufacturer SKU | 20193 |
| Manufacturer UPC | 84663201936 |
| Alternative References | 7qt, 8.25in |
