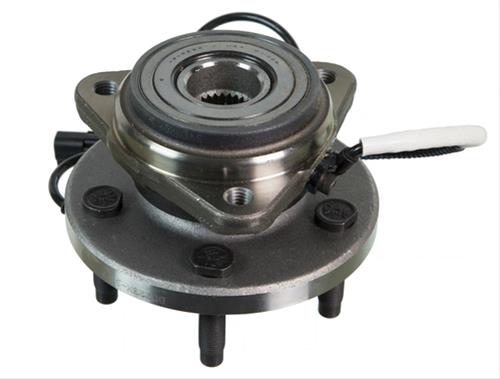

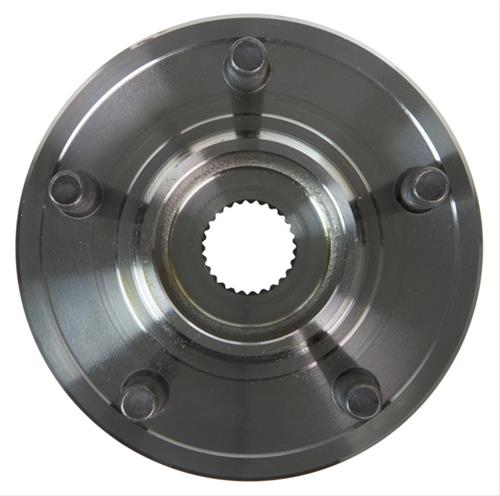

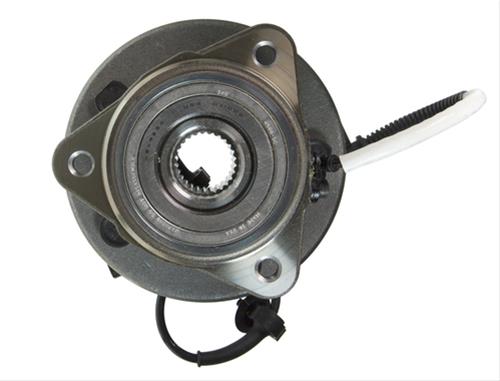

MOOG 09-11 Ford Ranger Front Hub Assembly

SKU: MOH515129

Wheel Bearing and Hub Assemblies

MOH Hub Assemblies...

Moog

MOOG 09-11 Ford Ranger Front Hub Assembly

SKU: MOH515129

Wheel Bearing and Hub Assemblies

MOH Hub Assemblies...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Product Overview

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Features and Benefits

EXTENDED SERVICE LIFE -- Application-specific advanced raceway design reduces stress, rotation and heat on components
EASY TO INSTALL -- Engineered and designed for fast, hassle-free installation
CORROSION PROTECTION -- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
DAMAGE RESISTANCE -- Abrasion-resistant ABS cord resists damage, contamination and vibration that may lead to premature wear

Product Details

Anti Lock Brake Sensor Included:	Yes
Bolt Circle Diameter:	4.500
Brake Pilot Diameter:	71.800
Description:	Front Wheel Bearing and Hub Assembly
Flange Bolt Hole Quantity:	3
Flange Diameter:	149.400
Flange Offset:	55.800
Flange Shape:	TRIANGLE
Hub Pilot Diameter:	100.000
Part Number:	moh515129
Spline Quantity:	27
Wheel Pilot Diameter:	70.400
Wheel Stud Quantity:	5

Application Summary

2003-2010 Mazda B4000 (Front)

Part Type

Wheel Bearing and Hub Assemblies

Data: v4.2 - Upd: 2026-10-13 18:20:50

Features

CORROSION PROTECTION -- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
DAMAGE RESISTANCE -- Abrasion-resistant ABS cord resists damage, contamination and vibration that may lead to premature wear
EASY TO INSTALL -- Engineered and designed for fast, hassle-free installation
EXTENDED SERVICE LIFE -- Application-specific advanced raceway design reduces stress, rotation and heat on components
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

Product Attributes - Brand: Moog Chassis Parts
Product Attributes - Manufacturer's Part Number: 515129
Product Attributes - Part Type: Wheel Bearing and Hub Assemblies
Product Attributes - Product Line: Moog Wheel Bearing and Hub Assemblies
Product Attributes - UPC: 00019826209993
Product Attributes - Wheel Hub Material: Steel
Product Attributes - Wheel Hub Finish: Natural
Product Attributes - Wheel Studs Included: Yes
Product Attributes - Mounting Hardware Included: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Moog
StreetFX SKU	moh515129
SFX Item ID	4038687
Supplier Item Code	4038687
Manufacturer SKU	515129
Manufacturer UPC	19826209993
Alternative References	MOG-515129
