MeLeod 4400 Series Truck Pull
MeLeod 4400 Series Truck Pull
A$4,931.16
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

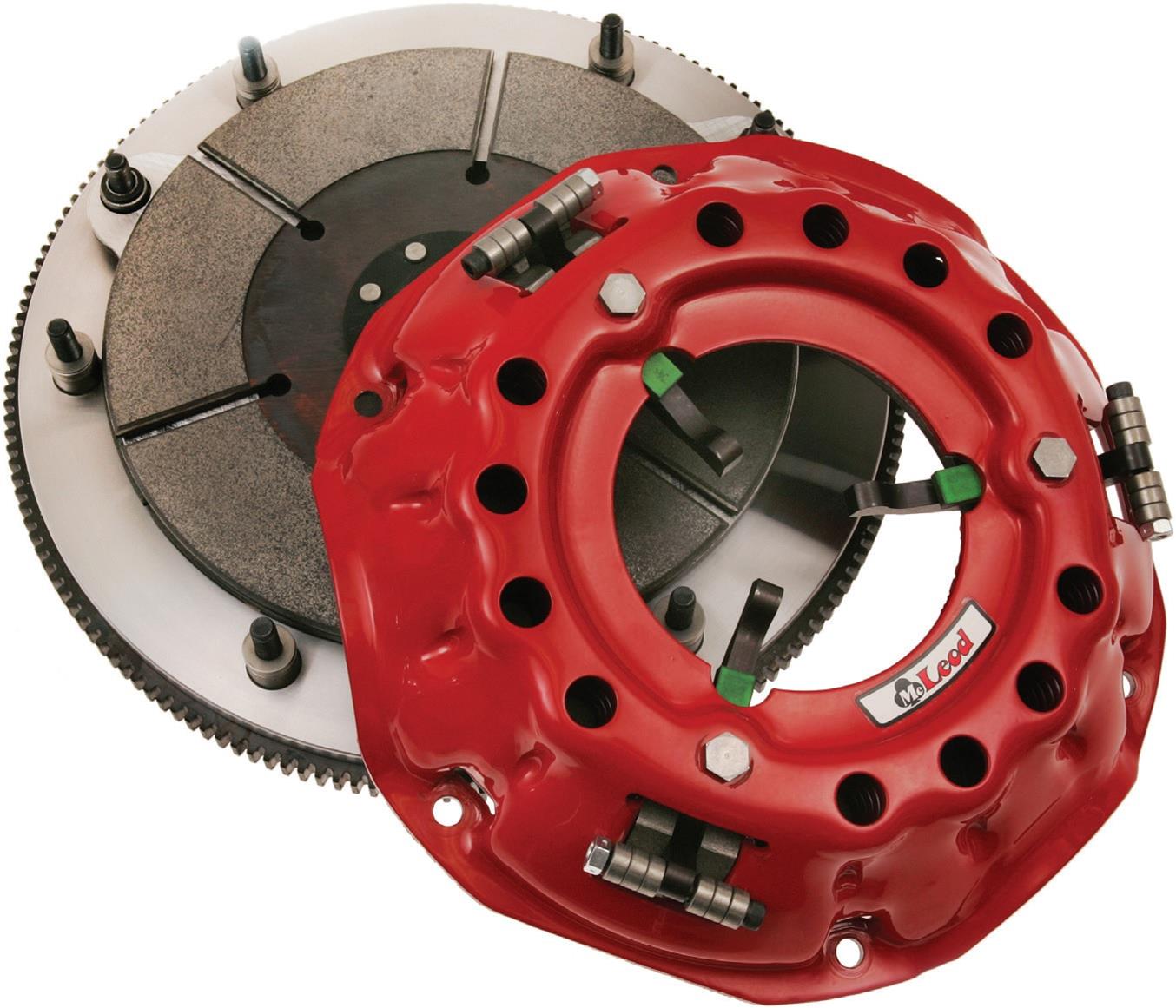

The 4400 Series clutch system from McLeod is ideal for Truck Pulling and high horsepower sand drag applications. Recommended for non-shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly, unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
Application Summary
Universal
Part Type
Transmission Clutch and Flywheel Kit
Features
- • Borg & Beck long style pressure plate w/counterweights. • High RPM lock-up capacity. • Sintered iron discs. • Steel Flywheel Included.
Specifications
- Product Attributes - Brand
- McLeod Racing
- Product Attributes - Manufacturer's Part Number
- 4402-04
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- McLeod 4400 Series Truck Pull Clutch Kits
- Product Attributes - UPC
- 00887753893314
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 2
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 10
- Product Attributes - Input Shaft Diameter
- 1.125 in.
- Product Attributes - Disc Diameter (in.)
- 10.500 in.
- Product Attributes - Disc Diameter (mm)
- 267mm
- Product Attributes - Disc Material
- Sintered iron
- Product Attributes - Disc Style
- Full face
- Product Attributes - Hub Style
- Solid
- Product Attributes - Pressure Plate Style
- Borg & Beck Long
- Product Attributes - Throwout Bearing Included
- No
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- No
- Product Attributes - Flywheel Material
- Billet steel
- Product Attributes - Ring Gear Tooth Quantity
- 168-tooth
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Counterweight Assist
- Yes
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- MCL-560222 counterbalance weight kit sold separately.
Reference Information
| Brand Name/s | Mcleod Racing |
|---|---|
| StreetFX SKU | mlr4402-04 |
| SFX Item ID | 4098920 |
| Supplier Item Code | 4098920 |
| Manufacturer SKU | 4402-04 |
| Manufacturer UPC | N/A |
| Alternative References | MCL-4402-04 |
