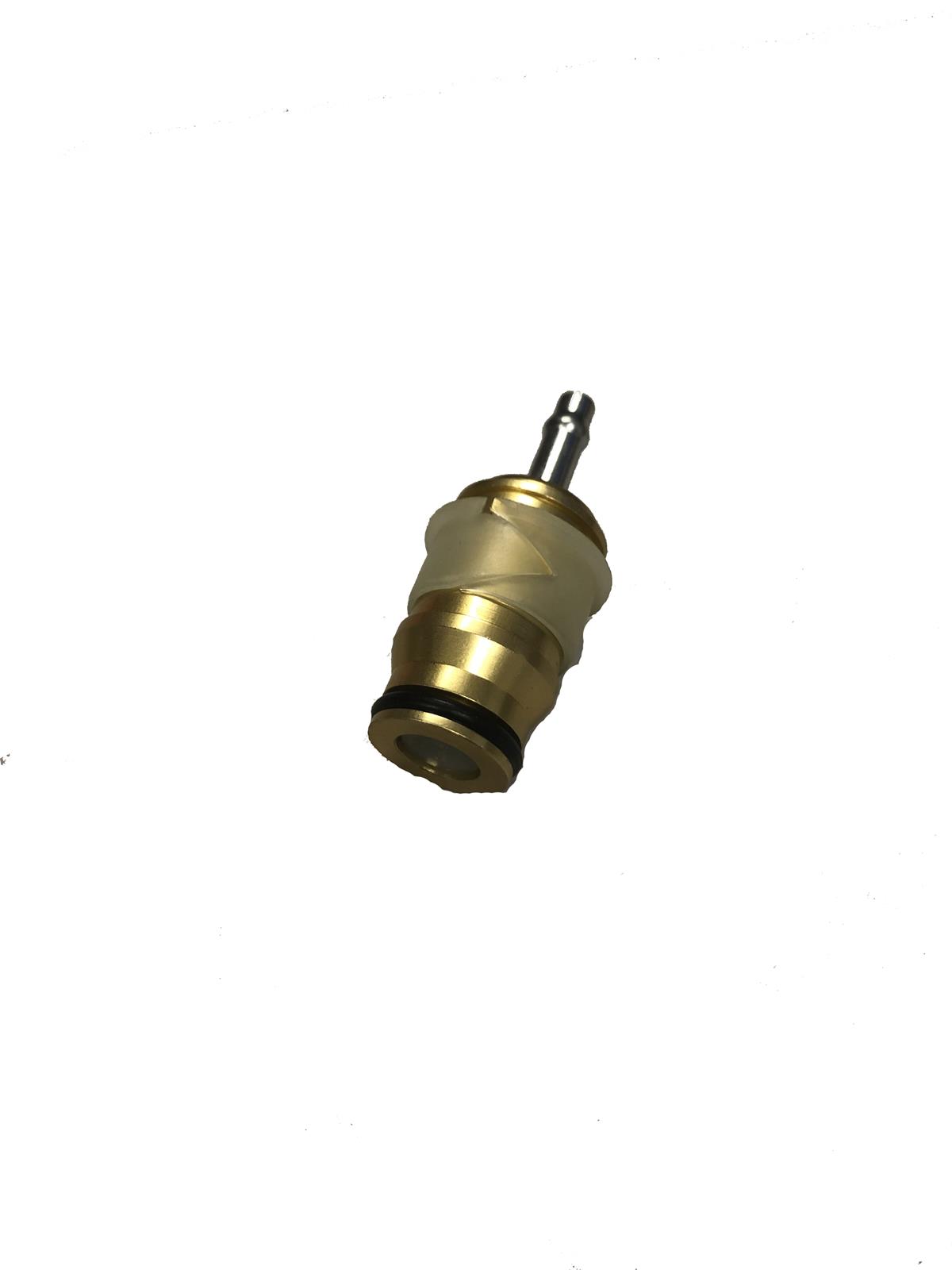

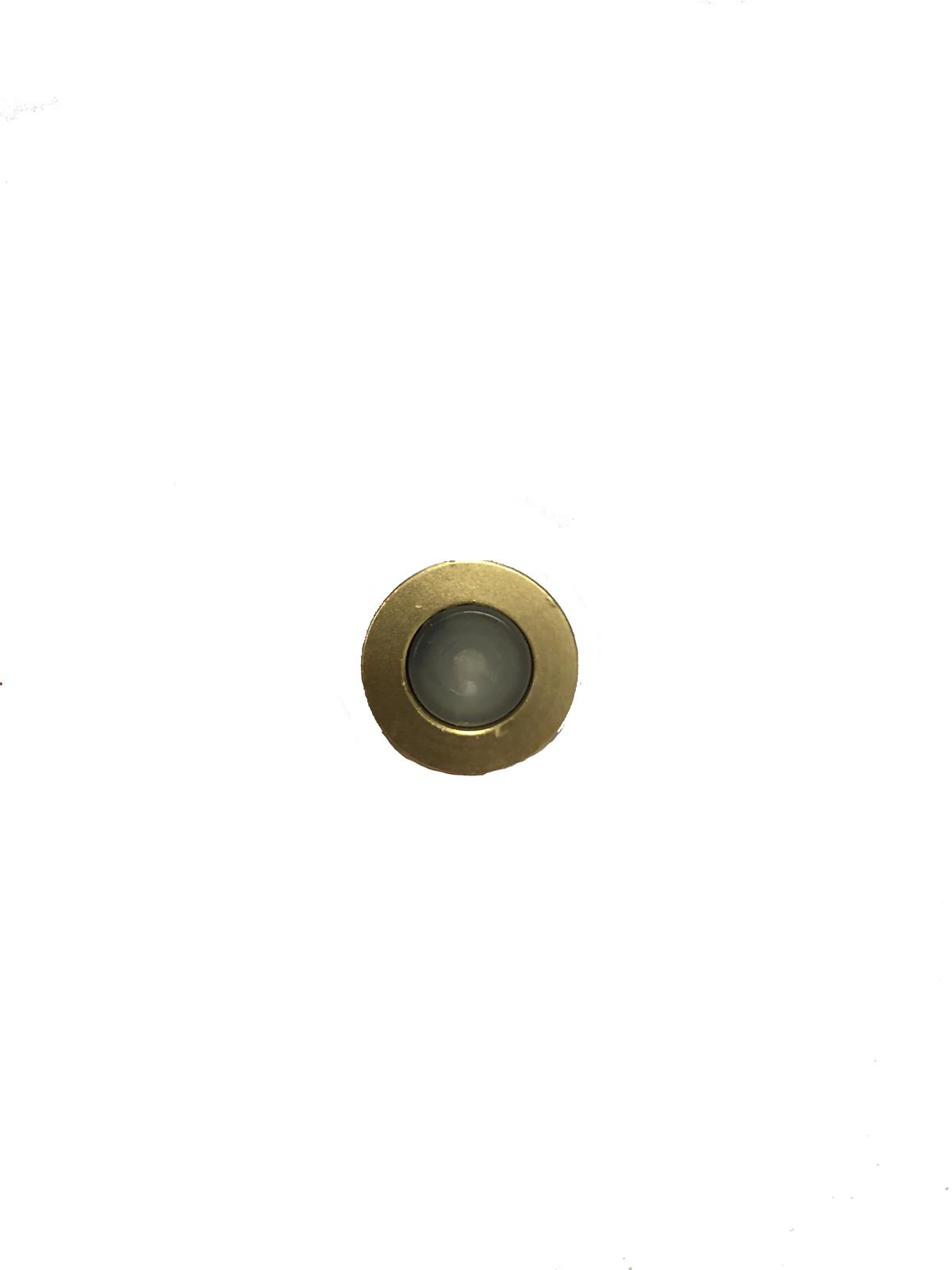

McLeod Qwik Disconnect Male End No Line
McLeod Qwik Disconnect Male End No Line
A$140.00
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

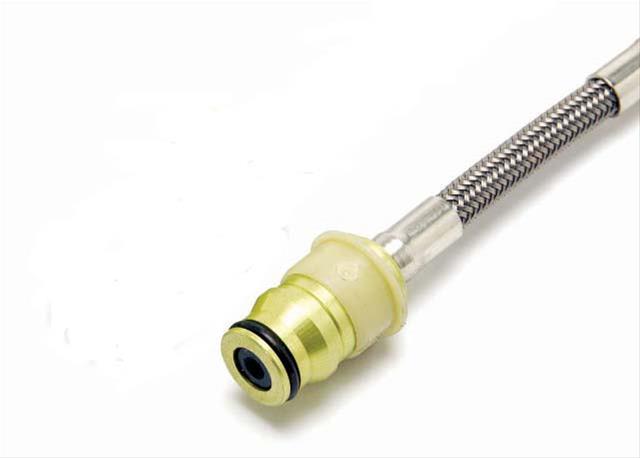

These Quick Disconnect fittings makes installation of a hydraulic system easier. These are fittings only with a barb on the end to have a AN-3 or AN-4 stainless steel braided line crimped on the end of the barb fitting.
Application Summary
Pontiac: Firebird 98 - 02 5.7 L Engine, Chevrolet: Camaro 98 - 02 5.7 L Engine, Dodge: Viper 92 - 02 8 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine
Part Type
Clutch Hydraulic Hose Connector
Features
- Mcleod Racing offers an asortment of connections and fittings to get your hydraulic linkage done right the first time.
Specifications
- Product Attributes - Brand
- McLeod Racing
- Product Attributes - Manufacturer's Part Number
- 139202
- Product Attributes - Part Type
- Quick Disconnect Fittings
- Product Attributes - Product Line
- McLeod Quick-Disconnect Fittings
- Product Attributes - UPC
- 887753016454
- Product Attributes - Fitting Style
- Quick-disconnect
- Product Attributes - Quick-Disconnect End Style
- Male
- Product Attributes - Adapter Size
- -4 AN O-ring
- Product Attributes - Adapter Attachment
- Crimp collar
- Product Attributes - Fitting Angle
- Straight
- Product Attributes - Swivel
- No
- Product Attributes - Fitting Material
- Brass
- Product Attributes - Fitting Color
- Natural
- Product Attributes - Valved
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This is a fitting only and is designed to be crimped on a -4AN hose using a special hose crimper. It is designed to fit GM slave cylinders produced between 1997-2004 in various GM vehicles.
Reference Information
| Brand Name/s | Mcleod Racing |
|---|---|
| StreetFX SKU | mlr139202 |
| SFX Item ID | 4098796 |
| Supplier Item Code | 4098796 |
| Manufacturer SKU | 139202 |
| Manufacturer UPC | 887753016454 |
| Alternative References | MCL-139202 |
Brochures
Compatibility
Pontiac: Firebird 98 - 02 5.7 L Engine, Chevrolet: Camaro 98 - 02 5.7 L Engine, Dodge: Viper 92 - 02 8 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine
