Description

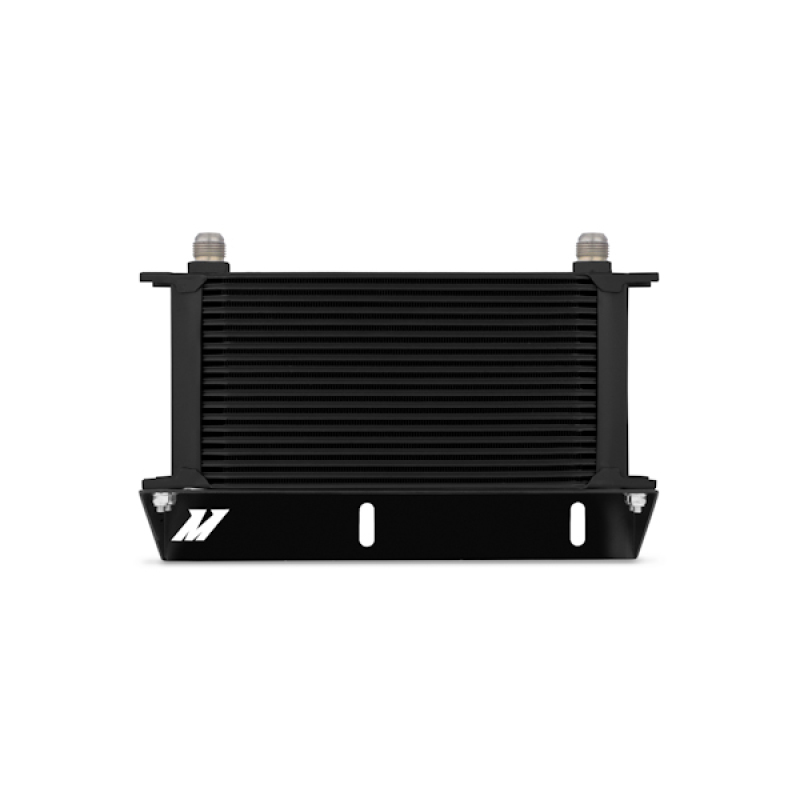

The Fox Body Mustang is well known for its lightweight chassis and powerful drive train.High-powered NA, turbocharged, and supercharged vehicles produce an abundance of unwanted heat under the hood, which accelerates oil breakdown and engine wear.Protect and enhance your Mustang with the Mishimoto direct-fit oil cooler kit.This kit features a large 19-row oil cooler that mounts in the front bumper for maximum airflow and cooling efficiency.The Mishimoto Mustang oil cooler kit can be installed in less than two hours and adds more than .5 qt to your total oil capacity.This kit includes a mounting bracket engineered specifically for the Fox Body, preassembled lines, fittings, oil sandwich plate, and all hardware necessary for a clean installation.The Mishimoto oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.

Product Overview

Features and Benefits

Dramatic temperature drop
Minimal pressure loss
Installs in under an hour
Direct fit for the Fox Body Mustang
Thermostatic option available
Stealth Black and Sleek Silver cooler options
Easily replaceable thermostat allows you to customize your fluid temperature
Additional thermostats available in 160Â°F, 185Â°F, and 200Â°F
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMOCMUS79TBK
Color:	Black
Description:	Ford Mustang 5.0L Thermostatic Oil Cooler Kit, Black
Install Difficulty:	2
Material:	Aluminum
OptionLabel:	Black Cooler, Thermostatic
Part Number:	misMMOC-MUS-79TBK
SellingPoint01:	Dramatic temperature drop
SellingPoint02:	Minimal pressure loss
SellingPoint03:	Installs in under an hour
SellingPoint04:	Direct fit for the Fox Body Mustang
SellingPoint05:	Thermostatic option available
SellingPoint06:	Stealth Black and Sleek Silver cooler options
SellingPoint07:	Mishimoto Lifetime Warranty
SellingPoint08:	N/A
SellingPoint09:	N/A
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
TechSpec Applications:	N/A
TechSpec Caution:	It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Chassis Codes:	Fox
TechSpec Core Construction:	N/A
TechSpec Core Height (in):	5.43
TechSpec Core Length (in):	11
TechSpec Core Thickness (in):	1.97
TechSpec Engine Codes:	302 ci / 4.9L
TechSpec Fluid Capacity (qts):	N/A

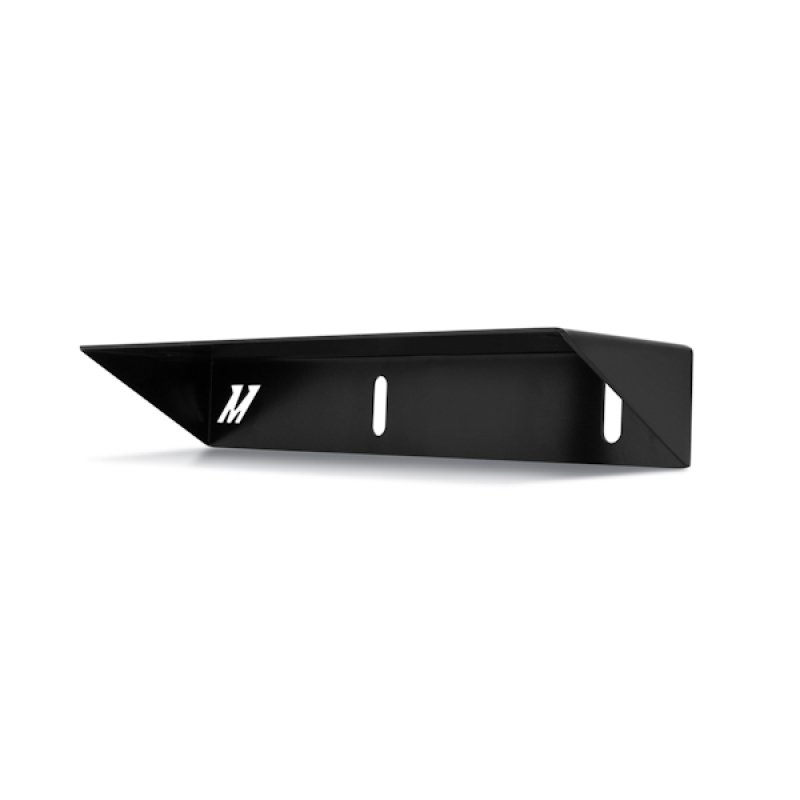

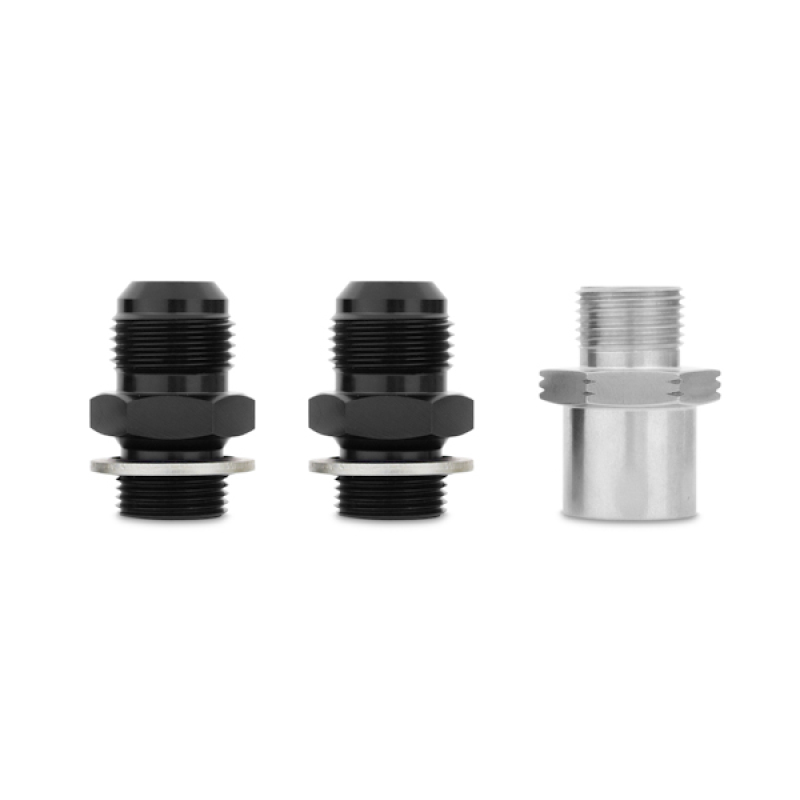

TechSpec Includes:	Application Specific Mounting Bracket--19-Row Oil Cooler--3ft, 5in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings--4ft, 1in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings--M20 Thermostatic Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Inlet:	N/A
TechSpec Installation Notes:	Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note:	N/A
TechSpec Outlet:	N/A
TechSpec Overall Height (in):	N/A
TechSpec Overall Length (in):	N/A
TechSpec Overall Width (in):	N/A
TechSpec Rows:	19

Application Summary

1979 Ford Mustang 5.0 Liter 78ET-BA, 1982 Ford Mustang 5.0 Liter 82ET-SA, 1984-1986 Ford Mustang 5.0 Liter 83ET-AGA, 1987-1993 Ford Mustang 5.0 Liter A4LD, 1984-1993 Ford Mustang 5.0 Liter AOD, 1982 Ford Mustang 5.0 Liter C3, 1984-1986 Ford Mustang 5.0 Liter C3, 1979 Ford Mustang 5.0 Liter C4, 1982-1986 Ford Mustang 5.0 Liter C5, 1979 Ford Mustang 5.0 Liter RAD-AA, 1982 Ford Mustang 5.0 Liter RAD-AJ, 1979 Ford Mustang 5.0 Liter RAD-C5, 1979 Ford Mustang 5.0 Liter RAD-Y, 1982 Ford Mustang 5.0 Liter RAP-AB, 1982 Ford Mustang 5.0 Liter RAP-AG, 1982 Ford Mustang 5.0 Liter RAP-AP, 1982 Ford Mustang 5.0 Liter RAP-AR, 1984 Ford Mustang 5.0 Liter REP-AA, 1983 Ford Mustang 5.0 Liter REP-AB, 1984 Ford Mustang 5.0 Liter REP-AC, 1984 Ford Mustang 5.0 Liter REP-AF, 1979 Ford Mustang 5.0 Liter RUG-DA, 1982-1983 Ford Mustang 5.0 Liter RUG-EM, 1985-1993 Ford Mustang 5.0 Liter T5

Part Type

Engine Oil Cooler

Data: v4.2 - Upd: 2026-10-15 08:17:33

Features

Dramatic temperature drop
Installs in under an hour
Minimal pressure loss

Specifications

Product Attributes - UPC: 748666008717
Product Attributes - Brand: Mishimoto
Product Attributes - Notes: Includes mounting brackets, stainless steel braided hoses, thermostatically controlled oil filter sandwich plate, banjo fitting and mounting hardware.
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Part Type: Fluid Coolers
Product Attributes - Cooler Color: Black anodized
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Oil Cooler Kits
Product Attributes - Cooler Material: Aluminum
Product Attributes - Core Width (in.): 11.00 in.
Product Attributes - Inlet Attachment: Male threads
Product Attributes - Core Height (in.): 5.43 in.
Product Attributes - Fluid Cooler Type: Engine oil
Product Attributes - Outlet Attachment: Male threads
Product Attributes - Cooler Construction: Heat sink
Product Attributes - Overall Width (in.): 12.95 in.
Product Attributes - Core Thickness (in.): 1.97 in.
Product Attributes - Overall Height (in.): 6.44 in.
Product Attributes - Number of Cooling Rows: 19
Product Attributes - Fluid Cooler Inlet Size: -10 AN
Product Attributes - Overall Thickness (in.): 1.97
Product Attributes - Fluid Cooler Outlet Size: -10 AN
Product Attributes - Manufacturer's Part Number: MMOC-MUS-79TBK

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMOC-MUS-79TBK
SFX Item ID	4049573
Supplier Item Code	4049573
Manufacturer SKU	MMOC-MUS-79TBK
Manufacturer UPC	748666008717
Alternative References	mio-mmocmus79tbk, MIMMMOC-MUS-79TBK, 5.0L
