Mishimoto 04-06 Pontiac GTO 5.7L/6.0L Thermostatic Oil Cooler Kit - Silver
Mishimoto 04-06 Pontiac GTO 5.7L/6.0L Thermostatic Oil Cooler Kit - Silver
Sale ends in Calculating...
A$1,883.04 A$2,281.44
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
LS series engines are simple, powerful, reliable machines, but no engine can deal with high oil temperatures. To cool the GTO's massive engine, we picked our largest oil cooler for the job. The 25-row stacked-plate cooler will have no problem making sure oil is at an optimal temperature. On the other end of this GTO oil cooler kit is a specially designed oil line adapter that bolts to the oil filter housing to allow for the attachment of our --AN stainless steel lines. The tight space restrictions eliminated the possibility of using a thermostatic sandwich plate, which we use on most of our other direct-fit oil cooler kits. Instead our In-line Oil Thermostat is used to regulate oil temperatures. This meticulously designed thermostat mounts under the headlight by means of its own direct-fit bracket, and will make sure your oil stays at a happy 185 F. During the testing process of this GTO oil cooler, the in-line thermostat was not used in order to eliminate it as a regulating variable. This means oil is constantly flowing through the cooler during testing, and these tests showed a 65 F oil temperature drop. This massive drop shows the cooling capabilities of this GTO oil cooler kit. Just like all of Mishimoto's GTO parts, this kit comes with the Mishimoto Lifetime Warranty to make sure your oil temperatures are always on point.
Product Overview
LS series engines are simple, powerful, reliable machines, but no engine can deal with high oil temperatures. To cool the GTO's massive engine, we picked our largest oil cooler for the job. The 25-row stacked-plate cooler will have no problem making sure oil is at an optimal temperature. On the other end of this GTO oil cooler kit is a specially designed oil line adapter that bolts to the oil filter housing to allow for the attachment of our --AN stainless steel lines. The tight space restrictions eliminated the possibility of using a thermostatic sandwich plate, which we use on most of our other direct-fit oil cooler kits. Instead our In-line Oil Thermostat is used to regulate oil temperatures. This meticulously designed thermostat mounts under the headlight by means of its own direct-fit bracket, and will make sure your oil stays at a happy 185 F. During the testing process of this GTO oil cooler, the in-line thermostat was not used in order to eliminate it as a regulating variable. This means oil is constantly flowing through the cooler during testing, and these tests showed a 65 F oil temperature drop. This massive drop shows the cooling capabilities of this GTO oil cooler kit. Just like all of Mishimoto's GTO parts, this kit comes with the Mishimoto Lifetime Warranty to make sure your oil temperatures are always on point.
Features and Benefits
- Direct fit for the 2004-2006 Pontiac GTO
- Reduces oil temperatures by 65 F (without in-line thermostat installed)
- Mishimoto In-Line Oil Thermostat maintains optimum 185 oil temperature
- Minimal pressure drop
- Application-specific mounting brackets
Product Details
| Alternate Part Number: | MMOC-GTO-04T |
|---|---|
| Color: | Silver |
| Description: | Pontiac GTO Thermostatic Oil Cooler Kit |
| Feature Bullet 1: | Direct fit for the 2004-2006 Pontiac GTO |
| Feature Bullet 2: | Reduces oil temperatures by 65 F (without in-line thermostat installed) |
| Feature Bullet 3: | Mishimoto In-Line Oil Thermostat maintains optimum 185 oil temperature |
| Feature Bullet 4: | Minimal pressure drop |
| Feature Bullet 5: | Application-specific mounting brackets |
| Finish: | Polished |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3/5 |
| Material: | Aluminum |
| OptionLabel: | Silver |
| Part Number: | misMMOC-GTO-04T |
| SellingPoint01: | Direct fit for the 2004-2006 Pontiac GTO |
| SellingPoint02: | Reduces oil temperatures by 65F (without in-line thermostat installed) |
| SellingPoint03: | Mishimoto In-Line Oil Thermostat maintains optimum 185F oil temperature |
| SellingPoint04: | Minimal pressure drop |
| SellingPoint05: | Application-specific mounting brackets |

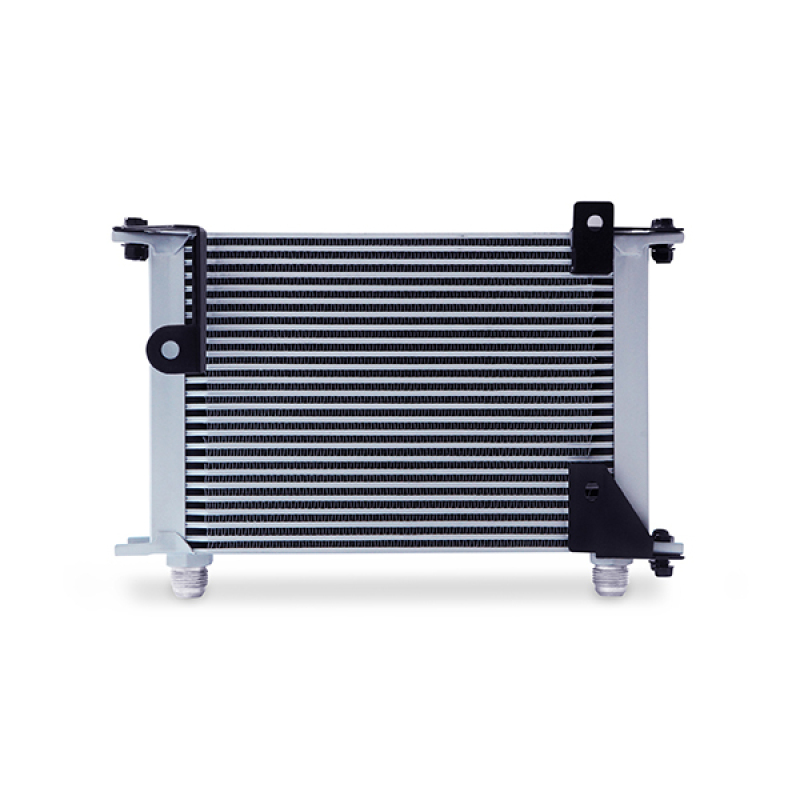

| SellingPoint06: | 25-row stacked-plate oil cooler mounted in upper kidney grille for optimum airflow |
| SellingPoint07: | Includes CNC-machined application-specific oil adapter |
| SellingPoint08: | Pre-made stainless steel braided oil lines with durable -AN fittings |
| SellingPoint09: | Cooler available in either Sleek Silver or Stealth Black |
| SellingPoint10: | Increases oil capacity by 1.0 qt |
| SellingPoint11: | Mishimoto Lifetime Warranty |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | 2001-2005 Holden Monaro (V2 VC8 & VZ)--1999-2006 Holden Commodore (VT, VX, VY & VZ)--1999-2006 Holden Commodore Ute--1999-2006 Holden Statesman (WH, WK, WL)--1999-2006 Holden Caprice (WH, WK, WL)--2001-2006 Vauxhall Monaro |
| TechSpec Caution: | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Chassis Codes: | V-Body |
| TechSpec Core Construction: | N/A |
| TechSpec Core Height (in): | 7.32 |
| TechSpec Core Length (in): | 11 |
| TechSpec Core Thickness (in): | 1.97 |
| TechSpec Engine Codes: | LS-1--LS-2 |
| TechSpec Fluid Capacity (qts): | N/A |

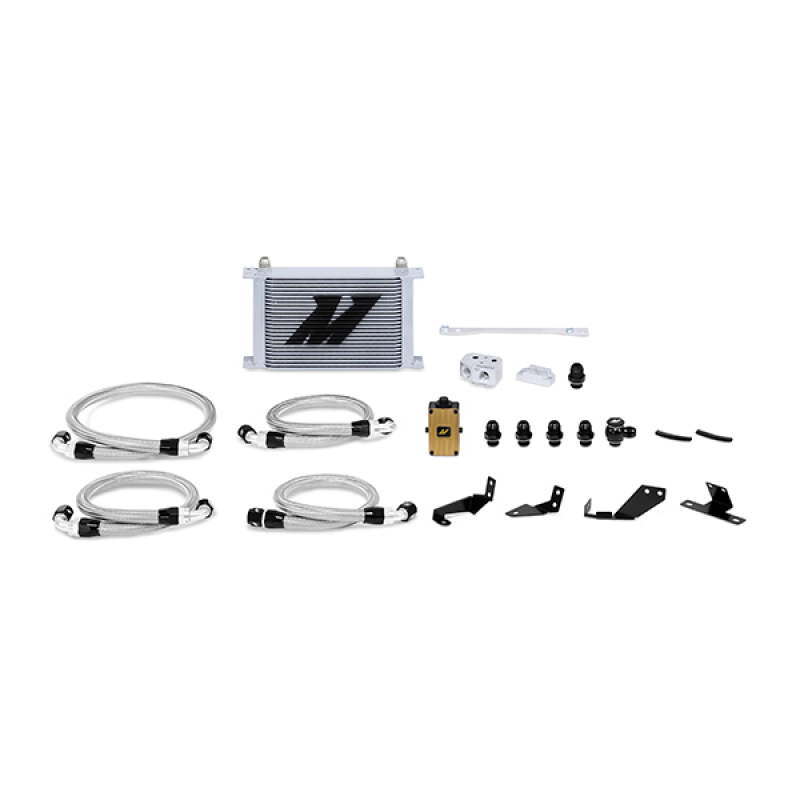

| TechSpec Includes: | Application-Specific Mounting Brackets--25-Row Oil Cooler--Mishimoto In-Line Oil Thermostat--In-Line Oil Thermostat Mounting Bracket--Mishimoto LS1/LS2 Oil Cooler Adapter--2-ft, 1-in Stainless Steel Braided Hose w/ 45 and Straight -10AN Fittings--2-ft, 2-in Stainless Steel Braided Hose w/ 90 -10AN Fittings--2-ft, 2.5-in Stainless Steel Braided Hose w/ 45 & 120 -10AN Fittings--3-ft, Stainless Steel Braided Hose w/ 90 -10AN Fittings--Banjo Fitting w/ Bolt M20 x -10AN, Black--M20 x -10AN Straight F |
| TechSpec Inlet: | N/A |
| TechSpec Installation Notes: | Torque adapter bolts to between 108 in-lbs and 120 in-lbsRecommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 lb-ft It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after insta |
| TechSpec Note: | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, please contact us. |
| TechSpec Outlet: | N/A |
| TechSpec Overall Height (in): | N/A |
| TechSpec Overall Length (in): | N/A |
| TechSpec Overall Width (in): | N/A |
| TechSpec Rows: | 25 |
Application Summary
2004 Pontiac GTO Base 5.7 Liter 4L60-E, 2004 Pontiac GTO Base 5.7 Liter T56, 2005-2006 Pontiac GTO Base 6.0 Liter 4L65-E, 2005-2006 Pontiac GTO Base 6.0 Liter T56
Part Type
Engine Oil Cooler
Features
- Minimal pressure drop
- Mishimoto In-Line Oil Thermostat maintains optimum 185F oil temperature
- Reduces oil temperatures by 65F (without in-line thermostat installed)
Specifications
- Product Attributes - UPC
- 748354027310
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Includes four stainless steel braided hoses, fittings, in-line oil thermostat and mounting brackets.
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Fluid Coolers
- Product Attributes - Cooler Color
- Natural
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Pontiac GTO Thermostatic Oil Cooler Kits
- Product Attributes - Cooler Material
- Aluminum
- Product Attributes - Core Width (in.)
- 11.00 in.
- Product Attributes - Inlet Attachment
- Male threads
- Product Attributes - Core Height (in.)
- 7.32 in.
- Product Attributes - Fluid Cooler Type
- Engine oil
- Product Attributes - Outlet Attachment
- Male threads
- Product Attributes - Cooler Construction
- Plate
- Product Attributes - Core Thickness (in.)
- 1.97 in.
- Product Attributes - Number of Cooling Rows
- 25
- Product Attributes - Fluid Cooler Inlet Size
- -10 AN
- Product Attributes - Fluid Cooler Outlet Size
- -10 AN
- Product Attributes - Manufacturer's Part Number
- MMOC-GTO-04T
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMOC-GTO-04T |
| SFX Item ID | 4049297 |
| Supplier Item Code | 4049297 |
| Manufacturer SKU | MMOC-GTO-04T |
| Manufacturer UPC | 748354027310 |
| Alternative References | mio-mmoc-gto-04t, MIMMMOC-GTO-04T, 5.7L/6.0L |
Compatibility
2004 Pontiac GTO Base 5.7 Liter 4L60-E, 2004 Pontiac GTO Base 5.7 Liter T56, 2005-2006 Pontiac GTO Base 6.0 Liter 4L65-E, 2005-2006 Pontiac GTO Base 6.0 Liter T56
