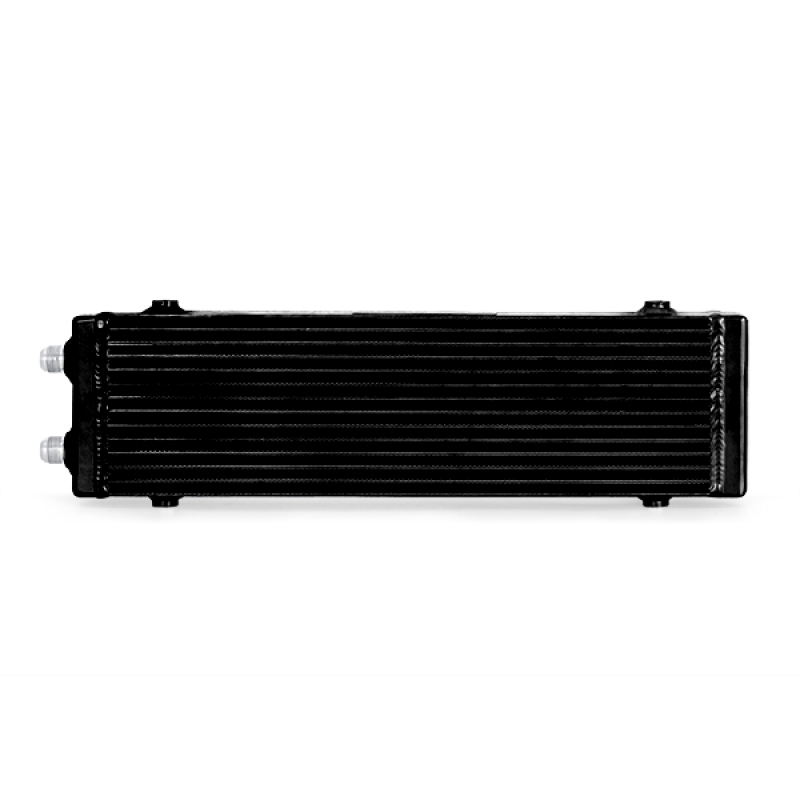

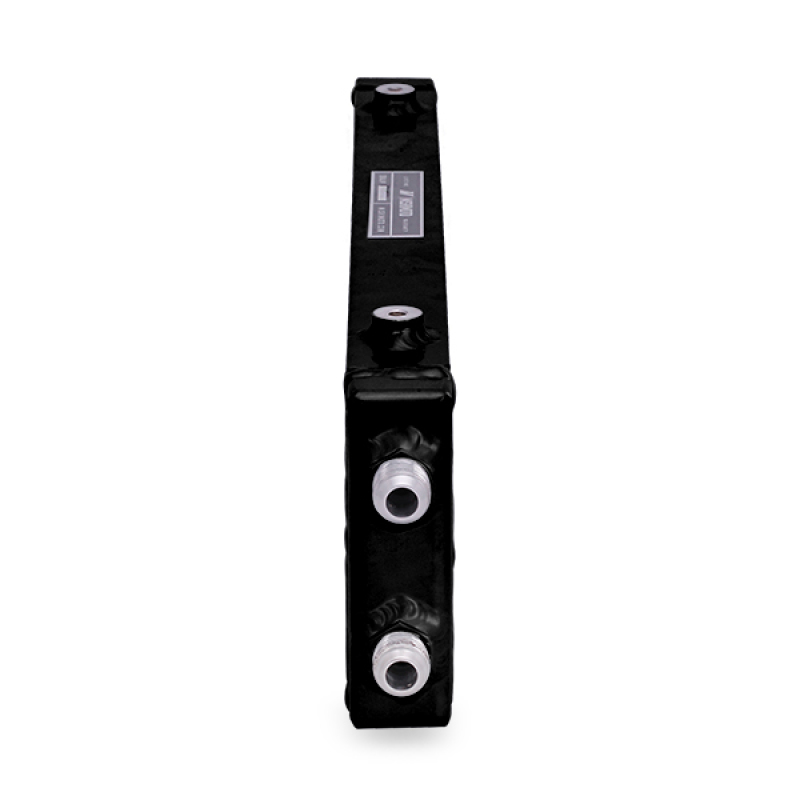

Mishimoto Universal Large Bar and Plate Dual Pass Black Oil Cooler

SKU: MISMMOC-DP-LBK

Fluid Coolers

MM Oil Cooler - Univ...

Mishimoto

Mishimoto Universal Large Bar and Plate Dual Pass Black Oil Cooler

SKU: MISMMOC-DP-LBK

Fluid Coolers

MM Oil Cooler - Univ...

Sale ends in Calculating... Fri 16 Oct, 2:08 am AEST

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

As anyone who's spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core ? oil enters one side, travels around the core, and exits again on the same side. Sized for maximum cooling power, Mishimoto's large dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.

Product Overview

As anyone who?s spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core ? oil enters one side, travels around the core, and exits again on the same side. Sized for maximum cooling power, Mishimoto?s large dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.

Features and Benefits

Durable Bar & Plate cooler design for use in custom applications
Dual Pass design for optimal fluid temperature reduction
M8x1.25 Welded bungs to use for attaching brackets
10AN fittings for attaching oil lines
100% aluminum construction with CNC end tanks
Reduces oil temperatures with minimal pressure loss
Increased oil system capacity for increased cooling capability
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMOC-DP-LBK
Color:	Black
Description:	Universal Dual Pass Bar & Plate Oil Cooler
Finish:	Powder-Coat
Install Difficulty:	N/A
Installation Difficulty:	3
Material:	Aluminum
OptionLabel:	Black
Part Number:	misMMOC-DP-LBK
SellingPoint01:	Durable Bar and Plate cooler design for use in custom applications
SellingPoint02:	Dual Pass design for optimal fluid temperature reduction
SellingPoint03:	M8x1.25 Welded bungs to use for attaching brackets
SellingPoint04:	10AN fittings for attaching oil lines
SellingPoint05:	100-percent aluminum construction with CNC end tanks
SellingPoint06:	Reduces oil temperatures with minimal pressure loss
SellingPoint07:	Increased oil system capacity for increased cooling capability
SellingPoint08:	Available in Sleek Silver or Stealth Black
SellingPoint09:	Mishimoto Lifetime Warranty
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Size:	Large
TechSpec Applications:	N/A
TechSpec Caution:	N/A
TechSpec Chassis Codes:	N/A
TechSpec Core Construction:	N/A
TechSpec Core Height (in):	5.51
TechSpec Core Length (in):	N/A
TechSpec Core Thickness (in):	1.57
TechSpec Engine Codes:	N/A
TechSpec Fluid Capacity (qts):	0.8
TechSpec Includes:	(1) Oil Cooler--Mishimoto Lifetime Warranty
TechSpec Inlet:	-10AN
TechSpec Installation Notes:	N/A
TechSpec Note:	For your taste, only one side of the silver oil coolers has the Mishimoto "M" Logo, the stealth black option does not have a logo
TechSpec Outlet:	-10AN
TechSpec Overall Height (in):	6.3
TechSpec Overall Length (in):	21.54
TechSpec Overall Width (in):	1.57
TechSpec Rows:	N/A

Application Summary

Universal Fitment

Part Type

Engine Oil Cooler

Data: v4.2 - Upd: 2026-10-15 00:36:32

Features

Dual Pass design for optimal fluid temperature reduction
Durable Bar and Plate cooler design for use in custom applications
M8x1.25 Welded bungs to use for attaching brackets

Specifications

Product Attributes - UPC: 748354030877
Product Attributes - Brand: Mishimoto
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Fluid Coolers
Product Attributes - Cooler Color: Black powdercoated
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Universal Dual-Pass Oil Coolers
Product Attributes - Cooler Material: Aluminum
Product Attributes - Core Width (in.): 18.50 in.
Product Attributes - Inlet Attachment: Male threads
Product Attributes - Core Height (in.): 5.50 in.
Product Attributes - Fluid Cooler Type: Universal
Product Attributes - Outlet Attachment: Male threads
Product Attributes - Cooler Construction: Plate
Product Attributes - Overall Width (in.): 21.54 in.
Product Attributes - Core Thickness (in.): 1.57 in.
Product Attributes - Overall Height (in.): 6.30 in.
Product Attributes - Fluid Cooler Inlet Size: -10 AN
Product Attributes - Overall Thickness (in.): 1.57
Product Attributes - Fluid Cooler Outlet Size: -10 AN
Product Attributes - Manufacturer's Part Number: MMOC-DP-LBK
