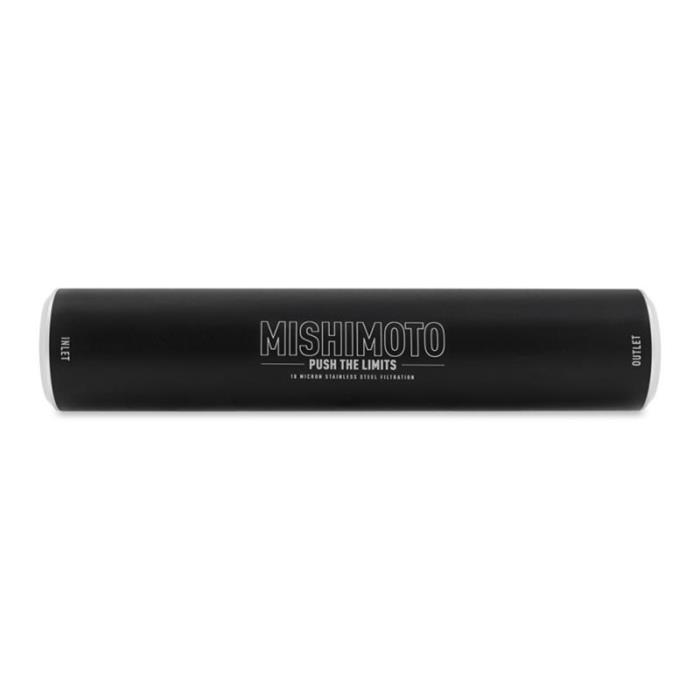

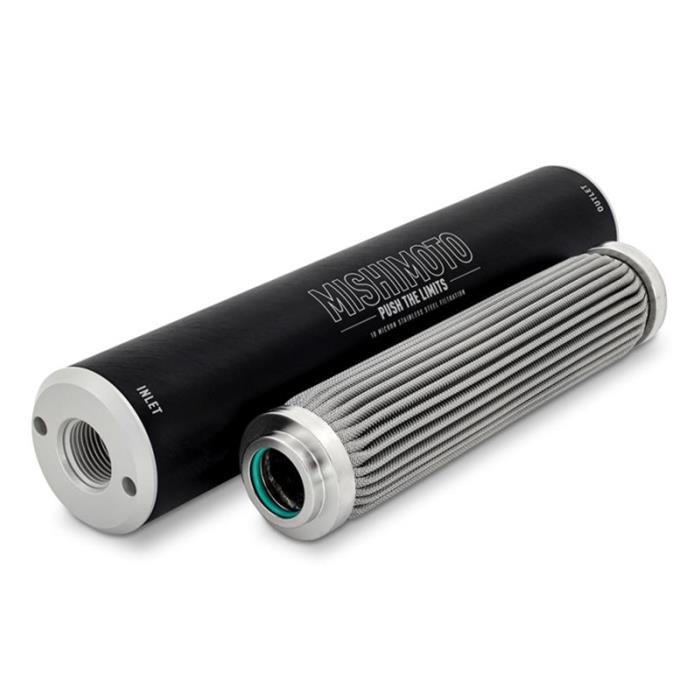

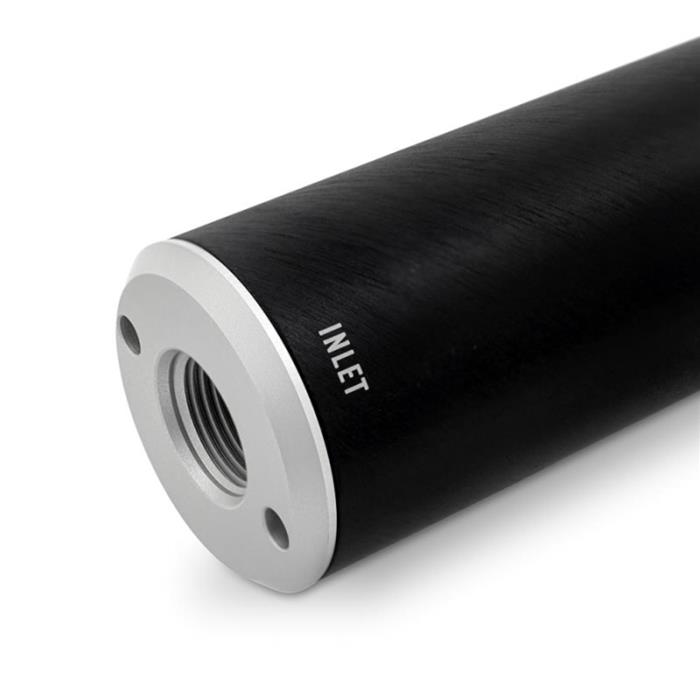

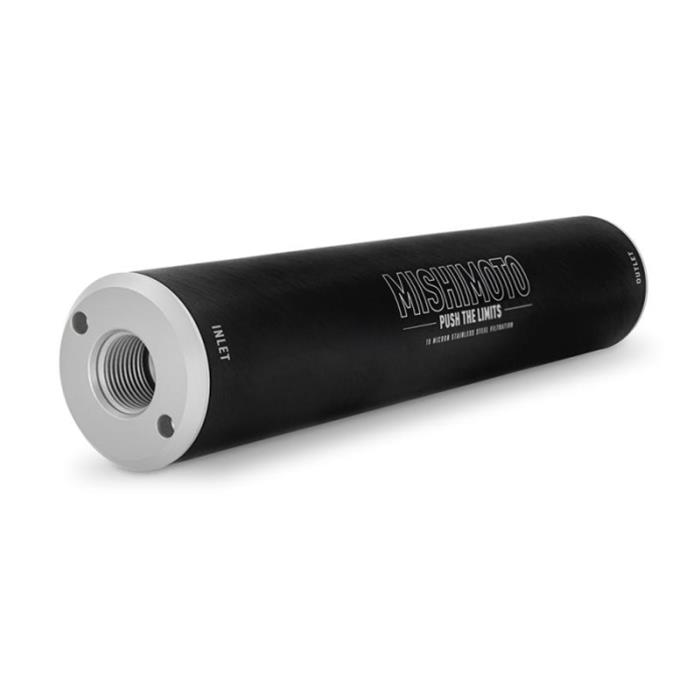

Home / Shop / Mishimoto 10 Microns Fuel Filter with -10 AN O-ring Inlet Size MMFF-HF-S010 Filter, High Flow, Aluminum, Black, Anodized, Serviceable, 10-Micron, Stainless Steel Element, ORB, Female Threads, Each

Mishimoto 10 Microns Fuel Filter with -10 AN O-ring Inlet Size MMFF-HF-S010 Filter, High Flow, Aluminum, Black, Anodized, Serviceable, 10-Micron, Stainless Steel Element, ORB, Female Threads, Each

SKU: MISMMFF-HF-S010

Fuel Filters

Mishimoto

Mishimoto 10 Microns Fuel Filter with -10 AN O-ring Inlet Size MMFF-HF-S010 Filter, High Flow, Aluminum, Black, Anodized, Serviceable, 10-Micron, Stainless Steel Element, ORB, Female Threads, Each

SKU: MISMMFF-HF-S010

Fuel Filters

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Building a high-performance vehicle is an expensive endeavor that requires meticulous planning of every square inch—and when horsepower is nearing the 4-digit mark, one oversight can cause catastrophic failure. Each vehicle system needs to be running at peak performance, but no other system can cause thousands of dollars of damage faster than fuel. An undersized or clogged fuel injector, pump, or filter can cause too little fuel flow to the engine, resulting in not only a loss of power, but also excessive heat. Even short periods of high cylinder temps can lead to detonation, melted pistons, or a seized engine and thousands of dollars in repairs. The best way to prevent fueling issues is to install the best quality components from tank to injector, and Mishimoto high performance fuel filters fit the bill. They utilize a slim extruded-aluminum body that measures just over 2 in. in diameter to save space and make mounting easy. Choose the style and size best suited for your vehicle.

Additional details:

* Replaceable 100- or 10-micron filters for superior protection of vital fuel system components
* Flows up to 198 GPH (750 LPH) for high-horsepower builds
* Available with cellulose filter for gasoline and diesel; or stainless steel filter for gasoline, diesel, methanol, and ethanol
* High-quality Viton O-rings prevent leaking under high pressures
* Rated to withstand up to 116 psi working fuel pressure
* -10 ORB inlets ensure adequate fuel flow and low pressure drop in all situations
* Extruded and anodized aluminum body is lightweight and durable to withstand the rigors of racing
* High-quality Viton© O-rings prevent leaking under high pressures
* Over 60 sq. in. of surface area reduces risk of clogging and improves filtration

Part Type

Fuel Filters

Data: v4.2 - Upd: 2026-10-14 10:58:03

Specifications

Product Attributes - Brand: Mishimoto
Product Attributes - Manufacturer's Part Number: MMFF-HF-S010
Product Attributes - Part Type: Fuel Filters
Product Attributes - Product Line: Mishimoto Fuel Filters
Product Attributes - UPC: 840197708866
Product Attributes - Fuel Filter Style: Inline
Product Attributes - Inlet Quantity: 1
Product Attributes - Fuel Filter Inlet Size: -10 AN O-ring
Product Attributes - Inlet Attachment: Female threads
Product Attributes - Outlet Quantity: 1
Product Attributes - Fuel Filter Outlet Size: -10 AN O-ring
Product Attributes - Outlet Attachment: Female threads
Product Attributes - Filter Element Included: Yes
Product Attributes - Smallest Particle Filtered: 10 microns
Product Attributes - Filter Element Material: Stainless steel mesh
Product Attributes - Filter Housing Material: Aluminum
Product Attributes - Filter Housing Color: Black
Product Attributes - Overall Length (in.): 10.60 in.
Product Attributes - Outside Diameter (in.): 2.165
Product Attributes - Mounting Bracket Included: No
Product Attributes - Fittings Included: No
Product Attributes - Clamps Included: No
Product Attributes - Maximum Fuel Pressure (psi): 116
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMFF-HF-S010
SFX Item ID	4810765
Supplier Item Code	4810765
Manufacturer SKU	MMFF-HF-S010
Manufacturer UPC	840197708866
Alternative References	MIO-MMFF-HF-S010, 10-Micron
