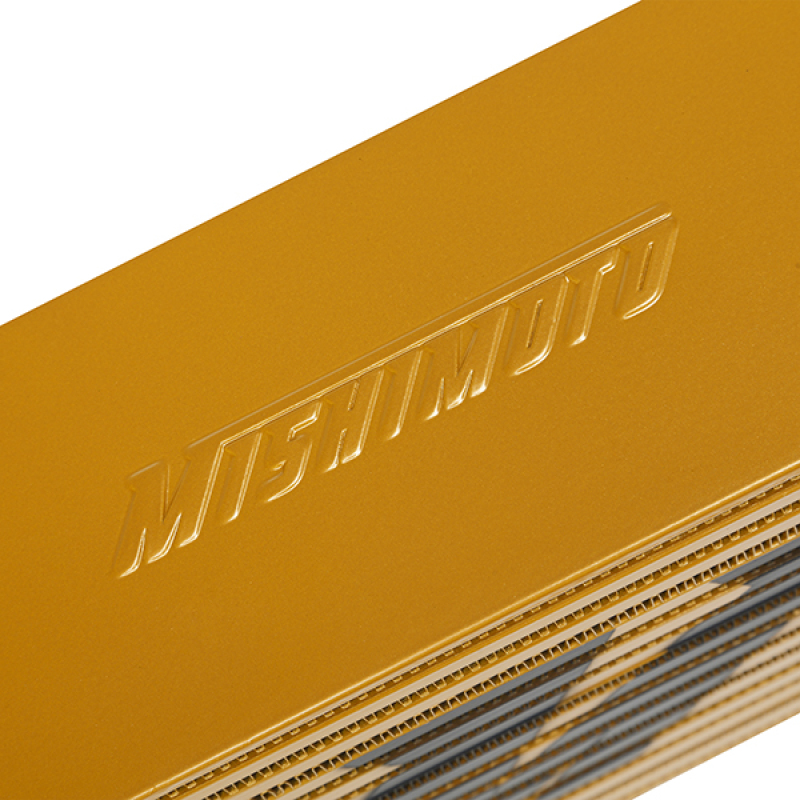

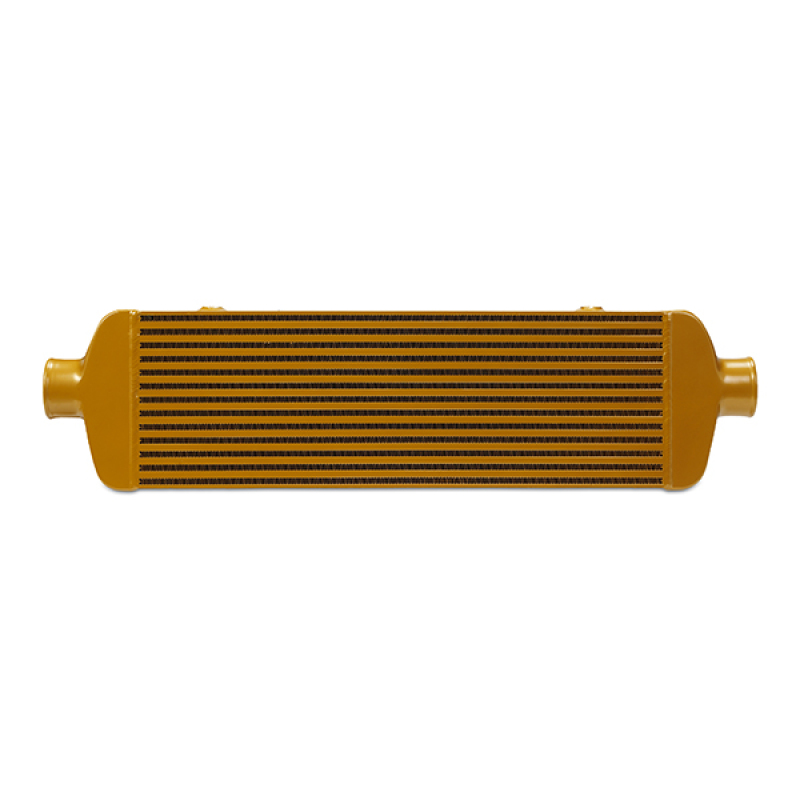

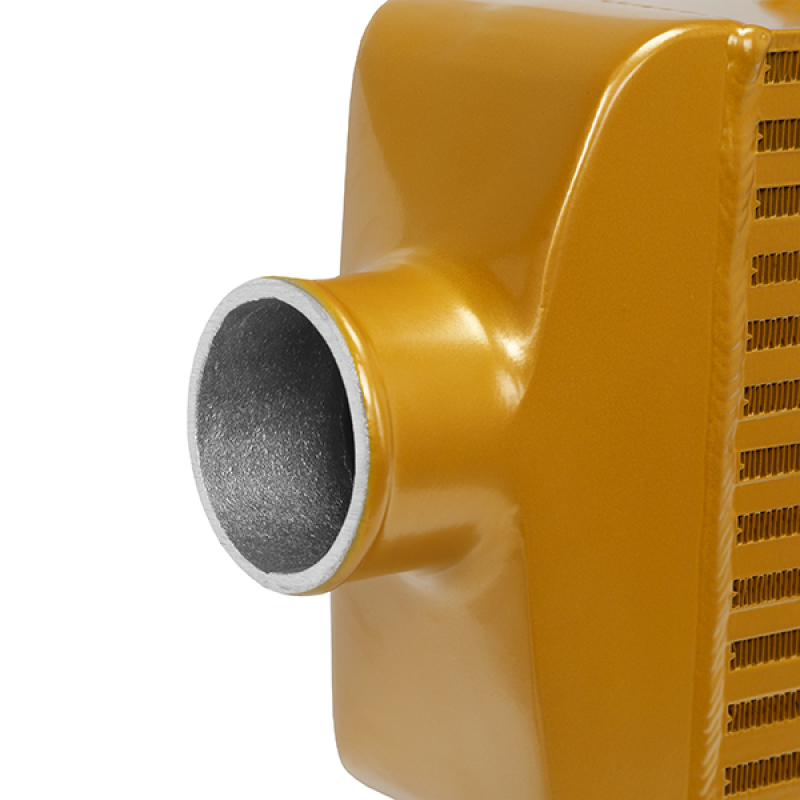

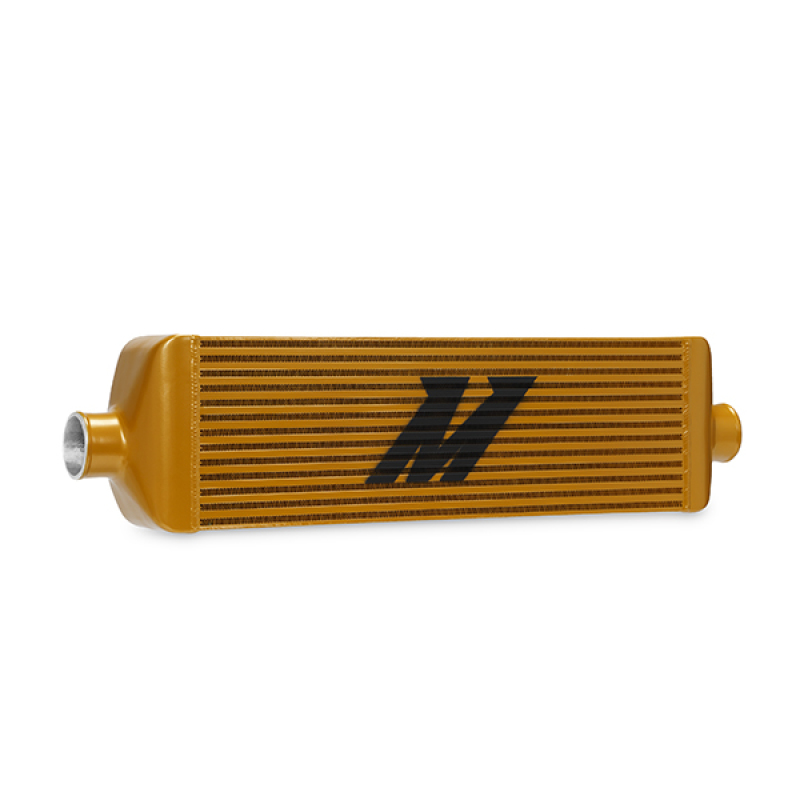

Mishimoto Universal Intercooler - J-Line Gold

SKU: MISMMINT-UJG

Intercoolers

MM Intercoolers - Universal...

Mishimoto

Mishimoto Universal Intercooler - J-Line Gold

SKU: MISMMINT-UJG

Intercoolers

MM Intercoolers - Universal...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size.Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar.Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.

Product Overview

Features and Benefits

Engineered to handle up to 500HP
Constructed of 6061 Aluminum
Universal Fitment
Available in silver, black, or gold
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMINT-UJG
Color:	Gold
Description:	Mishimoto Universal Intercooler J-Line
Feature Bullet 1:	Engineered to handle up to 500HP
Feature Bullet 2:	Constructed of 6061 Aluminum
Feature Bullet 3:	Universal Fitment
Feature Bullet 4:	Available in silver, black, or gold
Feature Bullet 5:	Mishimoto Lifetime Warranty
Finish:	Powder-Coat
Install Difficulty:	3
Installation Difficulty:	3/5
Material:	Aluminum
OptionLabel:	Gold
Part Number:	misMMINT-UJG
SellingPoint01:	Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
SellingPoint02:	Robust, one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint03:	Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
SellingPoint04:	constructed with 6061 aluminum
SellingPoint05:	Available in Sleek Silver, Stealth Black, or Bold Gold
SellingPoint06:	Mishimoto Lifetime Warranty
SellingPoint07:	N/A
SellingPoint08:	N/A
SellingPoint09:	N/A
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
TechSpec Applications:	N/A
TechSpec Centerline Radius:	N/A
TechSpec Chassis Codes:	N/A
TechSpec Core Height (in):	7.2
TechSpec Core Length (in):	22
TechSpec Core Thickness (in):	3.5
TechSpec Core Type:	Bar-and-Plate
TechSpec Engine Codes:	N/A
TechSpec Includes:	(1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in):	2.5
TechSpec Installation Notes:	N/A
TechSpec Maximum Recommended Boost Pressure (PSI):	40
TechSpec Maximum Recommended Horsepower:	500
TechSpec Note:	N/A
TechSpec Outlet (in):	2.5
TechSpec Overall Height (in):	7.5
TechSpec Overall Length (in):	29.5
TechSpec Overall Width (in):	3.75
TechSpec Pipe Diameter:	N/A
TechSpec Pipe Length:	N/A
TechSpec Pipe Shape:	N/A
TechSpec Weight (lbs):	18.7

Application Summary

Universal Fitment

Part Type

Intercooler

Data: v4.2 - Upd: 2026-10-13 18:11:15

Features

Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
Robust, one-piece cast aluminum end tanks withstand high boost pressures

Specifications

Product Attributes - UPC: 748354021103
Product Attributes - Brand: Mishimoto
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Intercoolers
Product Attributes - Product Line: Mishimoto J-Line Race Edition Intercoolers
Product Attributes - Horsepower Rating: 500
Product Attributes - Intercooler Color: Gold
Product Attributes - Intercooler Inlet: Slip fit
Product Attributes - Intercooler Outlet: Slip fit
Product Attributes - Aftercooler Included: No
Product Attributes - Intercooler Material: Aluminum
Product Attributes - Intercooler Core Type: Air-to-air
Product Attributes - Intercooler Inlet Size: 2.500 in.
Product Attributes - Intercooler Depth (in.): 3.75 in.
Product Attributes - Intercooler Outlet Size: 2.500 in.
Product Attributes - Intercooler Width (in.): 29.50 in.
Product Attributes - Intercooler Height (in.): 7.50 in.
Product Attributes - Intercooler Pipe Included: No
Product Attributes - Manufacturer's Part Number: MMINT-UJG
Product Attributes - Intercooler Width Range (in.): 29.00-29.99 in.
Product Attributes - Intercooler Height Range (in.): 7.00-7.99 in.
Product Attributes - Intercooler Mounting Brackets Included: No
Product Attributes - Remote Mount Electric Water Pump Included: No
Product Attributes - Aftercooler Remote Water Reservoir Included: No
