Mishimoto Universal Baffled Oil Catch Can - Black

SKU: MISMMBCC-UNI-BK

Oil Catch Cans

MM Baffled Oil Catch - Univ...

Mishimoto

Mishimoto Universal Baffled Oil Catch Can - Black

SKU: MISMMBCC-UNI-BK

Oil Catch Cans

MM Baffled Oil Catch - Univ...

Sale ends in Calculating... Fri 16 Oct, 4:07 pm AEST

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Mishimoto is proud to announce the release of our universal Baffled Oil Catch Can. With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market. ---- The Mishimoto Baffled Oil Catch can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. Custom grooves in the catch can's inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. ---- The 100-percent billet, 6061 aluminum can accepts -AN fittings at the inlet, outlet, and drain area allowing over 25 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for -AN return to the oil pain. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system. ---- Our Baffled Oil Catch Can is available in a variety of colors and backed by the Mishimoto Lifetime Warranty.

Product Overview

Mishimoto is proud to announce the release of our Baffled Oil Catch Can.With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market.The Mishimoto Baffled Oil Catch can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake.Custom grooves in the catch can's inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake.An internal baffle keeps the collected oil from splashing around under race conditions.The 100-percent billet, 6061 aluminum can accepts inAN fittings at the intlet, outlet, and drain area allowing over 25 possible configurations.For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles.To make maintenance easy, the drain plug can be removed to allow for inAN return to the oil pain.The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well, so it will be sure to match your style and taste!

Features and Benefits

40-micron bronze filter blocks oil from depositing in ventilation system
Special engineered inlet pattern "turbulates" air longer, allowing oil to condense

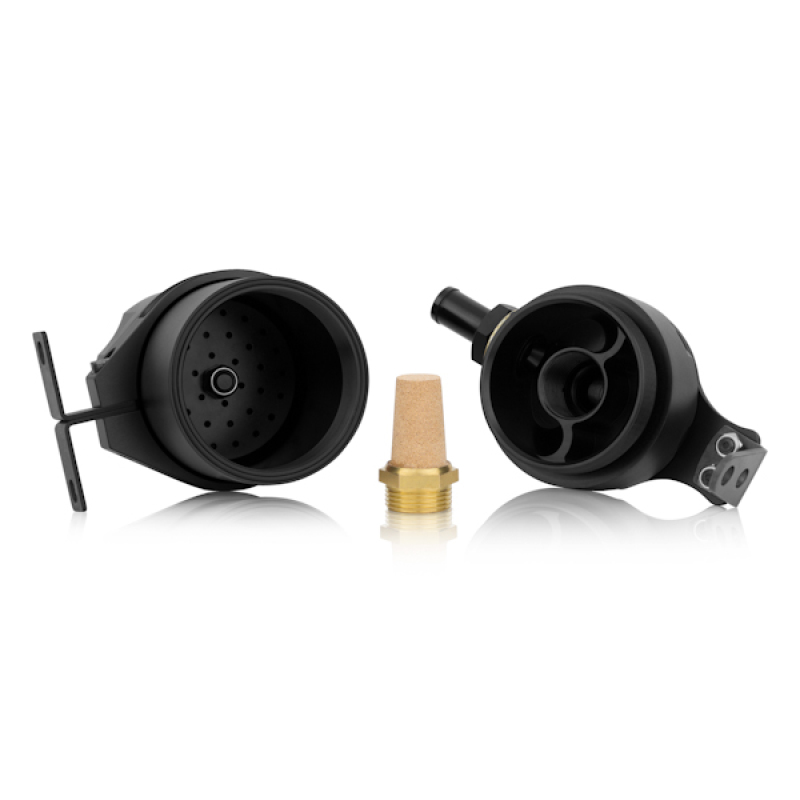

Internal baffle ensures no oil escapes during high-speed cornering
Replaceable single-unit filter is easy to maintain
Inlet and outlet accept -AN fittings for various configurations
100% billet anodized 6061 aluminum with laser etched finish
Safe to use in pressurized systems
Drain plug can be removed to allow for -AN return to oil pan
Unique upper mounting bracket cogs provide versatile mounting options
Includes push-on fittings for easy installation
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMBCC-UNI-BK
Color:	Black
Description:	Mishimoto Baffled Oil Catch Can
Install Difficulty:	2
Material:	Aluminum
OptionLabel:	Black
Part Number:	misMMBCC-UNI-BK
Prop 65 (C, R or CR):	CR
Prop 65 - Short Label:	prop65_warning.jpg
Prop 65 Yes/No:	Yes
SellingPoint01:	40-micron bronze filter blocks oil from depositing in ventilation system
SellingPoint02:	Special engineered inlet pattern turbulates air longer, allowing oil to condense
SellingPoint03:	Internal baffle ensures no oil escapes during high-speed cornering
SellingPoint04:	Replaceable single-unit filter is easy to maintain
SellingPoint05:	Inlet and outlet accept -AN fittings for various configurations
SellingPoint06:	100-percent billet anodized 6061 aluminum with laser etched finish
SellingPoint07:	Safe to use in pressurized systems
SellingPoint08:	Drain plug can be removed to allow for -AN return to oil pan
SellingPoint09:	Unique upper mounting bracket cogs provide versatile mounting options
SellingPoint10:	Includes push-on fittings for easy installation
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
TechSpec Applications:	N/A
TechSpec Catch Can Diameter (in):	N/A
TechSpec Chassis Codes:	N/A
TechSpec Drain Plug Thread Size:	N/A
TechSpec Engine Codes:	N/A
TechSpec Height (in):	N/A

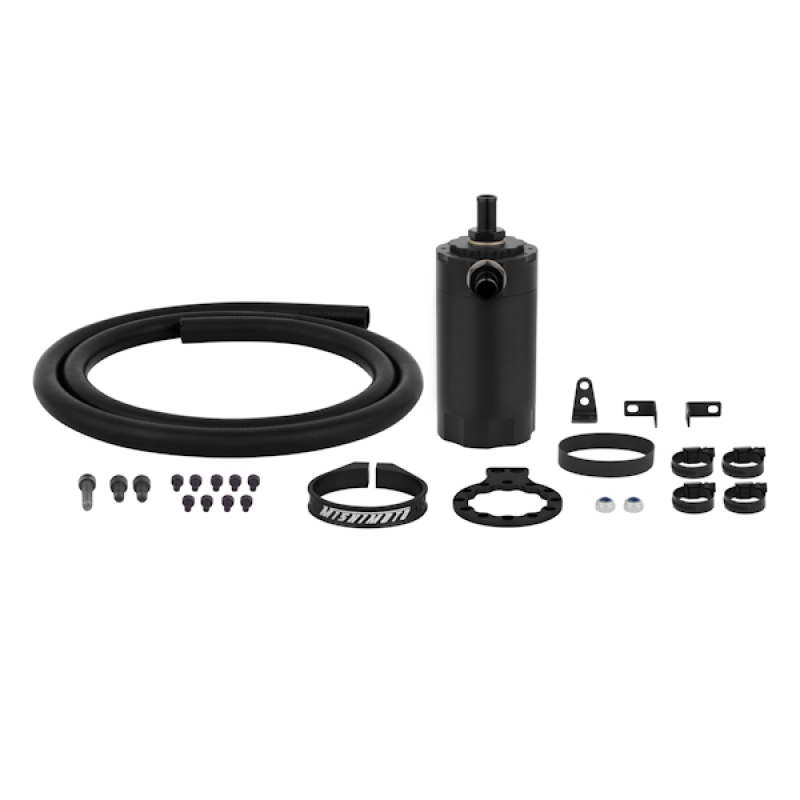

TechSpec Includes:	(1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) Push-on Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
TechSpec Inlet:	N/A
TechSpec Installation Notes:	N/A
TechSpec Material:	6061 Aluminum
TechSpec Note:	N/A
TechSpec Outlet:	N/A
Title:	Mishimoto Mishimoto Baffled Oil Catch Can, Black

Application Summary

Universal Fitment

Part Type

Engine Oil Separator

Data: v4.2 - Upd: 2026-10-15 12:23:02

Features

40-micron bronze filter blocks oil from depositing in ventilation system
Internal baffle ensures no oil escapes during high-speed cornering
Special engineered inlet pattern turbulates air longer, allowing oil to condense
