Mishimoto Universal 10 Row Oil Cooler Kit (Metal Braided Lines)

SKU: MISMMOC-U

Fluid Coolers

MM Oil Cooler - Univ...

Mishimoto

Mishimoto Universal 10 Row Oil Cooler Kit (Metal Braided Lines)

SKU: MISMMOC-U

Fluid Coolers

MM Oil Cooler - Univ...

Sale ends in Calculating... Sun 18 Oct, 8:07 am AEST

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

An oil cooler kit is a must for any car with a high performance engine.Even with optimal driving conditions, increased oil temperatures will cause a drop in pressure and will decrease the ability for your engine to be properly lubricated.This could potentially cause engine seizure.Keep your oil cool with the Mishimoto universal oil cooler kit.This oil cooler kit includes all needed adapters for any vehicle application.

Product Overview

Features and Benefits

Universal fitment
10-row stacked-plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
Includes either standard or thermostatic billet anodized aluminum sandwich plate

Product Details

Alternate Part Number:	MMOC-U
Color:	Silver
Description:	Universal Oil Cooler Kit
Install Difficulty:	3
Installation Difficulty:	3
OptionLabel:	Silver Cooler, Non-Thermostatic
Part Number:	misMMOC-U
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N:	Y
Rows:	10
SellingPoint01:	Universal fitment
SellingPoint02:	10-row stacked-plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
SellingPoint03:	Includes either standard or thermostatic billet anodized aluminum sandwich plate
SellingPoint04:	Includes preassembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak-free connections
SellingPoint05:	Includes 3/4-in -16 and M20-1.5 sandwich plate adapters that support fitment for most makes and models
SellingPoint06:	Available in Sleek Silver or Stealth Black
SellingPoint07:	Lifetime Warranty
SellingPoint08:	N/A
SellingPoint09:	N/A
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
TechSpec Applications:	N/A
TechSpec Caution:	It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Chassis Codes:	N/A
TechSpec Core Construction:	N/A
TechSpec Core Height (in):	2.76
TechSpec Core Length (in):	11
TechSpec Core Thickness (in):	1.97
TechSpec Engine Codes:	N/A
TechSpec Fluid Capacity (qts):	N/A

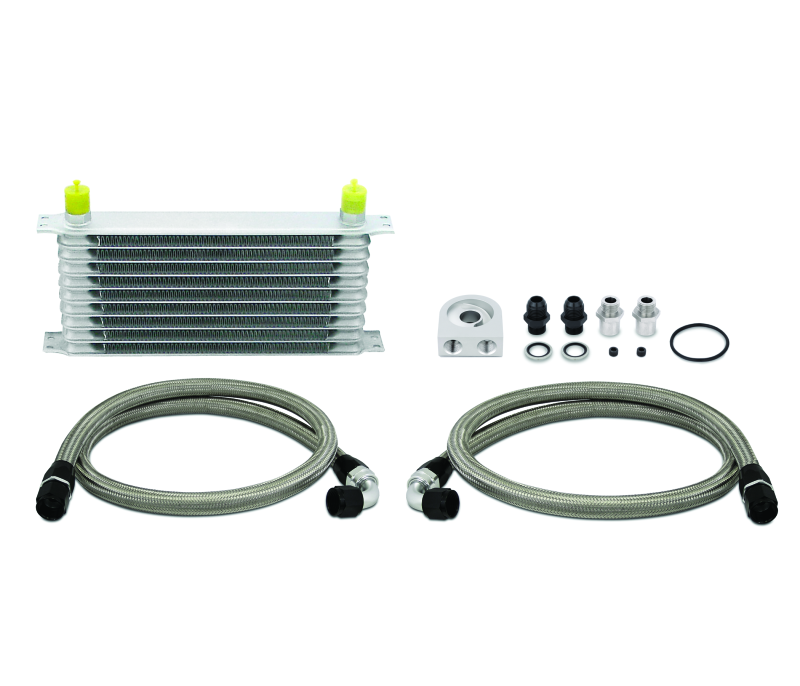

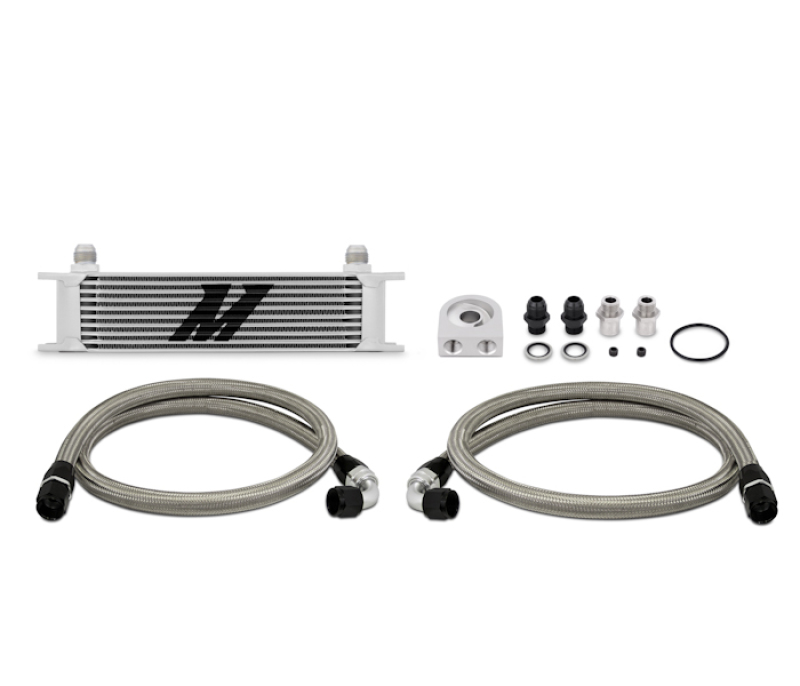

TechSpec Includes:	10-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--5ft stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--M20 Thermostatic Sandwich Plate---10AN Fittings--Dowty Oil Seals--Large O-Ring--1/8-in NPT Allen Key Plugs--Sandwich plate adapters--Mishimoto Lifetime Warranty
TechSpec Inlet:	N/A
TechSpec Installation Notes:	Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note:	No dashes = M20 x 1.5--M20 x 1.5--2 dashes = 3/4" -16UNF--3/4" -16UNF
TechSpec Outlet:	N/A
TechSpec Overall Height (in):	N/A
TechSpec Overall Length (in):	N/A
TechSpec Overall Width (in):	N/A
TechSpec Rows:	10

Application Summary

Universal Fitment

Part Type

Engine Oil Cooler

Data: v4.2 - Upd: 2026-10-17 04:25:21

Features

10-row stacked-plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
Includes either standard or thermostatic billet anodized aluminum sandwich plate

Specifications

Product Attributes - UPC: 748354797336
Product Attributes - Brand: Mishimoto
Product Attributes - Notes: Includes two stainless steel braided hoses, oil filter sandwich plate and fittings.
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Part Type: Fluid Coolers
Product Attributes - Cooler Color: Natural
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Oil Cooler Kits
Product Attributes - Cooler Material: Aluminum
Product Attributes - Core Width (in.): 12.91 in.
Product Attributes - Inlet Attachment: Male threads
Product Attributes - Core Height (in.): 2.81 in.
Product Attributes - Fluid Cooler Type: Universal
Product Attributes - Outlet Attachment: Male threads
Product Attributes - Cooler Construction: Heat sink
Product Attributes - Core Thickness (in.): 1.97 in.
Product Attributes - Number of Cooling Rows: 10
Product Attributes - Fluid Cooler Inlet Size: -10 AN
Product Attributes - Fluid Cooler Outlet Size: -10 AN
Product Attributes - Manufacturer's Part Number: MMOC-U
