Mishimoto 97-04 Ford Mustang w/ Stabilizer System Automatic Aluminum Radiator

SKU: MISMMRAD-MUS-97BA

Radiators

MM Radiators - Alum...

Mishimoto

Mishimoto 97-04 Ford Mustang w/ Stabilizer System Automatic Aluminum Radiator

SKU: MISMMRAD-MUS-97BA

Radiators

MM Radiators - Alum...

Sale ends in Calculating... Sun 18 Oct, 7:06 pm AEST

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Mishimoto has released a revolutionary new radiator for the automatic 1997-2004 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patented floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.

Product Overview

Features and Benefits

Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission
Full aluminum construction including durable, TIG-welded end tanks

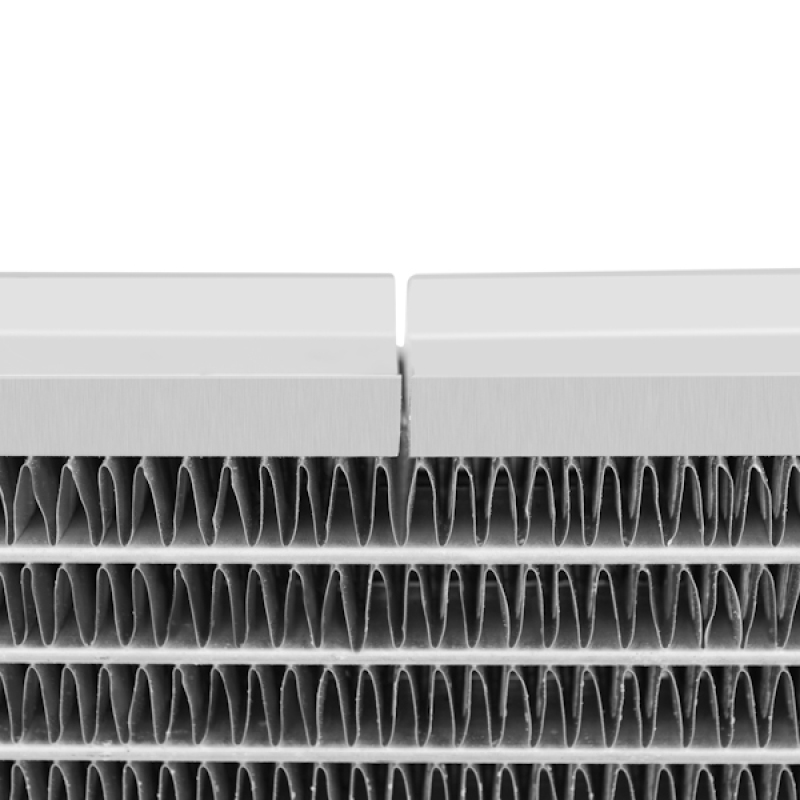

Features a two-row, 1.57-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Perfect for use on the street or strip
Efficient temperature regulation for both stock and mo
Features internal transmission fluid cooler which accepts factory cooler lines

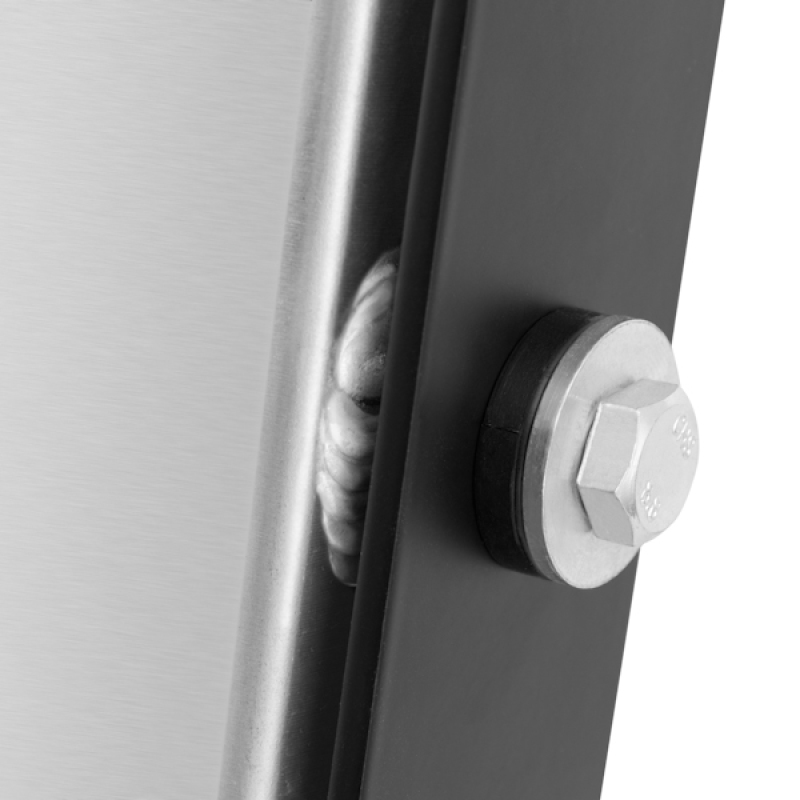

Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMRADMUS97BA
Description:	Ford Mustang Bracketed Aluminum Radiator
Install Difficulty:	3
Material:	Aluminum
Part Number:	misMMRAD-MUS-97BA
SellingPoint01:	Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission
SellingPoint02:	Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03:	Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint04:	Increased fluid capacity and optimal heat dissipation
SellingPoint05:	Perfect for use on the street or strip
SellingPoint06:	Efficient temperature regulation for both stock and mo
SellingPoint07:	Features internal transmission fluid cooler which accepts factory cooler lines
SellingPoint08:	Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
SellingPoint09:	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10:	Mishimoto Lifetime Warranty
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Size:	31.57in x 19.76in x 4.68in
TechSpec Applications:	1997-2001 Ford Mustang Cobra--2002-2004 Ford Mustang SVT Cobra--2001 Ford Mustang Bullitt--2003-2004 Ford Mustang Mach 1
TechSpec Chassis Codes:	SN-95
TechSpec Core Height (in):	17.24
TechSpec Core Length (in):	24.92
TechSpec Core Thickness (in):	1.57
TechSpec DPI:	2139
TechSpec Drain Plug Thread Size:	M12 x 1.5
TechSpec Engine Codes:	289ci (4.6L)
TechSpec Fluid Capacity (gal):	3.97
TechSpec Includes:	Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
TechSpec Inlet (in):	1.57
TechSpec Material:	Aluminum
TechSpec Note:	N/A
TechSpec Outlet (in):	1.77
TechSpec Overall Height (in):	31.57
TechSpec Overall Length (in):	19.76
TechSpec Overall Width (ins):	4.68
TechSpec Rows:	2

Application Summary

1997-2004 Ford Mustang 4.6 Liter 4R70W, 1997-2000 Ford Mustang 4.6 Liter T-45, 2001-2004 Ford Mustang 4.6 Liter T45OD, 1997-2003 Ford Mustang 4.6 Liter T5, 2003-2004 Ford Mustang 4.6 Liter T56, 2001-2004 Ford Mustang 4.6 Liter T5OD, 2001-2004 Ford Mustang 4.6 Liter TR3650

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-17 16:15:42

Features

Features a two-row, 1.57-in thick, efficient brazed aluminum core
Full aluminum construction including durable, TIG-welded end tanks
Increased fluid capacity and optimal heat dissipation

Specifications

Product Attributes - UPC: 748666001329
Product Attributes - Brand: Mishimoto
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Radiators
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Performance Radiators
Product Attributes - Row Quantity: 2
Product Attributes - Inlet Location: Upper passenger side
Product Attributes - Radiator Style: Crossflow
Product Attributes - Outlet Location: Lower driver side
Product Attributes - Radiator Finish: Natural
Product Attributes - Core Width (in.): 25.00 in.
Product Attributes - Core Height (in.): 16.85 in.
Product Attributes - Radiator Material: Aluminum
Product Attributes - Overall Width (in.): 30.10 in.
Product Attributes - Radiator Inlet Size: 1.500 in.
Product Attributes - Transmission Cooler: Yes
Product Attributes - Core Thickness (in.): 2.05 in.
Product Attributes - Overall Height (in.): 19.90 in.
Product Attributes - Radiator Outlet Size: 1.770 in.
Product Attributes - Radiator Cap Included: No
Product Attributes - Overall Thickness (in.): 2.55
Product Attributes - Manufacturer's Part Number: MMRAD-MUS-97BA
Product Attributes - Trans Cooler Adapter Fittings Included: No

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMRAD-MUS-97BA
SFX Item ID	4049403
Supplier Item Code	4049403
Manufacturer SKU	MMRAD-MUS-97BA
Manufacturer UPC	748666001329
Alternative References	mio-mmradmus97ba, MIMMMRAD-MUS-97BA
