Description

Mishimoto has released a revolutionary new radiator for the 1994andndash

Product Overview

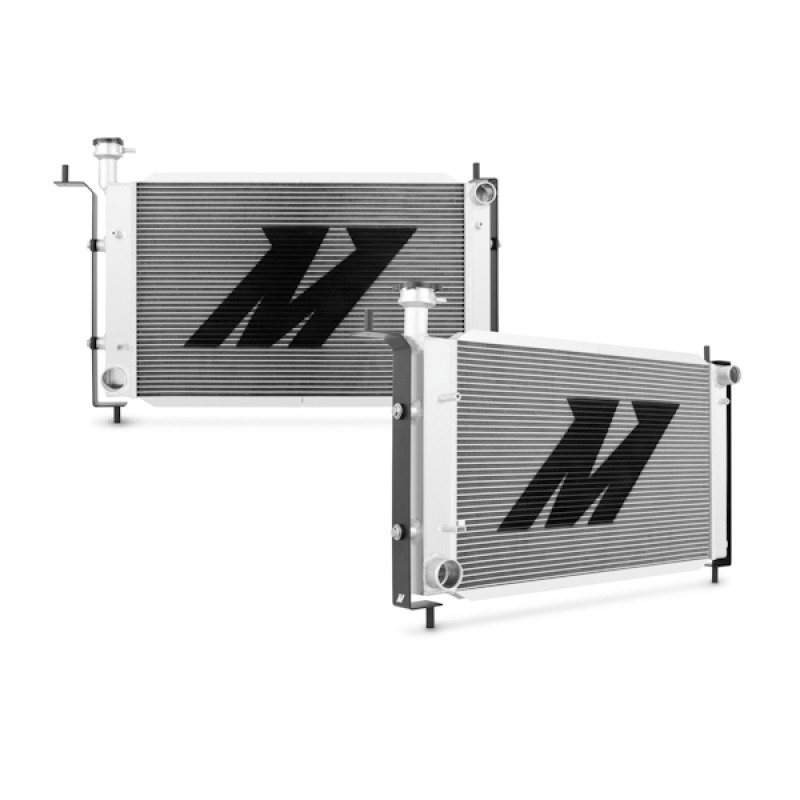

Mishimoto has released a revolutionary new radiator for the 1994-1995 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.

Features and Benefits

Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57" thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Perfect for use on the street or strip
Efficient temperature regulation for both stock and modified vehicles
Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
Features internal transmission fluid cooler which accepts factory cooler lines
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any debris
U.S. Patent Number: D703,126 S
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMRADMUS94B
Description:	Ford Mustang Bracketed Aluminum Radiator
Install Difficulty:	3
Installation Difficulty:	3
Material:	Aluminum
Part Number:	misMMRAD-MUS-94B
SellingPoint01:	Full aluminum construction including durable, TIG-welded end tanks
SellingPoint02:	Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint03:	Increased fluid capacity and optimal heat dissipation
SellingPoint04:	Perfect for use on the street or strip
SellingPoint05:	Efficient temperature regulation for both stock and modified vehicles
SellingPoint06:	Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
SellingPoint07:	Features internal transmission fluid cooler which accepts factory cooler lines
SellingPoint08:	Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09:	Includes Magnetic Drain Plug to capture any debris
SellingPoint10:	Patent Number D703,126
SellingPoint11:	Mishimoto Lifetime Warranty
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Size:	34.8in x 20.5in x 4.2in
TechSpec Applications:	1994-1995 Ford Mustang
TechSpec Chassis Codes:	SN-95
TechSpec Core Height (in):	15.28
TechSpec Core Length (in):	24.02
TechSpec Core Thickness (in):	1.57
TechSpec DPI:	1488
TechSpec Drain Plug Thread Size:	M12 x 1.5
TechSpec Engine Codes:	302ci (5.0L)--3.8L V6
TechSpec Fluid Capacity (gal):	3.97
TechSpec Includes:	Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty--
TechSpec Inlet (in):	1.5
TechSpec Material:	Aluminum
TechSpec Note:	N/A
TechSpec Outlet (in):	1.77
TechSpec Overall Height (in):	34.8
TechSpec Overall Length (in):	20.5
TechSpec Overall Width (ins):	4.2
TechSpec Rows:	2

Application Summary

1994-1995 Ford Mustang 3.8 Liter T5, 1994-1995 Ford Mustang 5.0 Liter T5

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-16 03:07:50

Features

Features a two-row, 1.57-in thick, efficient brazed aluminum core
Full aluminum construction including durable, TIG-welded end tanks
Increased fluid capacity and optimal heat dissipation

Specifications

Product Attributes - UPC: 748666000506
Product Attributes - Brand: Mishimoto
Product Attributes - Notes: Fits models with factory-equipped ABS.
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Radiators
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Performance Radiators
Product Attributes - Row Quantity: 2
Product Attributes - Inlet Location: Upper passenger side
Product Attributes - Radiator Style: Downflow
Product Attributes - Outlet Location: Lower driver side
Product Attributes - Radiator Finish: Natural
Product Attributes - Core Width (in.): 23.98 in.
Product Attributes - Core Height (in.): 15.67 in.
Product Attributes - Radiator Material: Aluminum
Product Attributes - Overall Width (in.): 32.30 in.
Product Attributes - Radiator Inlet Size: 1.500 in.
Product Attributes - Transmission Cooler: No
Product Attributes - Core Thickness (in.): 1.57 in.
Product Attributes - Overall Height (in.): 20.30 in.
Product Attributes - Radiator Outlet Size: 1.770 in.
Product Attributes - Radiator Cap Included: Yes
Product Attributes - Overall Thickness (in.): 2.55
Product Attributes - Manufacturer's Part Number: MMRAD-MUS-94B
Product Attributes - Trans Cooler Adapter Fittings Included: No

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMRAD-MUS-94B
SFX Item ID	4049384
Supplier Item Code	4049384
Manufacturer SKU	MMRAD-MUS-94B
Manufacturer UPC	748666000506
Alternative References	mio-mmradmus94b, MIMMMRAD-MUS-94B
