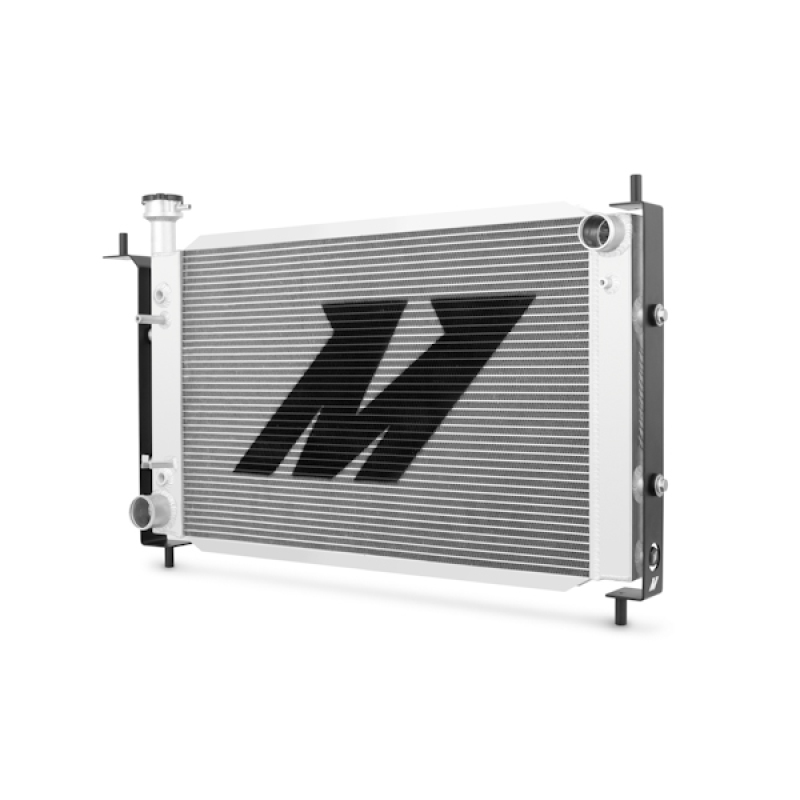

Mishimoto 94-95 Ford Mustang w/ Stabilizer System Automatic Aluminum Radiator
Mishimoto 94-95 Ford Mustang w/ Stabilizer System Automatic Aluminum Radiator
A$1,247.12
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Mishimoto has released a revolutionary new radiator for the automatic 1994-1995 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
Product Overview
Mishimoto has released a revolutionary new radiator for the automatic 1994-1995 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
Features and Benefits
- Direct fit for the 1994-1995 Ford Mustang 5.0L with automatic transmission
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Perfect for use on the street or strip
- Efficient temperature regulation for both stock and modified vehicles

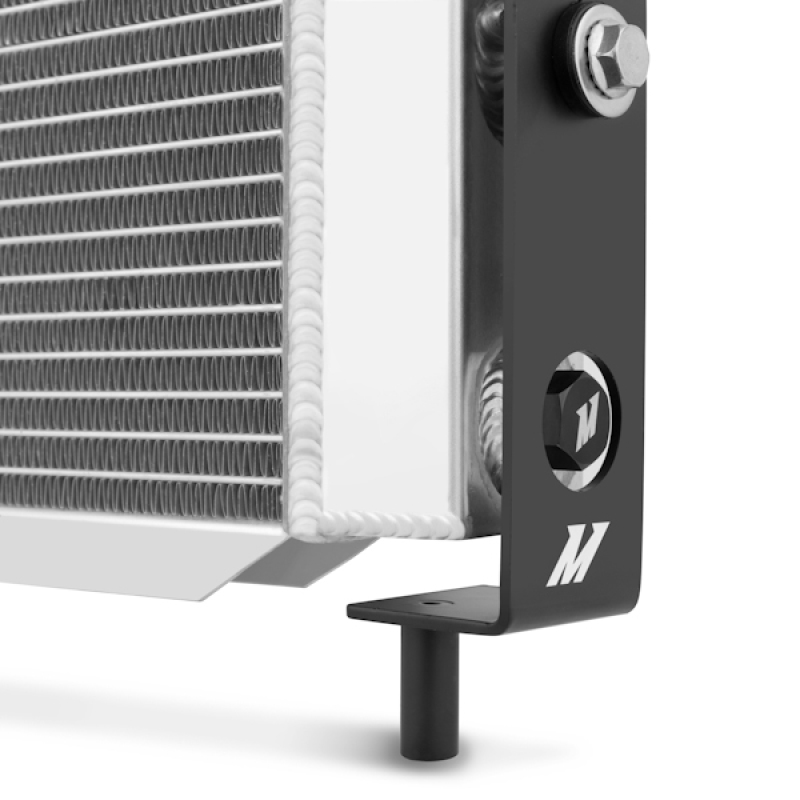

- Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
- Features internal transmission fluid cooler which accepts factory cooler lines

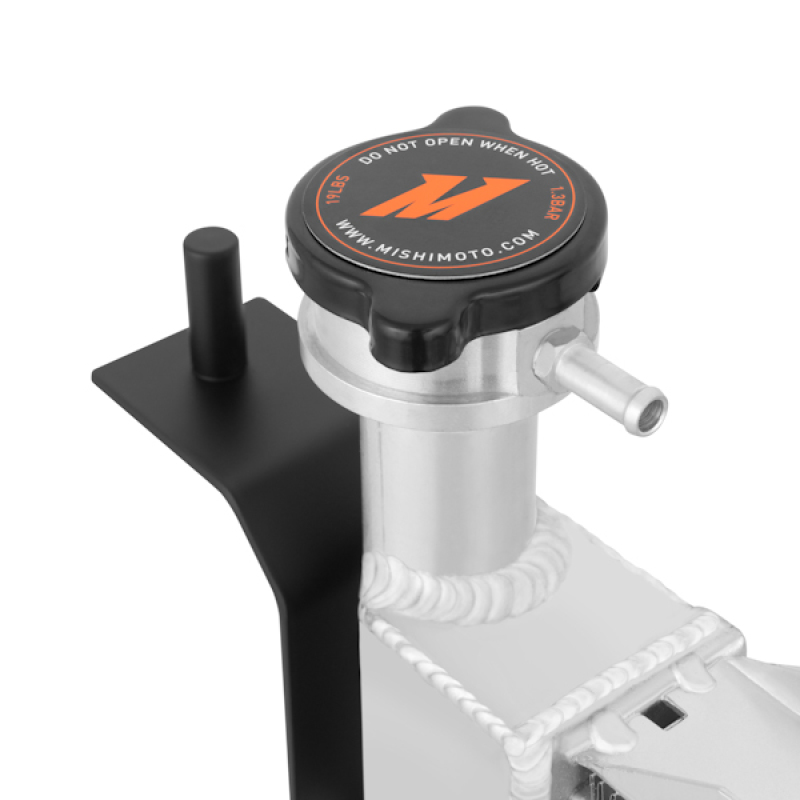

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Patent Number D703,126
- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MMRADMUS94BA |
|---|---|
| Description: | Ford Mustang Bracketed Aluminum Radiator |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3 |
| Material: | Aluminum |
| Part Number: | misMMRAD-MUS-94BA |
| SellingPoint01: | Direct fit for the 1994-1995 Ford Mustang 5.0L with automatic transmission |
| SellingPoint02: | Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03: | Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint04: | Increased fluid capacity and optimal heat dissipation |
| SellingPoint05: | Perfect for use on the street or strip |
| SellingPoint06: | Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint07: | Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator |
| SellingPoint08: | Features internal transmission fluid cooler which accepts factory cooler lines |
| SellingPoint09: | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint10: | Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint11: | Patent Number D703,126 |
| SellingPoint12: | Mishimoto Lifetime Warranty |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| Side: | Center |
| Size: | 34.8in x 20.5in x 4.2in |
| TechSpec Applications: | 1994-1995 Ford Mustang |
| TechSpec Chassis Codes: | SN-95 |
| TechSpec Core Height (in): | 15.28 |
| TechSpec Core Length (in): | 24.02 |
| TechSpec Core Thickness (in): | 1.57 |
| TechSpec DPI: | 1488 |
| TechSpec Drain Plug Thread Size: | M12 x 1.5 |
| TechSpec Engine Codes: | 302ci (5.0L)--3.8L V6 |
| TechSpec Fluid Capacity (gal): | 3.97 |
| TechSpec Includes: | Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty-- |
| TechSpec Inlet (in): | 1.5 |
| TechSpec Material: | Aluminum |
| TechSpec Note: | Transmission cooler thread size: 1/4-inch-18 NPT |
| TechSpec Outlet (in): | 1.77 |
| TechSpec Overall Height (in): | 34.8 |
| TechSpec Overall Length (in): | 20.5 |
| TechSpec Overall Width (ins): | 4.2 |
| TechSpec Rows: | 2 |
Application Summary
1994-1995 Ford Mustang 3.8 Liter AOD-E, 1994-1995 Ford Mustang 3.8 Liter T5, 1994-1995 Ford Mustang 5.0 Liter AOD-E, 1994-1995 Ford Mustang 5.0 Liter T5
Part Type
Radiator
Features
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Full aluminum construction including durable, TIG-welded end tanks
- Increased fluid capacity and optimal heat dissipation
Specifications
- Product Attributes - UPC
- 748666000513
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Fits models with factory-equipped ABS.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Radiators
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Performance Radiators
- Product Attributes - Row Quantity
- 2
- Product Attributes - Inlet Location
- Upper passenger side
- Product Attributes - Radiator Style
- Downflow
- Product Attributes - Outlet Location
- Lower driver side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Core Width (in.)
- 23.98 in.
- Product Attributes - Core Height (in.)
- 15.67 in.
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Overall Width (in.)
- 32.30 in.
- Product Attributes - Radiator Inlet Size
- 1.500 in.
- Product Attributes - Transmission Cooler
- Yes
- Product Attributes - Core Thickness (in.)
- 2.05 in.
- Product Attributes - Overall Height (in.)
- 20.30 in.
- Product Attributes - Radiator Outlet Size
- 1.770 in.
- Product Attributes - Radiator Cap Included
- Yes
- Product Attributes - Overall Thickness (in.)
- 2.55
- Product Attributes - Manufacturer's Part Number
- MMRAD-MUS-94BA
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMRAD-MUS-94BA |
| SFX Item ID | 4049385 |
| Supplier Item Code | 4049385 |
| Manufacturer SKU | MMRAD-MUS-94BA |
| Manufacturer UPC | 748666000513 |
| Alternative References | mio-mmradmus94ba, MIMMMRAD-MUS-94BA |
Brochures
Compatibility
1994-1995 Ford Mustang 3.8 Liter AOD-E, 1994-1995 Ford Mustang 3.8 Liter T5, 1994-1995 Ford Mustang 5.0 Liter AOD-E, 1994-1995 Ford Mustang 5.0 Liter T5
