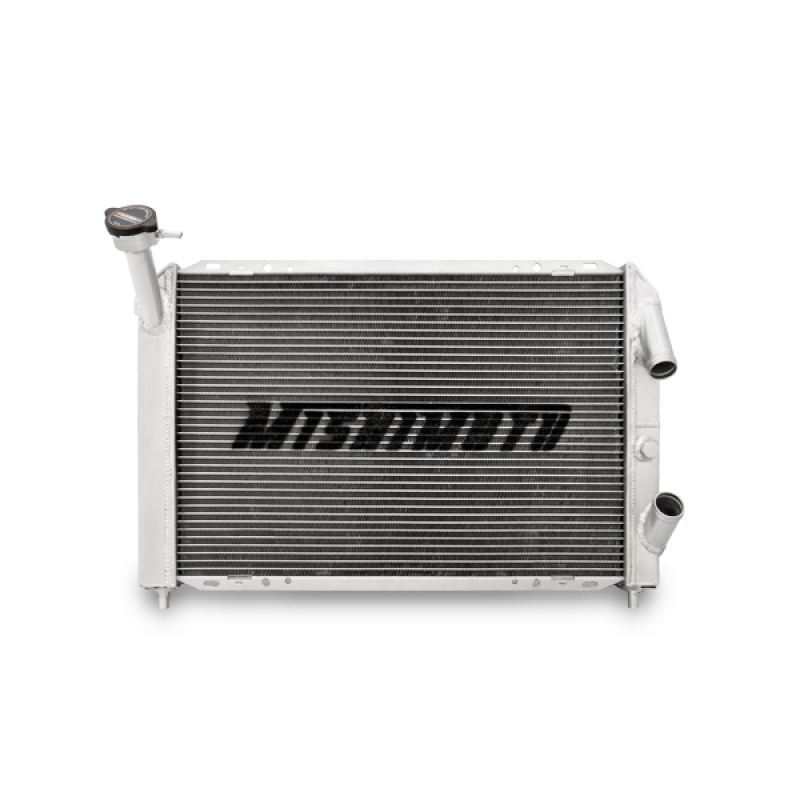

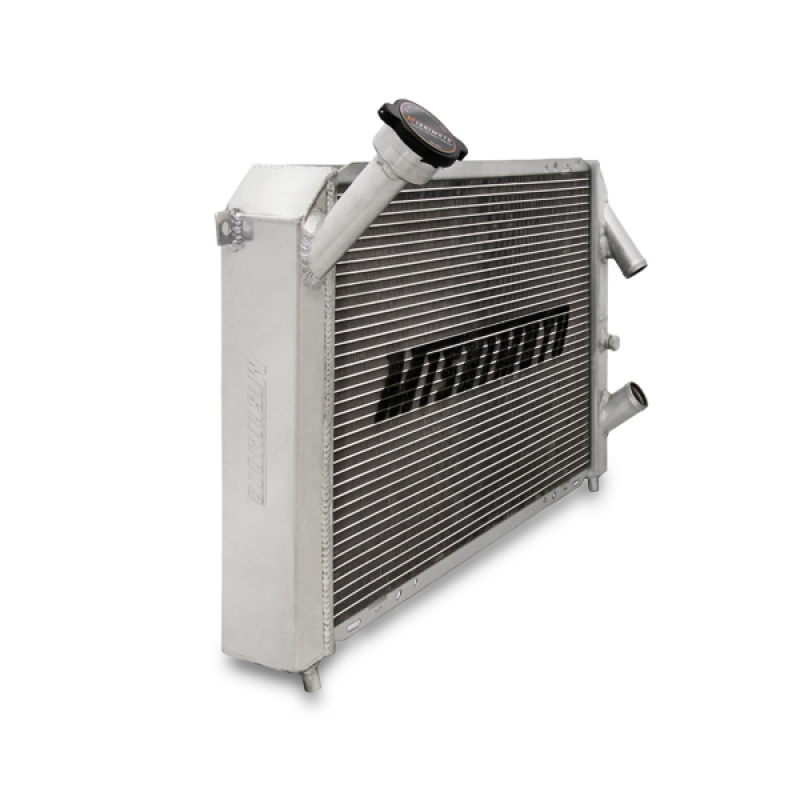

Mishimoto 93-95 Mazda RX7 w/ LS Engine Swap Manual Aluminum Radiator
Mishimoto 93-95 Mazda RX7 w/ LS Engine Swap Manual Aluminum Radiator
Sale ends in Calculating...
A$994.09 A$1,210.59
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.
Product Overview
For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.
Features and Benefits
- Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.17-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Provides efficient temperature reduction for street and/or track use
- Efficient temperature regulation for both stock and forced induction vehicles

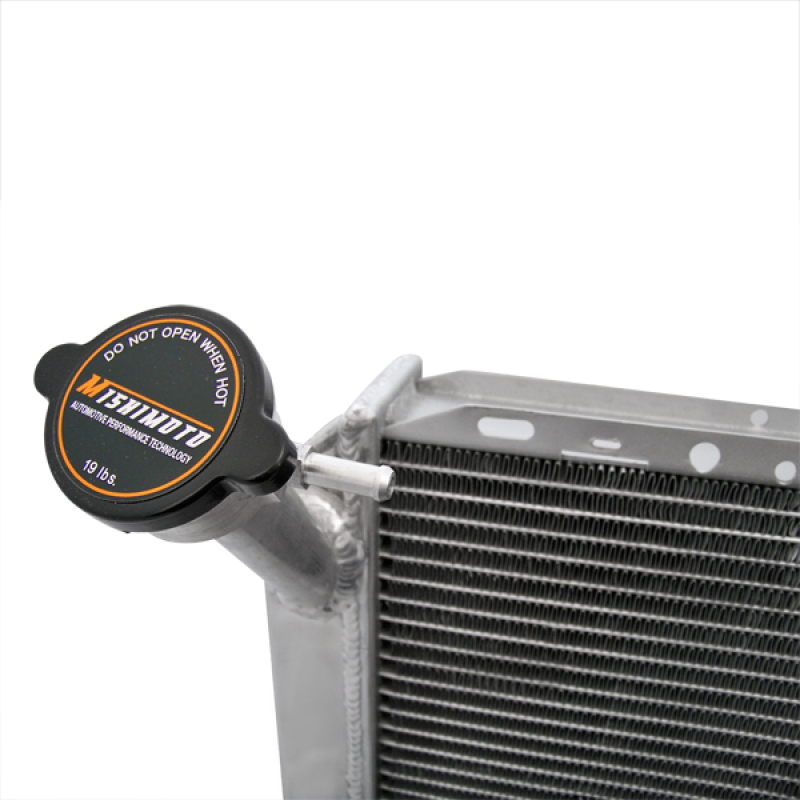

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

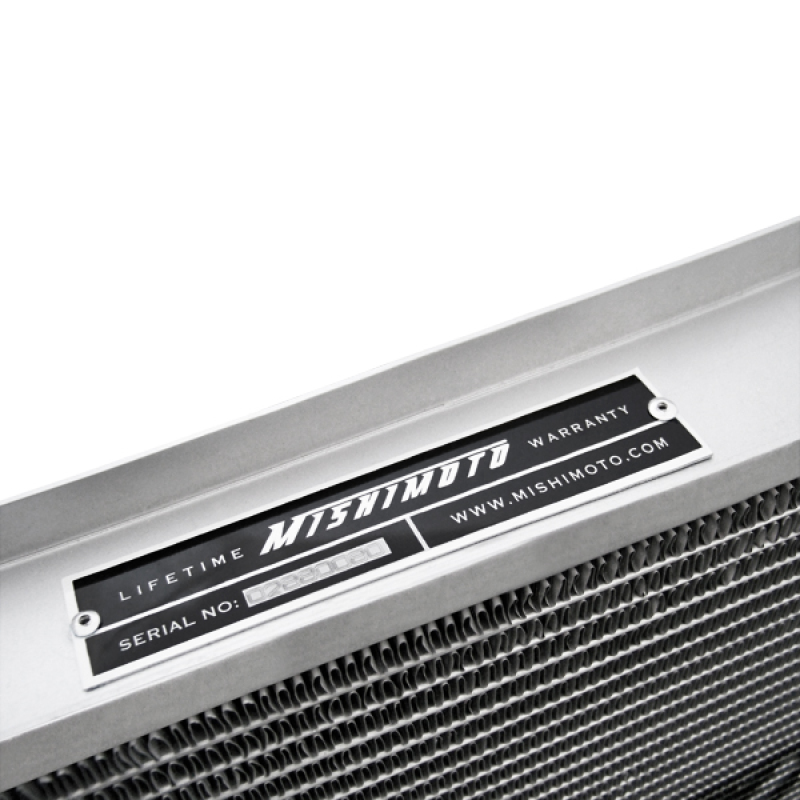

- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MMRAD-RX-LS |
|---|---|
| Description: | LS-Swapped Mazda RX-7 Performance Aluminum Radiator |
| Dimensions: | 27.34" x 19.5" x 2.67" |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3 |
| Material: | Aluminum |
| Part Number: | misMMRAD-RX-LS |
| SellingPoint01: | Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap |
| SellingPoint02: | Provides a bolt-in cooling solution which simplifies the engine-swap process |
| SellingPoint03: | Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint04: | Features a two-row, 2.17-in thick, efficient brazed aluminum core |
| SellingPoint05: | Increased fluid capacity and optimal heat dissipation |
| SellingPoint06: | Provides efficient temperature reduction for street and/or track use |
| SellingPoint07: | Efficient temperature regulation for both stock and forced induction vehicles |
| SellingPoint08: | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint09: | Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint10: | Mishimoto Lifetime Warranty |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| Size: | 27.34in x 19.5in x 2.67in |
| TechSpec Applications: | N/A |
| TechSpec Chassis Codes: | FD |
| TechSpec Core Height (in): | 15.75 |
| TechSpec Core Length (in): | 22.2 |
| TechSpec Core Thickness (in): | 2.17 |
| TechSpec DPI: | 2067 |
| TechSpec Drain Plug Thread Size: | N/A |
| TechSpec Engine Codes: | LS |
| TechSpec Fluid Capacity (gal): | N/A |
| TechSpec Includes: | Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 1.38 |
| TechSpec Material: | Aluminum |
| TechSpec Note: | Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in): | 1.5 |
| TechSpec Overall Height (in): | 27.34 |
| TechSpec Overall Length (in): | 19.5 |
| TechSpec Overall Width (ins): | 2.67 |
| TechSpec Rows: | 2 |
Application Summary
1993-1995 Mazda RX-7 4.8 Liter, 1993-1995 Mazda RX-7 5.3 Liter, 1993-1995 Mazda RX-7 5.7 Liter, 1993-1995 Mazda RX-7 6.0 Liter, 1993-1995 Mazda RX-7 6.2 Liter, 1993-1995 Mazda RX-7 7.0 Liter
Part Type
Radiator
Features
- Features a two-row, 2.17-in thick, efficient brazed aluminum core
- Full aluminum construction including durable, TIG-welded end tanks
- Provides a bolt-in cooling solution which simplifies the engine-swap process
Specifications
- Product Attributes - UPC
- 748354804423
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Includes a radiator cap. Fits LS engine conversions only.
- Product Attributes - Quantity
- Sold as a set.
- Product Attributes - Part Type
- Radiators
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Performance Radiators
- Product Attributes - Row Quantity
- 2
- Product Attributes - Inlet Location
- Upper passenger side
- Product Attributes - Radiator Style
- Crossflow
- Product Attributes - Outlet Location
- Lower passenger side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Core Width (in.)
- 22.20 in.
- Product Attributes - Core Height (in.)
- 15.75 in.
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Overall Width (in.)
- 27.34 in.
- Product Attributes - Radiator Inlet Size
- 1.380 in.
- Product Attributes - Transmission Cooler
- No
- Product Attributes - Core Thickness (in.)
- 2.17 in.
- Product Attributes - Overall Height (in.)
- 19.50 in.
- Product Attributes - Radiator Outlet Size
- 1.500 in.
- Product Attributes - Radiator Cap Included
- Yes
- Product Attributes - Overall Thickness (in.)
- 2.67
- Product Attributes - Manufacturer's Part Number
- MMRAD-RX-LS
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMRAD-RX-LS |
| SFX Item ID | 4049011 |
| Supplier Item Code | 4049011 |
| Manufacturer SKU | MMRAD-RX-LS |
| Manufacturer UPC | 748354804423 |
| Alternative References | RX7 |
Brochures
Compatibility
1993-1995 Mazda RX-7 4.8 Liter, 1993-1995 Mazda RX-7 5.3 Liter, 1993-1995 Mazda RX-7 5.7 Liter, 1993-1995 Mazda RX-7 6.0 Liter, 1993-1995 Mazda RX-7 6.2 Liter, 1993-1995 Mazda RX-7 7.0 Liter
