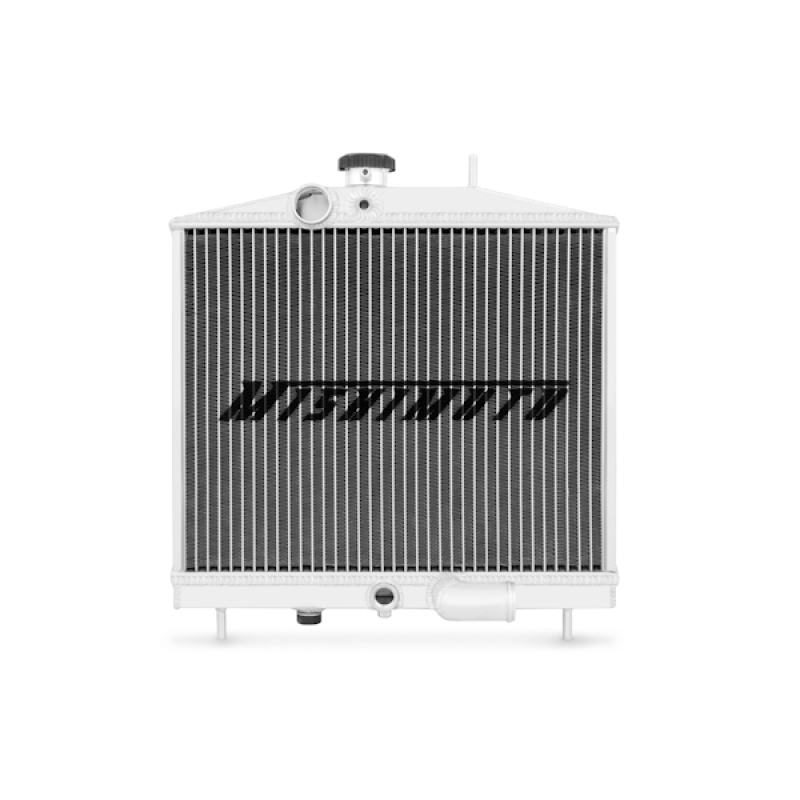

Mishimoto 92-95 Honda Civic / 93-97 Civic del Sol K-Series Swap Aluminum Radiator
Mishimoto 92-95 Honda Civic / 93-97 Civic del Sol K-Series Swap Aluminum Radiator
Sale ends in Calculating...
A$875.11 A$961.03
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
Product Overview
Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
Features and Benefits
- Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
- Provides a bolt-in cooling solution, simplifying the engine swap process
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Substantial fluid capacity and optimal heat dissipation
- Provides efficient heat exchange for naturally aspirated and forced induction vehicles
- Includes threaded fan switch port to function with stock sensor
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MMRAD-K20-EG |
|---|---|
| Description: | Honda Civic K-Series Swap Aluminum Radiator |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3 |
| Material: | Aluminum |
| Part Number: | misMMRAD-K20-EG |
| SellingPoint01: | Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap |
| SellingPoint02: | Provides a bolt-in cooling solution, simplifying the engine swap process |
| SellingPoint03: | Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint04: | Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint05: | Substantial fluid capacity and optimal heat dissipation |
| SellingPoint06: | Provides efficient heat exchange for naturally aspirated and forced induction vehicles |
| SellingPoint07: | Includes threaded fan switch port to function with stock sensor |
| SellingPoint08: | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint09: | Includes Magnetic Drain |
| SellingPoint10: | Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint11: | Mishimoto Lifetime Warranty |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| Size: | 15.04in x 16.73in x 4.02in |
| TechSpec Applications: | 1992-1995 Honda Civic EG--1993-1997 Honda Del Sol |
| TechSpec Chassis Codes: | N/A |
| TechSpec Core Height (in): | 11.61 |
| TechSpec Core Length (in): | 14.88 |
| TechSpec Core Thickness (in): | 1.57 |
| TechSpec DPI: | N/A |
| TechSpec Drain Plug Thread Size: | M12 x 1.5 |
| TechSpec Engine Codes: | K20 |
| TechSpec Fluid Capacity (gal): | N/A |
| TechSpec Includes: | Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 1.25 |
| TechSpec Material: | N/A |
| TechSpec Note: | N/A |
| TechSpec Outlet (in): | 1.25 |
| TechSpec Overall Height (in): | 15.04 |
| TechSpec Overall Length (in): | 16.73 |
| TechSpec Overall Width (ins): | 4.02 |
| TechSpec Rows: | 2 |
Application Summary
1992-1995 Honda Civic, 1992-1995 Honda Civic CX 2.0 Liter, 1992-1995 Honda Civic CX 2.4 Liter, 1992-1995 Honda Civic DX 2.0 Liter, 1992-1995 Honda Civic DX 2.4 Liter, 1992-1995 Honda Civic EX 2.0 Liter, 1992-1995 Honda Civic EX 2.4 Liter, 1992-1995 Honda Civic LX 2.0 Liter, 1992-1995 Honda Civic LX 2.4 Liter, 1992-1995 Honda Civic Si 2.0 Liter, 1992-1995 Honda Civic Si 2.4 Liter, 1992-1995 Honda Civic VX 2.0 Liter, 1992-1995 Honda Civic VX 2.4 Liter
Part Type
Radiator
Features
- Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
- Full aluminum construction with durable, TIG-welded end tanks
- Provides a bolt-in cooling solution, simplifying the engine swap process
Specifications
- Product Attributes - UPC
- 748666001336
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Includes a radiator cap and a magnetic drain plug. Fits the K20 engines.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Radiators
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Performance Radiators
- Product Attributes - Row Quantity
- 2
- Product Attributes - Inlet Location
- Upper driver side
- Product Attributes - Radiator Style
- Downflow
- Product Attributes - Outlet Location
- Lower passenger side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Core Width (in.)
- 14.88 in.
- Product Attributes - Core Height (in.)
- 11.61 in.
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Overall Width (in.)
- 15.04 in.
- Product Attributes - Radiator Inlet Size
- 1.400 in.
- Product Attributes - Transmission Cooler
- No
- Product Attributes - Core Thickness (in.)
- 1.88 in.
- Product Attributes - Overall Height (in.)
- 16.73 in.
- Product Attributes - Radiator Outlet Size
- 1.250 in.
- Product Attributes - Radiator Cap Included
- Yes
- Product Attributes - Overall Thickness (in.)
- 4.02
- Product Attributes - Manufacturer's Part Number
- MMRAD-K20-EG
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMRAD-K20-EG |
| SFX Item ID | 4049419 |
| Supplier Item Code | 4049419 |
| Manufacturer SKU | MMRAD-K20-EG |
| Manufacturer UPC | 748666001336 |
| Alternative References | mio-mmrad-k20-eg, MIMMMRAD-K20-EG |
Brochures
Compatibility
1992-1995 Honda Civic, 1992-1995 Honda Civic CX 2.0 Liter, 1992-1995 Honda Civic CX 2.4 Liter, 1992-1995 Honda Civic DX 2.0 Liter, 1992-1995 Honda Civic DX 2.4 Liter, 1992-1995 Honda Civic EX 2.0 Liter, 1992-1995 Honda Civic EX 2.4 Liter, 1992-1995 Honda Civic LX 2.0 Liter, 1992-1995 Honda Civic LX 2.4 Liter, 1992-1995 Honda Civic Si 2.0 Liter, 1992-1995 Honda Civic Si 2.4 Liter, 1992-1995 Honda Civic VX 2.0 Liter, 1992-1995 Honda Civic VX 2.4 Liter
