Description

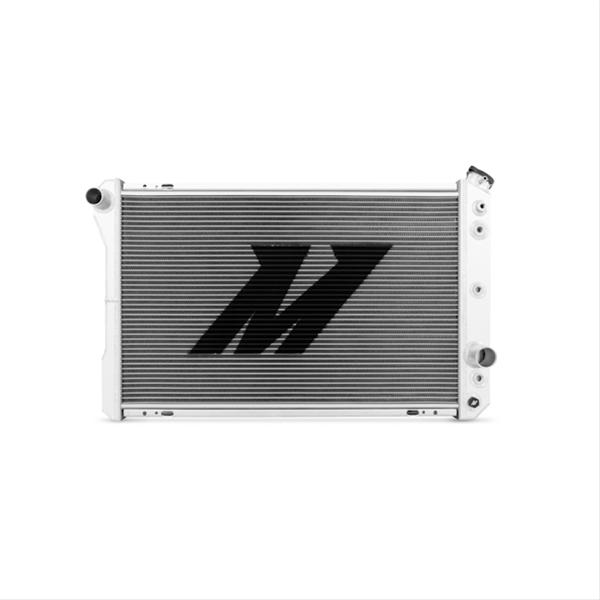

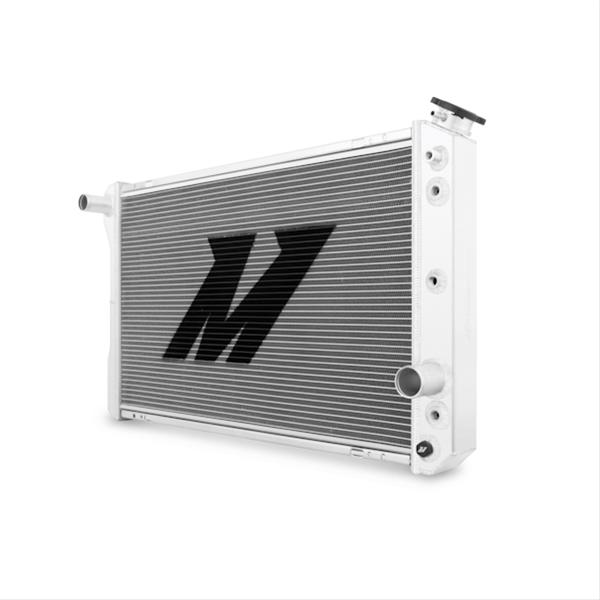

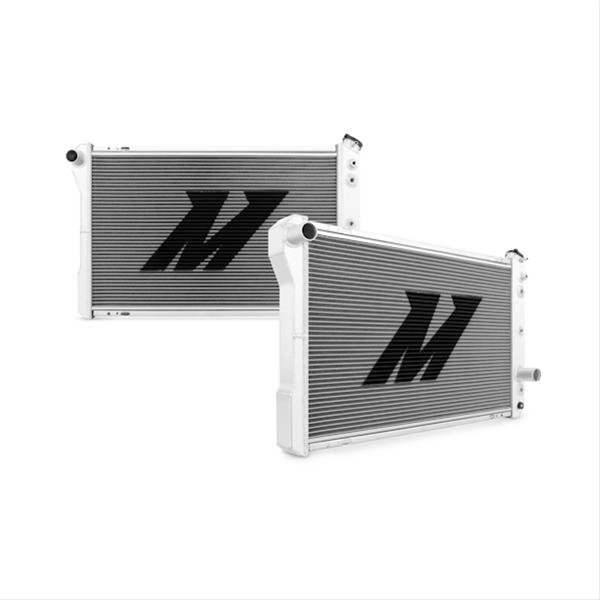

A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the best upgrade in cooling efficiency that fits in your tight budget. The Mishimoto Aluminum Radiator utilizes a 2 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency. Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.

Product Overview

1988 Chevrolet Camaro Base 2.8 Liter M39, 1988 Chevrolet Camaro Base 2.8 Liter MB1, 1988 Chevrolet Camaro Base 2.8 Liter MK6, 1988 Chevrolet Camaro Base 2.8 Liter THM700-R4/4L60/MD8, 1988 Chevrolet Camaro Base 5.0 Liter M39, 1988 Chevrolet Camaro Base 5.0 Liter MB1, 1988 Chevrolet Camaro Base 5.0 Liter MK6, 1988 Chevrolet Camaro Base 5.0 Liter THM700-R4/4L60/MD8, 1983 Chevrolet Camaro Berlinetta 2.8 Liter M08, 1982 Chevrolet Camaro Berlinetta 2.8 Liter M24, 1984 Chevrolet Camaro Berlinetta 2.8 Liter M24, 1982-1985 Chevrolet Camaro Berlinetta 2.8 Liter M26, 1985-1986 Chevrolet Camaro Berlinetta 2.8 Liter M39, 1985-1986 Chevrolet Camaro Berlinetta 2.8 Liter MB1, 1986 Chevrolet Camaro Berlinetta 2.8 Liter MC4, 1983-1984 Chevrolet Camaro Berlinetta 2.8 Liter MK4, 1983-1984 Chevrolet Camaro Berlinetta 2.8 Liter MK5, 1983-1984 Chevrolet Camaro Berlinetta 2.8 Liter MK6, 1985-1986 Chevrolet Camaro Berlinetta 2.8 Liter ML3, 1982-1983 Chevrolet Camaro Berlinetta 2.8 Liter THM200C/MV9, 1983-1986 Chevrolet Camaro Berlinetta 2.8 Liter THM700-R4/4L60/MD8, 1983 Chevrolet Camaro Berlinetta 5.0 Liter M08, 1982 Chevrolet Camaro Berlinetta 5.0 Liter M24, 1984 Chevrolet Camaro Berlinetta 5.0 Liter M24, 1982-1985 Chevrolet Camaro Berlinetta 5.0 Liter M26, 1985-1986 Chevrolet Camaro Berlinetta 5.0 Liter M39, 1985-1986 Chevrolet Camaro Berlinetta 5.0 Liter MB1, 1986 Chevrolet Camaro Berlinetta 5.0 Liter MC4, 1983-1984 Chevrolet Camaro Berlinetta 5.0 Liter MK4, 1983-1984 Chevrolet Camaro Berlinetta 5.0 Liter MK5, 1983-1984 Chevrolet Camaro Berlinetta 5.0 Liter MK6, 1985-1986 Chevrolet Camaro Berlinetta 5.0 Liter ML3, 1982-1983 Chevrolet Camaro Berlinetta 5.0 Liter THM200C/MV9, 1983-1986 Chevrolet Camaro Berlinetta 5.0 Liter THM700-R4/4L60/MD8, 1988-1990 Chevrolet Camaro Iroc-Z 5.0 Liter M39, 1988-1990 Chevrolet Camaro Iroc-Z 5.0 Liter MB1, 1988-1990 Chevrolet Camaro Iroc-Z 5.0 Liter MK6 ...See Application Guide for Additional Fitments

Features and Benefits

Full aluminum radiator featuring robust TIG-welded construction
Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip

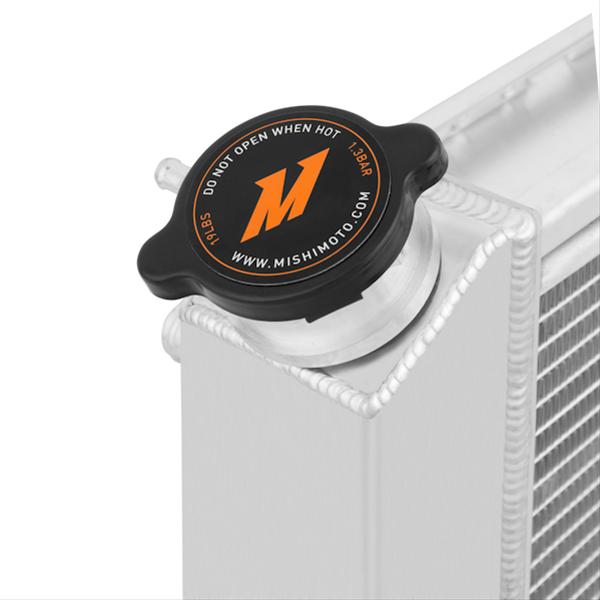

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

Product Details

Year	Make
Alternate Part Number:	MMRAD-CAM-82
Color:	Silver
Core Finish:	Uncoated
Core Height:	16.5
Core Length:	26.2
Core Material:	Aluminum
Core Row Quantity:	2
Core Thickness:	1.96
Description:	Chevrolet Camaro / Pontiac Firebird 2-Row Performance Aluminum Radiator
Down Flow Or Cross Flow Type:	Cross Flow
Drain Plug Included:	Yes
Drain Plug Thread Size:	M12 - 1.5
Finish:	Brushed
Fluid Capacity:	4.63
Inlet Diameter:	1.37
Inlet Location:	Top Left
Install Difficulty:	3
Installation Difficulty:	3/5
Material:	Aluminum
Outlet Diameter:	1.57
Outlet Location:	Bottom Right
Overall Height:	31.5
Overall Length:	19.5
Overall Width:	4.5
Part Number:	misMMRAD-CAM-82
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N:	Y
Radiator Cap Included:	Yes
SellingPoint01:	Full aluminum radiator featuring robust TIG-welded construction
SellingPoint02:	Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
SellingPoint03:	Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint04:	Polished aluminum end tanks enhance engine bay aesthetics

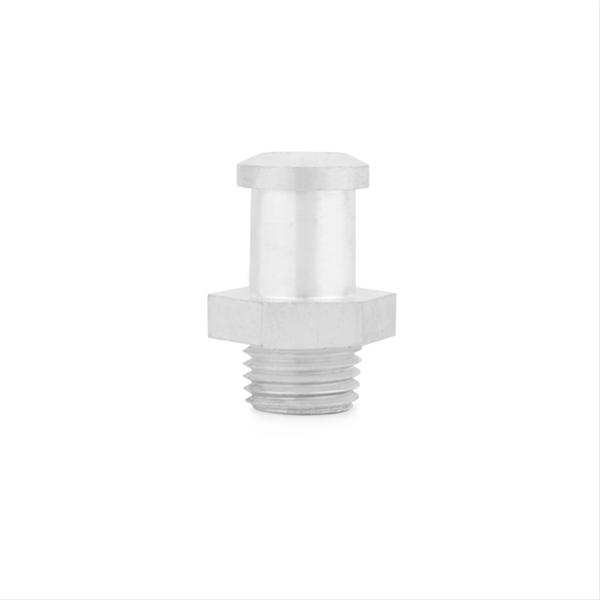

SellingPoint05:	Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06:	Mishimoto Lifetime Warranty
SellingPoint07:	N/A
SellingPoint08:	N/A
SellingPoint09:	N/A
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Size:	31.5in x 19.5in x 5.0in
TechSpec Applications:	1982-1992 Chevrolet Camaro L6 & V8--1982-1992 Pontiac Firebird Trans Am
TechSpec Chassis Codes:	N/A
TechSpec Core Height (in):	16.5
TechSpec Core Length (in):	26.2
TechSpec Core Thickness (in):	1.96
TechSpec DPI:	951
TechSpec Drain Plug Thread Size:	M12 x 1.5
TechSpec Engine Codes:	V6--V8
TechSpec Fluid Capacity (gal):	4.7
TechSpec Includes:	Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal-- 1/8-inch NPT Plug-- 1/4-inch NPT Plugs--Mishimoto Lifetime Warranty
TechSpec Inlet (in):	1.37
TechSpec Material:	Aluminum
TechSpec Note:	N/A
TechSpec Outlet (in):	1.57
TechSpec Overall Height (in):	31.5
TechSpec Overall Length (in):	19.5
TechSpec Overall Width (in):	4.5
TechSpec Rows:	2
Transmission Oil Cooler Fitting Type:	N/A
Transmission Oil Cooler Included:	Yes

Application Summary

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-13 18:12:13

Features

Full aluminum radiator featuring robust TIG-welded construction
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip

Specifications

Product Attributes - UPC: 748666003194
Product Attributes - Brand: Mishimoto
Product Attributes - Notes: Includes radiator cap, magnetic drain plug, one 1/8 in. NPT plug, and one 1/4 in. NPT plug.
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Radiators
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Performance Radiators
Product Attributes - Row Quantity: 2
Product Attributes - Inlet Location: Upper driver side
Product Attributes - Radiator Style: Crossflow
Product Attributes - Outlet Location: Lower passenger side
Product Attributes - Radiator Finish: Natural
Product Attributes - Core Width (in.): 26.18 in.
Product Attributes - Core Height (in.): 16.69 in.
Product Attributes - Radiator Material: Aluminum
Product Attributes - Overall Width (in.): 31.50 in.
Product Attributes - Radiator Inlet Size: 1.340 in.
Product Attributes - Transmission Cooler: Yes
Product Attributes - Core Thickness (in.): 1.41 in.
Product Attributes - Overall Height (in.): 19.50 in.
Product Attributes - Radiator Outlet Size: 1.570 in.
Product Attributes - Radiator Cap Included: Yes
Product Attributes - Overall Thickness (in.): 5.00
Product Attributes - Manufacturer's Part Number: MMRAD-CAM-82
Product Attributes - Trans Cooler Adapter Fittings Included: No

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMRAD-CAM-82
SFX Item ID	4049431
Supplier Item Code	4049431
Manufacturer SKU	MMRAD-CAM-82
Manufacturer UPC	748666003194
Alternative References	mio-mmrad-cam-82, MIMMMRAD-CAM-82
