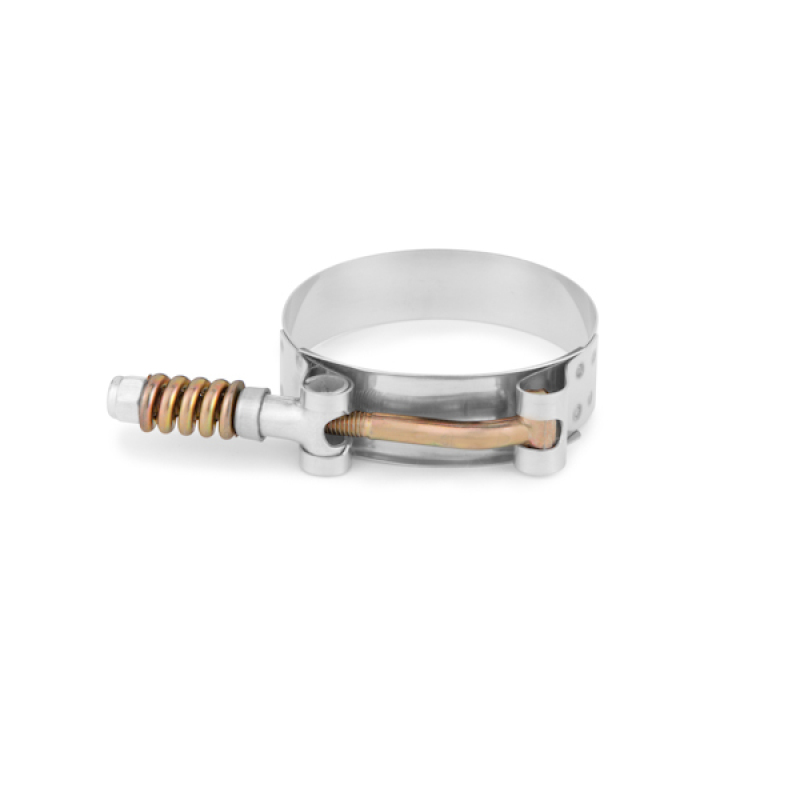

Mishimoto 2.5 Inch Stainless Steel Constant Tension T-Bolt Clamp
Mishimoto 2.5 Inch Stainless Steel Constant Tension T-Bolt Clamp
A$32.84
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 2.48in - 2.76in (63mm - 70mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.Like all Mishimoto clamps, this 2.48in - 2.76in (63mm - 70mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.
Product Overview
High-powered turbocharged vehicles need an air-charge system that can handle the demands of extreme heat and pressure.Failing clamps and blown boots are aggravating problems that can result in the end to a day at the drag strip or a delayed weekend trip.Mishimoto constant tension t-bolt clamps are constructed of 100% stainless steel and provide the reliability and durability you need to keep your vehicle on the road and out of the shop.These clamps are spring loaded to provide strong and consistent holding power.Mishimoto engineered these heavy-duty clamps to compensate for thermal expansion and to provide peace of mind for even the most extreme pressures.The Mishimoto constant tension t-bolt clamps are available in a variety of sizes from 2.5 to 4.These clamps feature an etched M logo and are backed by our lifetime warranty, so you know quality is guaranteed.
Features and Benefits
- Stainless steel construction resists corrosion
- Spring loaded for consistent holding power
- Locking nut keeps clamp from loosening
- More durable than traditional worm clamps
- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MMCLAMP-25T |
|---|---|
| Description: | Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, 2.5 |
| Install Difficulty: | 1 |
| Material: | Stainless Steel |
| OptionLabel: | Stainless Steel |
| Part Number: | misMMCLAMP-25T |
| SellingPoint01: | Securely clamps pipes, couplers, and hoses with an outer diameter from 2.48-in-2.76-in (63mm-70mm) |
| SellingPoint02: | Constant tension spring maintains clamping pressure through a wide range of temperatures |
| SellingPoint03: | Included self-locking nut prevents loosening with movement and vibration |
| SellingPoint04: | Stainless steel construction resists corrosion longer than zinc-plated clamps |
| SellingPoint05: | Optional wear-resistant titanium nitride gold coating provides unique engine bay styling |
| SellingPoint06: | Clamps sold individually |
| SellingPoint07: | Mishimoto Lifetime Warranty |
| SellingPoint08: | N/A |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| Size: | 2.5in |
| TechSpec Band Width (in): | 0.75 |
| TechSpec Clamp Style: | Constant Tension T-Bolt Clamp |
| TechSpec Includes: | (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty |
| TechSpec Material: | Stainless Steel |
| TechSpec Maximum Clamp Diameter (in): | 2.76 |
| TechSpec Minimum Clamp Diameter (in): | 2.48 |
| TechSpec Note: | If using this clamp, we recommend purchasing:--MMICP-AL-2750----MMICP-AL-2759----MMICP-AL-2751----MMICP-AL-30----MMICP-AL-39----MMICP-AL-31----MMICP-AL-40----MMICP-AL-41----MMICP-SS-151----MMICP-SS-1751 |
| TechSpec Recommended Tightening Torque: | 27 in-lbs (3 NM) |
| TechSpec SAE Number: | N/A |
Application Summary
Universal Fitment
Part Type
Hose Clamp
Features
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Included self-locking nut prevents loosening with movement and vibration
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.48-in-2.76-in (63mm-70mm)
Specifications
- Product Attributes - UPC
- 748666005662
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Hose Clamps
- Product Attributes - Product Line
- Mishimoto Tension T-Bolt Clamps
- Product Attributes - Hose Clamp Color
- Natural
- Product Attributes - Hose Clamp Style
- T-bolt
- Product Attributes - Hose Clamp Material
- Stainless steel
- Product Attributes - Hose Clamp Cover Included
- No
- Product Attributes - Manufacturer's Part Number
- MMCLAMP-25T
- Product Attributes - Largest Recommended Hose Diameter O.D.
- 2.760 in.
- Product Attributes - Smallest Recommended Hose Diameter O.D.
- 2.480 in.
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMCLAMP-25T |
| SFX Item ID | 4049560 |
| Supplier Item Code | 4049560 |
| Manufacturer SKU | MMCLAMP-25T |
| Manufacturer UPC | 748666005662 |
| Alternative References | mio-mmclamp-25t, MIMMMCLAMP-25T |
