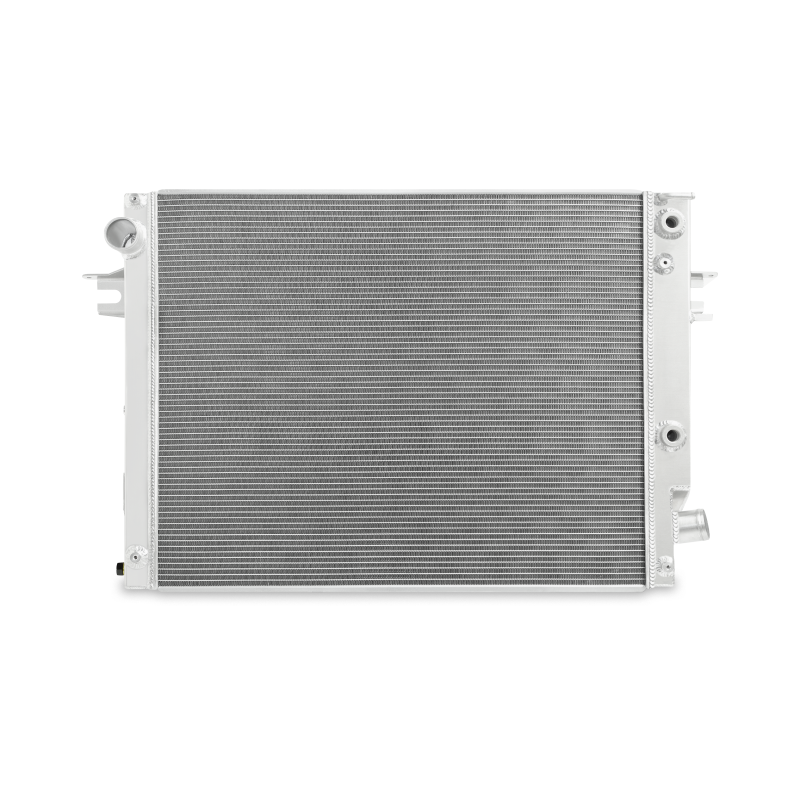

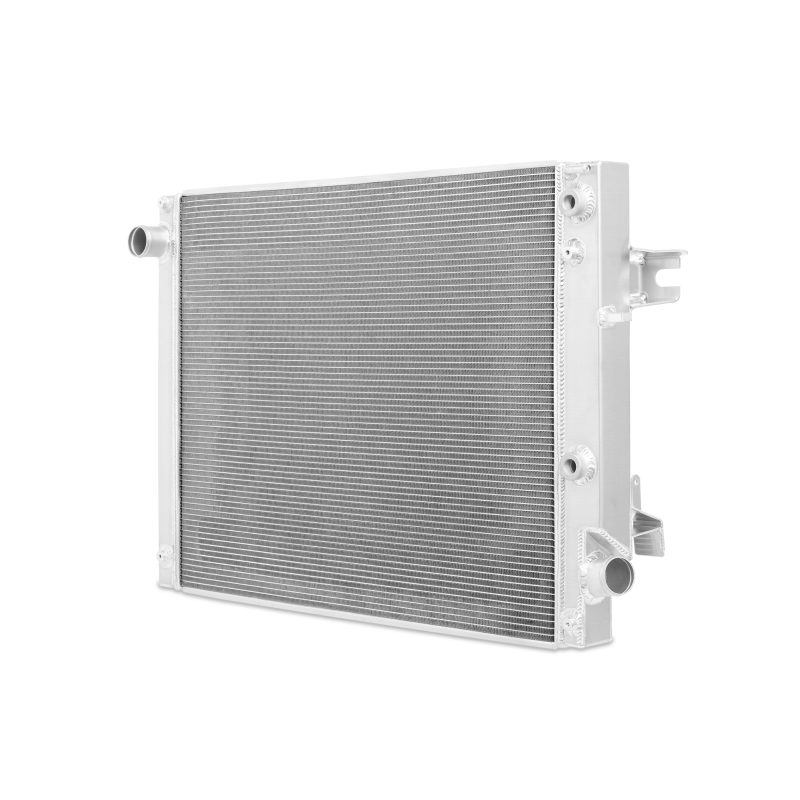

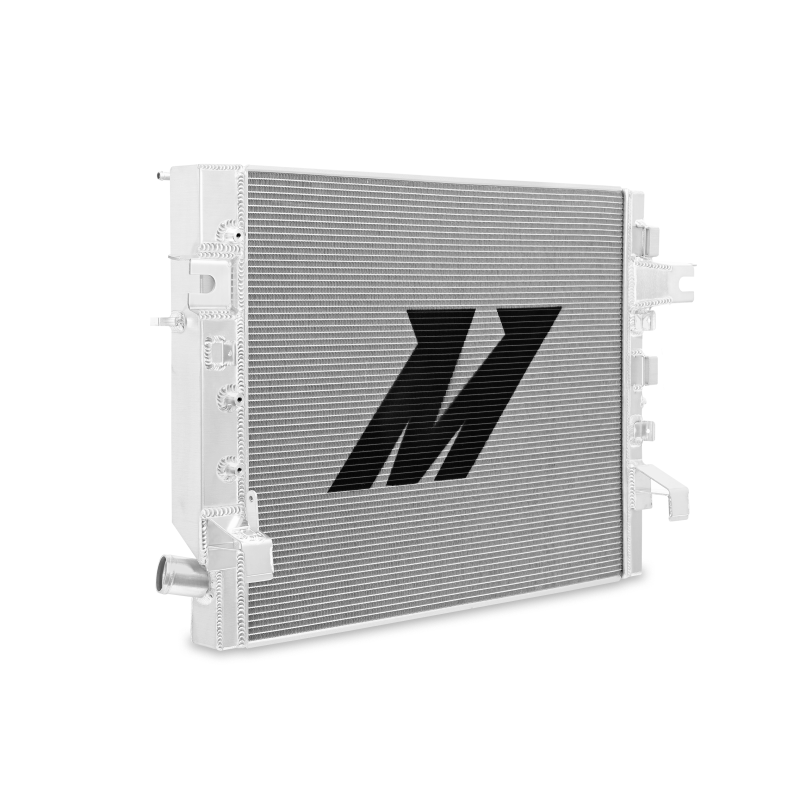

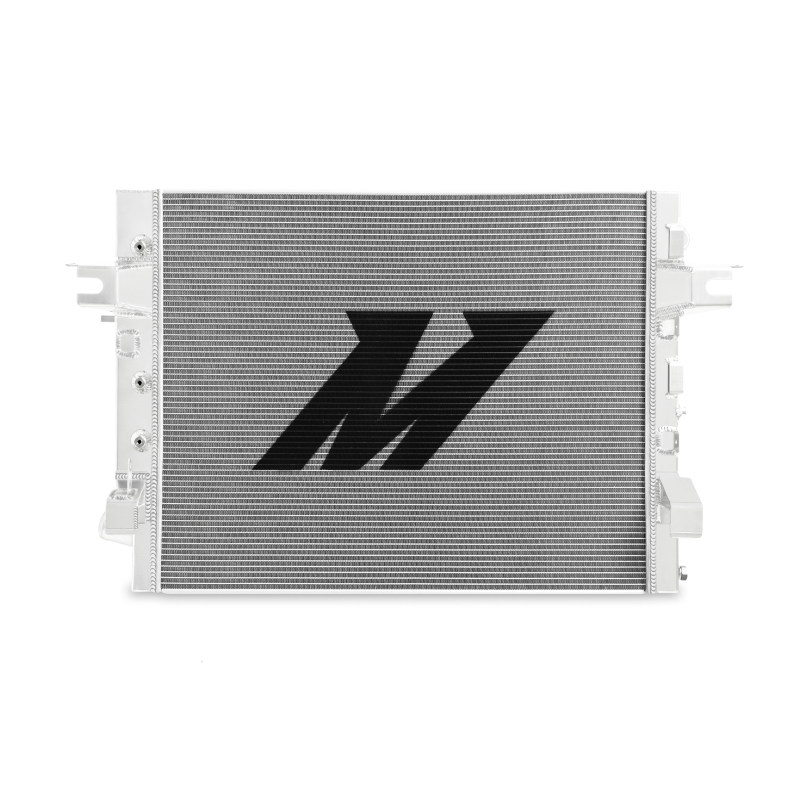

Mishimoto 13+ Ram 2500/3500 6.7L Cummins Aluminum Radiator
Mishimoto 13+ Ram 2500/3500 6.7L Cummins Aluminum Radiator
A$2,504.27
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them.The plastic end-tanks of the stock Ram radiator are prone to cracking and leaks over time. Add the increased stress and heat created by power-adding modifications and you have a recipe for disaster. But that's where Mishimoto can help.Our new 2013-2018 Ram 2500 / 3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully-aluminum, TIG-welded construction, this radiator is built as tough as your truck. A 63-percent increase in coolant capacity, and 41-percent larger surface area mean you can pile on the power and never worry about the heat.As with all of our products, this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?
Product Overview
The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them.The plastic end-tanks of the stock Ram radiator are prone to cracking and leaks over time. Add the increased stress and heat created by power-adding modifications and you have a recipe for disaster. But that's where Mishimoto can help.Our new 2013-2018 Ram 2500 / 3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully-aluminum, TIG-welded construction, this radiator is built as tough as your truck. A 63-percent increase in coolant capacity, and 41-percent larger surface area mean you can pile on the power and never worry about the heat.As with all of our products, this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?
Features and Benefits
- Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins
- Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling

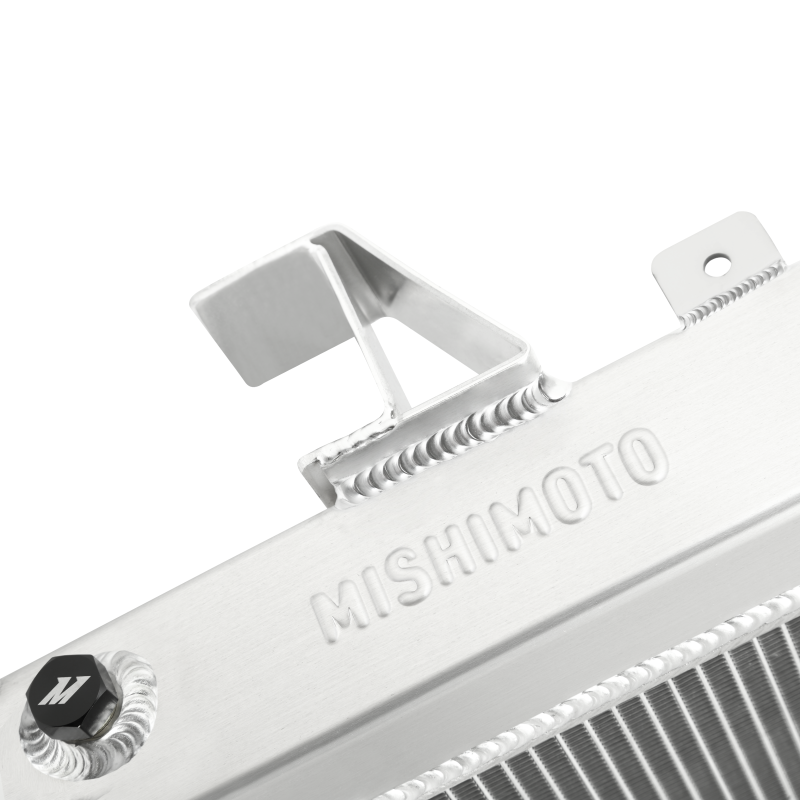

- Durable fully aluminum construction with TIG-welded end tanks and fittings
- Features a 2in thick, three-row core for efficient cooling under high loads
- Mishimoto Lifetime Warranty
Product Details
| Description: | Performance Aluminum Radiator |
|---|---|
| Install Difficulty: | 5 |
| Part Number: | misMMRAD-RAM-13 |
| SellingPoint01: | Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins |
| SellingPoint02: | Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling |
| SellingPoint03: | Durable fully aluminum construction with TIG-welded end tanks and fittings |
| SellingPoint04: | Features a 2-in thick, three-row core for efficient cooling under high loads |
| SellingPoint05: | Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint06: | Mishimoto Lifetime Warranty |
| SellingPoint07: | N/A |
| SellingPoint08: | N/A |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | 2013-2018 Ram 2500 6.7L Cummins--2013-2018 Ram 3500 6.7L Cummins |
| TechSpec Chassis Codes: | N/A |
| TechSpec Core Height (in): | 22 |
| TechSpec Core Length (in): | 26.75 |
| TechSpec Core Thickness (in): | 1.88 |
| TechSpec DPI: | N/A |
| TechSpec Drain Plug Thread Size: | M12 x 1.5 |
| TechSpec Engine Codes: | N/A |
| TechSpec Fluid Capacity (gal): | 7.94 . |
| TechSpec Includes: | Mishimoto Radiator--Magnetic Drain Plug--(2) Transmission Cooler Fittings-- M6 x 1.0 - 16mm Bolt--(3) M6 x 1.0 - 14mm Bolts--(4) M6 x 1.0 - 12mm Bolts--(3) M6 Flat Washers--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 1.61 |
| TechSpec Material: | Aluminum |
| TechSpec Note: | N/A |
| TechSpec Outlet (in): | 1.61 |
| TechSpec Overall Height (in): | 22 |
| TechSpec Overall Length (in): | 33.5 |
| TechSpec Overall Width (ins): | 2.75 |
| TechSpec Rows: | 3 |
Application Summary
2013-2017 Ram 2500 6.7 Liter, 2013-2017 Ram 3500 6.7 Liter
Part Type
Radiator
Features
- Durable fully aluminum construction with TIG-welded end tanks and fittings
- Features a 2-in thick, three-row core for efficient cooling under high loads
- Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
Specifications
- Product Attributes - UPC
- 811580030598
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Radiators
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Performance Radiators
- Product Attributes - Row Quantity
- 3
- Product Attributes - Inlet Location
- Upper driver side
- Product Attributes - Radiator Style
- Crossflow
- Product Attributes - Outlet Location
- Lower passenger side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Core Width (in.)
- 26.75 in.
- Product Attributes - Core Height (in.)
- 22.00 in.
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Overall Width (in.)
- 33.50 in.
- Product Attributes - Radiator Inlet Size
- 1.610 in.
- Product Attributes - Transmission Cooler
- Yes
- Product Attributes - Core Thickness (in.)
- 1.88 in.
- Product Attributes - Overall Height (in.)
- 22.00 in.
- Product Attributes - Radiator Outlet Size
- 1.610 in.
- Product Attributes - Radiator Cap Included
- No
- Product Attributes - Overall Thickness (in.)
- 2.75
- Product Attributes - Manufacturer's Part Number
- MMRAD-RAM-13
- Product Attributes - Trans Cooler Adapter Fittings Included
- Yes
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMRAD-RAM-13 |
| SFX Item ID | 4048762 |
| Supplier Item Code | 4048762 |
| Manufacturer SKU | MMRAD-RAM-13 |
| Manufacturer UPC | 811580030598 |
| Alternative References | mio-mmrad-ram-13, MIMMMRAD-RAM-13, 6.7L |
Brochures
Compatibility
2013-2017 Ram 2500 6.7 Liter, 2013-2017 Ram 3500 6.7 Liter
