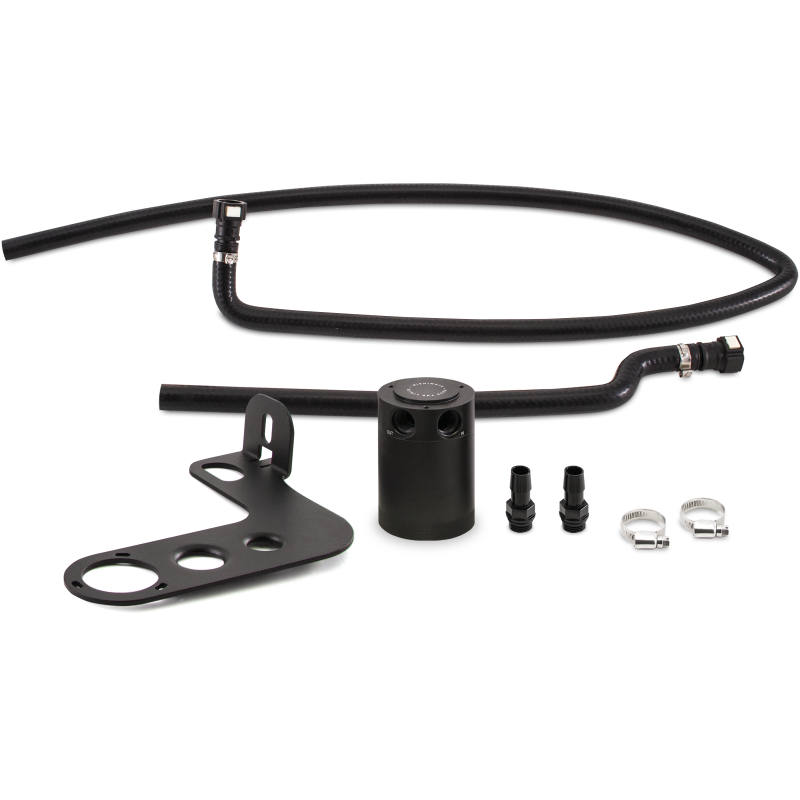

Mishimoto 10-15 Chevrolet Camaro SS (Automatic) Baffled Oil Catch Can Kit - Black
Mishimoto 10-15 Chevrolet Camaro SS (Automatic) Baffled Oil Catch Can Kit - Black
Sale ends in Calculating...
A$523.60 A$653.12
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The L99 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro?s intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake.The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course, this kit is backed by Mishimoto's Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what We've seen in the bottom of our catch cans, you won?t want that draining back into your oil either.
Product Overview
The L99 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro?s intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake.The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course, this kit is backed by Mishimoto's Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what We've seen in the bottom of our catch cans, you won?t want that draining back into your oil either.
Features and Benefits
- Direct fit for the 2010-2015 Chevrolet Camaro SS, automatic transmission
- Patent pending billet 6061 aluminum can sealed with Viton O-rings
- Helps reduce carbon buildup on intake valves
- Installs in under 30 minutes
- Mishimoto Lifetime Warranty
Product Details
| Color: | Black |
|---|---|
| Description: | Mishimoto 10-15 Chevrolet Camaro SS (Automatic) Baffled Oil Catch Can Kit - Black |
| Finish: | Powdercoated |
| Install Difficulty: | 2 |
| Installation Difficulty: | 2 |
| Material: | 6061 Aluminum |
| Part Number: | misMMBCC-CSS-10APBE |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop65_warning.jpg |
| Prop 65 Yes/No: | Yes |
| SellingPoint01: | Direct fit for the 2010-2015 Chevrolet Camaro SS, manual transmission |
| SellingPoint02: | Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter |
| SellingPoint03: | Installs in under 30 minutes |
| SellingPoint04: | Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits |
| SellingPoint05: | Works in conjunction with the stock air/oil separator to deliver maximum protection for your engine |
| SellingPoint06: | Catch can has a 2 oz. capacity for longer servicing intervals |
| SellingPoint07: | Silicone hoses include pre-attached, stock-style quick-disconnect fittings for a true plug-and-play install |
| SellingPoint08: | Defends intake system and essential components from oil blow-by |
| SellingPoint09: | Helps maintain proper octane levels to reduce potential detonation |
| SellingPoint10: | Billet 6061 aluminum sealed can is fully serviceable |
| SellingPoint11: | Internal air diverter increases air turbulence to improve oil separation |
| SellingPoint12: | Hoses available in black, blue, or red |
| SellingPoint13: | Mishimoto Lifetime Warranty |
| SellingPoint14: | Patent numberUS D884,760 S |
| SellingPoint15: | N/A |
| TechSpec Applications: | N/A |
| TechSpec Catch Can Diameter (in): | N/A |
| TechSpec Chassis Codes: | N/A |
| TechSpec Drain Plug Thread Size: | N/A |
| TechSpec Engine Codes: | N/A |
| TechSpec Height (in): | N/A |
| TechSpec Includes: | N/A |
| TechSpec Inlet: | N/A |
| TechSpec Installation Notes: | N/A |
| TechSpec Material: | N/A |
| TechSpec Note: | N/A |
| TechSpec Outlet: | N/A |
| Title: | Mishimoto Chevrolet Camaro SS Auto Baffled Oil Catch Can, 2010-2015 |
Part Type
Engine Oil Catch Can Kit
Features
- Installs in under 30 minutes
- Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
Specifications
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Manufacturer's Part Number
- MMBCC-CSS-10APBE
- Product Attributes - Part Type
- Oil Catch Cans
- Product Attributes - Product Line
- Mishimoto Baffled Oil Catch Cans
- Product Attributes - UPC
- 811580034701
- Product Attributes - Separator Tank Shape
- Round
- Product Attributes - Capacity
- 3 oz.
- Product Attributes - Separator Tank Material
- Aluminum
- Product Attributes - Separator Tank Finish
- Black
- Product Attributes - Fitting Attachment 1
- Female threads
- Product Attributes - Fitting Size 1
- 1/2 in. NPT
- Product Attributes - Fitting Attachment 2
- Female threads
- Product Attributes - Fitting Size 2
- 1/2 in. NPT
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes black silicone hoses, fittings, and bracket. Fits models with automatic transmission.
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMBCC-CSS-10APBE |
| SFX Item ID | 4049057 |
| Supplier Item Code | 4049057 |
| Manufacturer SKU | MMBCC-CSS-10APBE |
| Manufacturer UPC | 811580034701 |
| Alternative References | mio-bcccss10apbe, MIMMMBCC-CSS-10APBE |
