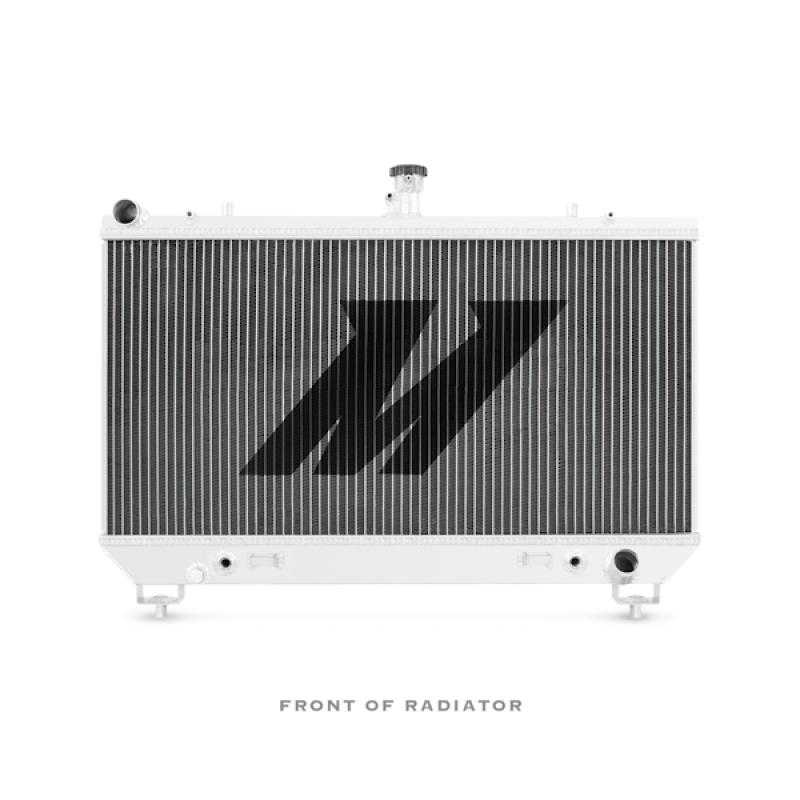

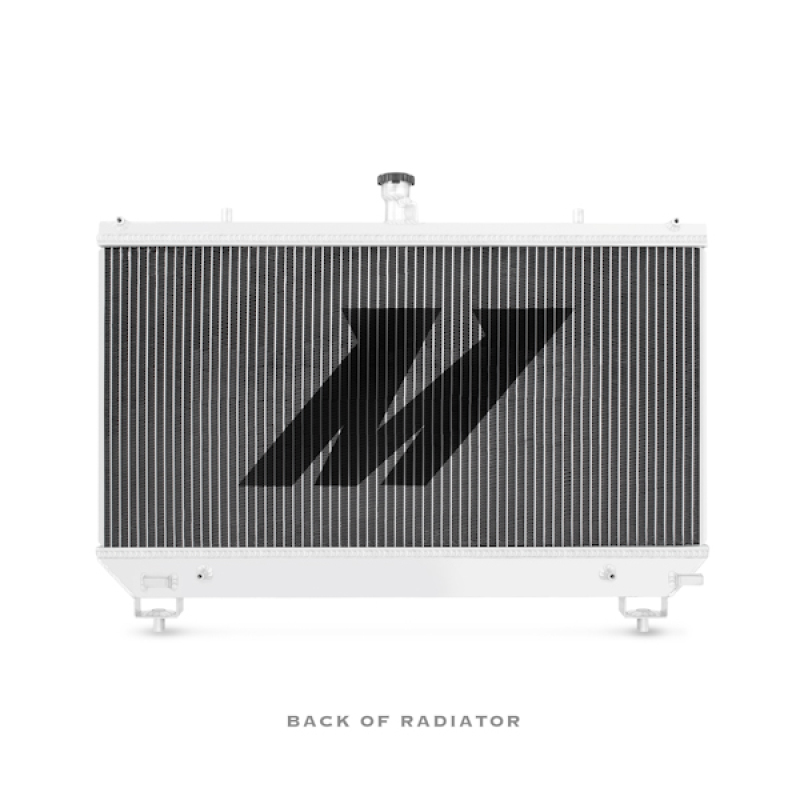

Mishimoto 10-11 Chevrolet Camaro SS V8 Aluminum Radiator

SKU: MISMMRAD-CSS-10

Radiators

MM Radiators - Alum...

Mishimoto

Mishimoto 10-11 Chevrolet Camaro SS V8 Aluminum Radiator

SKU: MISMMRAD-CSS-10

Radiators

MM Radiators - Alum...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by increasing cooling efficiency by 30%.Curious how much 30% really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20 F, that 30% is pretty impressive.With polished end tanks and all aluminum construction, the Mishimoto Camaro SS radiator looks as good as it performs!

Product Overview

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by increasing cooling efficiency by 30-percent.Curious how much 30-percent really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20F, that 30-percent is pretty impressive.With polished end tanks and all aluminum construction, the Mishimoto Camaro SS radiator looks as good as it performs!

Features and Benefits

Direct fit for the 2010-2011 Chevrolet Camaro SS
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
.5 gal of additional fluid capacity
Lowers radiator outlet temperatures by 20 F
20-percent greater cooling efficiency
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMRAD-CSS-10
Description:	Chevrolet Camaro Aluminum Radiator
Install Difficulty:	3
Installation Difficulty:	3
Material:	Aluminum
Part Number:	misMMRAD-CSS-10
SellingPoint01:	Direct fit for the 2010-2011 Chevrolet Camaro SS
SellingPoint02:	Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03:	Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
SellingPoint04:	.5 gal of additional fluid capacity
SellingPoint05:	Lowers radiator outlet temperatures by 20 F
SellingPoint06:	20-percent greater cooling efficiency
SellingPoint07:	Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08:	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09:	Mishimoto Lifetime Warranty
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Side:	Center
Size:	30.6in x 23.3in x 5.6in
TechSpec Applications:	2010-2011 Chevy Camaro SS (AT & MT)
TechSpec Chassis Codes:	Zeta
TechSpec Core Height (in):	15.1
TechSpec Core Length (in):	29.8
TechSpec Core Thickness (in):	2.2
TechSpec DPI:	13142
TechSpec Drain Plug Thread Size:	M12 x 1.5
TechSpec Engine Codes:	L99--LS3
TechSpec Fluid Capacity (gal):	3.34
TechSpec Includes:	Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in):	1.38
TechSpec Material:	Aluminum
TechSpec Note:	N/A
TechSpec Outlet (in):	1.38
TechSpec Overall Height (in):	30.6
TechSpec Overall Length (in):	23.3
TechSpec Overall Width (ins):	5.6
TechSpec Rows:	2

Application Summary

2010-2011 Chevrolet Camaro SS 6.2 Liter 6L80, 2010-2011 Chevrolet Camaro SS 6.2 Liter TR6060

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-16 03:07:50

Features

.5 gal of additional fluid capacity
Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
Full aluminum construction with durable, TIG-welded end tanks

Specifications

Product Attributes - UPC: 748666000186
Product Attributes - Brand: Mishimoto
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Radiators
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Performance Radiators
Product Attributes - Row Quantity: 2
Product Attributes - Inlet Location: Upper driver side
Product Attributes - Radiator Style: Downflow
Product Attributes - Outlet Location: Lower passenger side
Product Attributes - Radiator Finish: Natural
Product Attributes - Core Width (in.): 29.80 in.
Product Attributes - Core Height (in.): 15.10 in.
Product Attributes - Radiator Material: Aluminum
Product Attributes - Overall Width (in.): 30.60 in.
Product Attributes - Radiator Inlet Size: 1.380 in.
Product Attributes - Transmission Cooler: Yes
Product Attributes - Core Thickness (in.): 2.20 in.
Product Attributes - Overall Height (in.): 23.30 in.
Product Attributes - Radiator Outlet Size: 1.380 in.
Product Attributes - Radiator Cap Included: Yes
Product Attributes - Overall Thickness (in.): 5.60
Product Attributes - Manufacturer's Part Number: MMRAD-CSS-10
Product Attributes - Trans Cooler Adapter Fittings Included: No

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMRAD-CSS-10
SFX Item ID	4049374
Supplier Item Code	4049374
Manufacturer SKU	MMRAD-CSS-10
Manufacturer UPC	748666000186
Alternative References	mio-mmrad-css-10, MIMMMRAD-CSS-10
