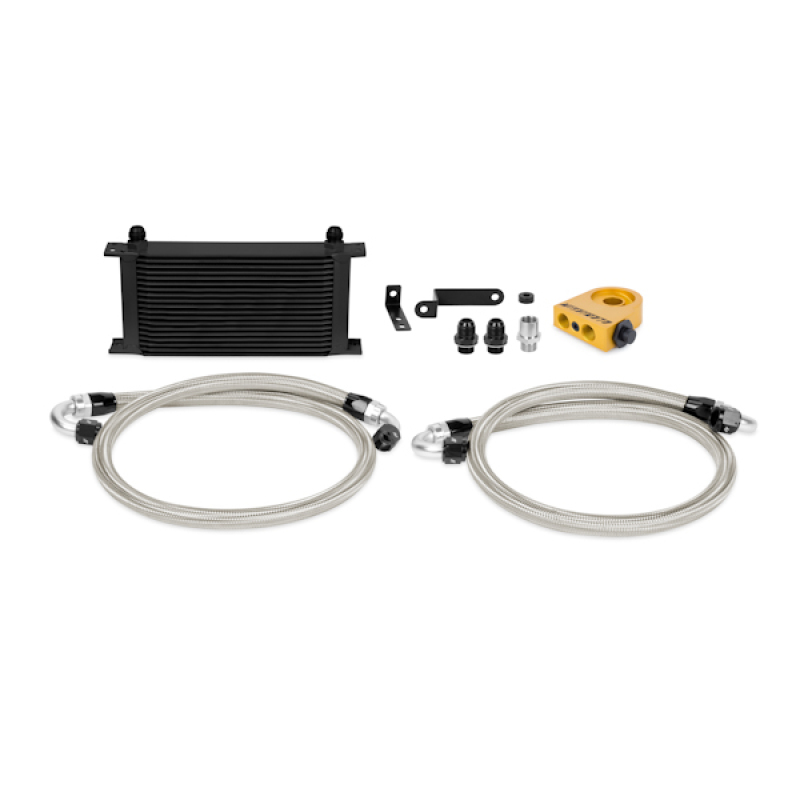

Mishimoto 08-14 WRX/STi Thermostatic Oil Cooler Kit - Black
Mishimoto 08-14 WRX/STi Thermostatic Oil Cooler Kit - Black
Sale ends in Calculating...
A$1,261.49 A$1,597.39
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Subaru WRX STI provides a great balance of power, handling, and reliability.As with any vehicle, controlling fluid temperatures will ensure consistent power and engine longevity.The Mishimoto 2008+ Subaru WRX STI direct-fit oil cooler kit is a great addition to any street or track STI.A large 19-row cooler mounts in the front bumper to provide optimal airflow and cooling efficiency.The included direct-fit mounting brackets and preassembled stainless steel lines with -10AN fittings will ensure an easy and hassle-free installation.This cooler is proven to reduce oil temperatures by 20in30 degrees while maintaining minimal pressure loss.For further heat protection this kit includes thermal reflective wrap for the oil lines, providing substantial heat deflection from the nearby exhaust.The Mishimoto Subaru WRX STI oil cooler kit can be customized to meet your needs with either a black or silver cooler and the option of a thermostatic sandwich plate for even greater oil temperature control.As with all our products, this kit includes the Mishimoto lifetime warranty.
Product Overview
The Subaru WRX STI provides a great balance of power, handling, and reliability.As with any vehicle, controlling fluid temperatures will ensure consistent power and engine longevity.The Mishimoto 2008+ Subaru WRX STI direct-fit oil cooler kit is a great addition to any street or track STI.A large 19-row cooler mounts in the front bumper to provide optimal airflow and cooling efficiency.The included direct-fit mounting brackets and preassembled stainless steel lines with -10AN fittings will ensure an easy and hassle-free installation.This cooler is proven to reduce oil temperatures by 20in30 degrees while maintaining minimal pressure loss.For further heat protection this kit includes thermal reflective wrap for the oil lines, providing substantial heat deflection from the nearby exhaust.The Mishimoto Subaru WRX STI oil cooler kit can be customized to meet your needs with either a black or silver cooler and the option of a thermostatic sandwich plate for even greater oil temperature control.As with all our products, this kit includes the Mishimoto lifetime warranty.
Features and Benefits
- 20+°F (16+°C) temperature drop
- Minimal pressure loss
- Direct fit for the STI
- This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
- Stealth Black and Sleek
- Silver cooler options
- Thermostatic option available
- Easily replaceable thermostat allows you to customize your fluid temperature
- Additional thermostats available in 160°F, 185°F, and 200°F
- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MMOCSTI08TBK |
|---|---|
| Color: | Black |
| Description: | Subaru WRX STI Thermostatic Oil Cooler Kit, Black |
| Install Difficulty: | 3 |
| Material: | Aluminum |
| OptionLabel: | Black Cooler, Thermostatic |
| Part Number: | misMMOC-STI-08TBK |
| SellingPoint01: | 20 F (16 C) temperature drop |
| SellingPoint02: | Minimal pressure loss |
| SellingPoint03: | Direct fit for the STI |
| SellingPoint04: | This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit |
| SellingPoint05: | Stealth Black and Sleek |
| SellingPoint06: | Silver cooler options |
| SellingPoint07: | Thermostatic option available |
| SellingPoint08: | Mishimoto Lifetime Warranty |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | N/A |
| TechSpec Caution: | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Chassis Codes: | GR--GV |
| TechSpec Core Construction: | N/A |
| TechSpec Core Height (in): | 5.43 |
| TechSpec Core Length (in): | 11 |
| TechSpec Core Thickness (in): | 1.97 |
| TechSpec Engine Codes: | EJ257 |
| TechSpec Fluid Capacity (qts): | N/A |
| TechSpec Includes: | Application Specific Mounting Brackets--19-Row Oil Cooler--3ft, 6in Stainless Steel Braided Hose with 150-degree -10AN Fittings--4ft Stainless Steel Braided Hose with 90-degree and 150-degree -10AN Fittings--M20 Thermostatic Sandwich Plate--M20 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--2ft of thermal reflective wrap--Mounting Hardware Set--Mishimoto Lifetime Warranty |
| TechSpec Inlet: | N/A |
| TechSpec Installation Notes: | Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Note: | This oil cooler kit will only work with models with the single scroll turbo and un-equal length exhaust manifold. Models with a twin scroll turbo and equal length exhaust manifold may not be compatible with this oil cooler kit. Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 lb-ft |
| TechSpec Outlet: | N/A |
| TechSpec Overall Height (in): | N/A |
| TechSpec Overall Length (in): | N/A |
| TechSpec Overall Width (in): | N/A |
| TechSpec Rows: | 19 |
Application Summary
2008-2014 Subaru Impreza WRX STI 2.5 Liter TY856, 2011-2014 Subaru Impreza WRX STI Limited 2.5 Liter TY856, 2010 Subaru Impreza WRX STI Special Edition 2.5 Liter TY856
Part Type
Engine Oil Cooler
Features
- 20 F (16 C) temperature drop
- Minimal pressure loss
- This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
Specifications
- Product Attributes - UPC
- 748354009675
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Includes mounting brackets, stainless steel braided hoses, thermostatically controlled oil filter sandwich plate, banjo fitting and mounting hardware.
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Fluid Coolers
- Product Attributes - Cooler Color
- Black anodized
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Oil Cooler Kits
- Product Attributes - Cooler Material
- Aluminum
- Product Attributes - Core Width (in.)
- 11.00 in.
- Product Attributes - Inlet Attachment
- Male threads
- Product Attributes - Core Height (in.)
- 5.43 in.
- Product Attributes - Fluid Cooler Type
- Engine oil
- Product Attributes - Outlet Attachment
- Male threads
- Product Attributes - Cooler Construction
- Heat sink
- Product Attributes - Overall Width (in.)
- 12.95 in.
- Product Attributes - Core Thickness (in.)
- 1.97 in.
- Product Attributes - Overall Height (in.)
- 6.44 in.
- Product Attributes - Number of Cooling Rows
- 19
- Product Attributes - Fluid Cooler Inlet Size
- -10 AN
- Product Attributes - Overall Thickness (in.)
- 1.97
- Product Attributes - Fluid Cooler Outlet Size
- -10 AN
- Product Attributes - Manufacturer's Part Number
- MMOC-STI-08TBK
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMOC-STI-08TBK |
| SFX Item ID | 4050032 |
| Supplier Item Code | 4050032 |
| Manufacturer SKU | MMOC-STI-08TBK |
| Manufacturer UPC | 748354009675 |
| Alternative References | mio-mmocsti08tbk, MIMMMOC-STI-08TBK |
Brochures
Compatibility
2008-2014 Subaru Impreza WRX STI 2.5 Liter TY856, 2011-2014 Subaru Impreza WRX STI Limited 2.5 Liter TY856, 2010 Subaru Impreza WRX STI Special Edition 2.5 Liter TY856
