Mahle
Mahle MS Piston Set Subaru EJ20/207 92mm Bore 75mm Stroke 130.4mm Rod 23mm Pin -12cc 8.5 CR Set of 4
mhl930020322
A$917.54

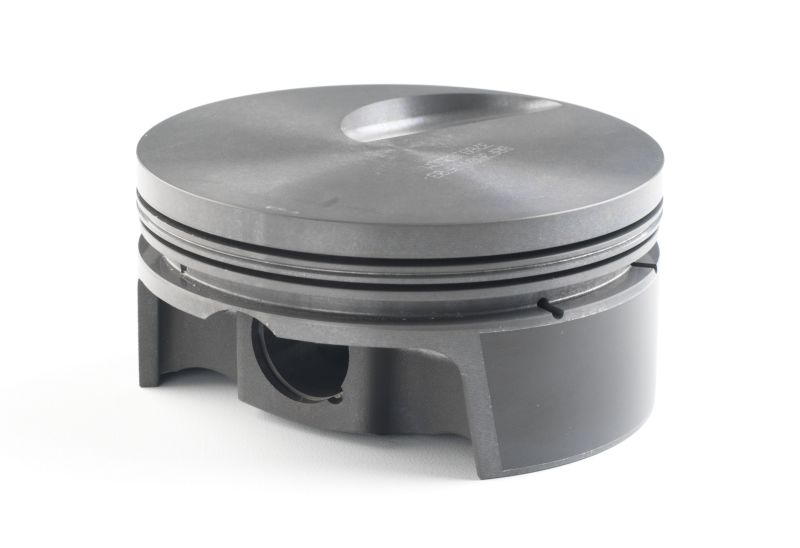

Mahle MS Piston Set Ford 557ci 4.44in Bore 4.500in Stroke 6.7in Rod 0.990 Pin -3cc 12.7 CR Set of 8
Mahle MS Piston Set Ford 557ci 4.44in Bore 4.500in Stroke 6.7in Rod 0.990 Pin -3cc 12.7 CR Set of 8
A$1,914.82
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
533cid 4.440 x 1.350CH, 4.300stroke,6.800rod,0.990pin,-3.3cc,564g,12.7CR, 2618
Product Overview
BIG BLOCK FORD for Std Valve Location CYLINDER HEADS (FoMoCo, Edelbrock, TFS, Blue Thunder, Etc.) 533cid 4.440 x 1.350CH, 4.300stroke,6.800rod,0.990pin,-3.3cc,564g,12.7CR, 2618.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | -3.3cc |
| Description: | Mahle MS Piston Set Ford 557ci 4.44in Bore 4.500in Stroke 6.7in Rod 0.990 Pin -3cc 12.7 CR Set of 8 |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930261640 |
| Pin Diameter: | 0.990 |
| Pin Length: | 2.520 |
| Pin Mass: | 148g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 564g |
| Piston Material: | Forged, 2618 |
| Piston Ring Thickness: | 1.5mm, 1.5mm, 3.0mm |
| Piston Style: | Flattop, w/ INT valve relief |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | Yes |
| Title: | Mahle Motorsport BIG BLOCK FORD for Std Valve Location CYLINDER HEADS (FoMoCo, Edelbrock, TFS, Blue Thunder, Etc.) 533cid 4.440 x 1.350CH, 4.300stroke,6.800rod,0.990pin,-3.3cc,564g,12.7CR, 2618 |
Application Summary
Ford Big Block 533 cu in.
Part Type
Engine Piston Kit
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- Yes
- Coatings:
- Phosphate plus Grafal
- Crown Vol:
- -3.3cc
- Description:
- Mahle MS Piston Set Ford 557ci 4.44in Bore 4.500in Stroke 6.7in Rod 0.990 Pin -3cc 12.7 CR Set of 8
- Package Qty:
- Sold as a set of 8
- Part Number:
- mhl930261640
- Pin Diameter:
- 0.990
- Pin Length:
- 2.520
- Pin Mass:
- 148g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- Yes
- Piston Kit Quantity:
- Sold as a set of 8
- Piston Mass:
- 564g
- Piston Material:
- Forged, 2618
- Piston Ring Thickness:
- 1.5mm, 1.5mm, 3.0mm
- Piston Style:
- Flattop, w/ INT valve relief
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- Yes
- Title:
- Mahle Motorsport BIG BLOCK FORD for Std Valve Location CYLINDER HEADS (FoMoCo, Edelbrock, TFS, Blue Thunder, Etc.) 533cid 4.440 x 1.350CH, 4.300stroke,6.800rod,0.990pin,-3.3cc,564g,12.7CR, 2618
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930261640 |
| SFX Item ID | 4176769 |
| Supplier Item Code | 4176769 |
| Manufacturer SKU | 930261640 |
| Manufacturer UPC | 930261640 |
| Alternative References | mle-930261640, 557ci, 4.44in, 4.500in, 6.7in, -3cc |
Compatibility
Ford Big Block 533 cu in.
