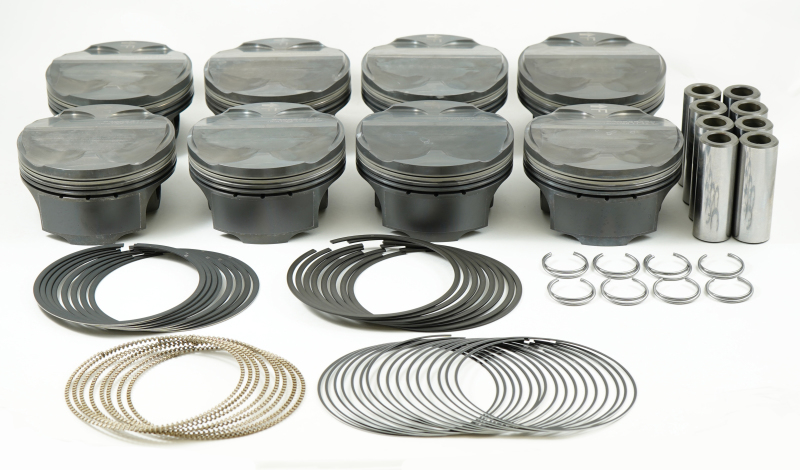

Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8

SKU: MHL930258140

Engine Piston Kit

MHL MS Piston Sets - 8 Cyl...

Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8
Mahle

Mahle

Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8

SKU: MHL930258140

Engine Piston Kit

MHL MS Piston Sets - 8 Cyl...

A$2,146.34
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

304cid 3.640 x 1.167CH, 3.650stroke,5.933rod,0.866pin,10.2cc,402g,12.6CR, 2618

Product Overview

Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8

Product Details

California Proposition 65:WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm
Clip Style:Round Wire
Clips Included:Yes
Coatings:Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol:10.2cc
Description:Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8
Package Qty:Sold as a set of 8
Part Number:mhl930258140
Pin Diameter:0.866
Pin Length:2.405
Pin Mass:118g
Pin Material:Steel
Pin Style:Floating
Pins Included:Yes
Piston Kit Quantity:Sold as a set of 8
Piston Mass:400g
Piston Material:Forged, 2618
Piston Ring Thickness:1.0mm, 1.0mm, 2.0mm
Piston Style:Dome, With 4 valve reliefs
Prop 65 (C, R or CR):CR
Prop 65 - Short Label:prop-65-warning-label_text_image.jpg
Prop 65 Yes/No:Yes
Rings Included:Yes
Title:MAHLE Motorsports - 304cid 3.640 x 1.167CH,3.650stroke,5.933rod,0.866pin,10.2cc,400g,12.6CR, 2618

Application Summary

Ford Coyote 304 cu in.

Part Type

Engine Piston Kit

Data: v4.2 - Upd: 2026-10-14 20:14:54

Specifications

California Proposition 65:
WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm
Clip Style:
Round Wire
Clips Included:
Yes
Coatings:
Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol:
10.2cc
Description:
Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8
Package Qty:
Sold as a set of 8
Part Number:
mhl930258140
Pin Diameter:
0.866
Pin Length:
2.405
Pin Mass:
118g
Pin Material:
Steel
Pin Style:
Floating
Pins Included:
Yes
Piston Kit Quantity:
Sold as a set of 8
Piston Mass:
400g
Piston Material:
Forged, 2618
Piston Ring Thickness:
1.0mm, 1.0mm, 2.0mm
Piston Style:
Dome, With 4 valve reliefs
Prop 65 (C, R or CR):
CR
Prop 65 - Short Label:
Prop 65 Yes/No:
Yes
Rings Included:
Yes
Title:
MAHLE Motorsports - 304cid 3.640 x 1.167CH,3.650stroke,5.933rod,0.866pin,10.2cc,400g,12.6CR, 2618

Reference Information

Brand Name/s Mahle
StreetFX SKU mhl930258140
SFX Item ID 4177059
Supplier Item Code 4177059
Manufacturer SKU 930258140
Manufacturer UPC 930258140
Alternative References mle-930258140, 304ci, 3.640in, 3.65in, 5.933in, 10cc

Compatibility

Ford Coyote 304 cu in.
