Mahle
Mahle MS Piston Set Subaru EJ20/207 92mm Bore 75mm Stroke 130.4mm Rod 23mm Pin -12cc 8.5 CR Set of 4
mhl930020322
A$917.54

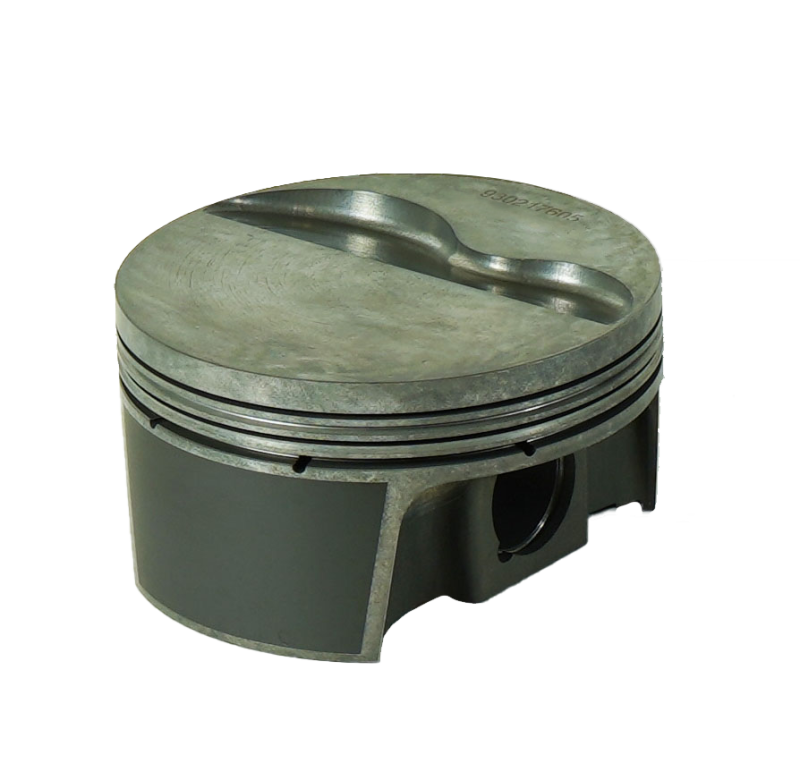

Mahle MS Piston GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR - Single
Mahle MS Piston GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR - Single
A$199.95
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
347cid 3.905 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,410g,10.2CR, 4032, SINGLE PISTON
Product Overview
LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads SINGLE PISTON (930217605) 3.905 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,410g.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | N |
| Crown Vol: | -4.1cc |
| Description: | Mahle MS Piston GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR - Single |
| Package Qty: | Sold as a set of 1 |
| Part Number: | mhl930217605-1 |
| Pin Diameter: | 0.945 |
| Pin Length: | 2.287 |
| Pin Mass: | 125g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | N |
| Piston Mass: | 410g |
| Piston Material: | Forged, 4032 |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Style: | Flattop, w/ 2 valve reliefs |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | N |
| Title: | Mahle Motorsport LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads SINGLE PISTON (930217605) 3.905 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,410g |
Application Summary
Chevrolet LS 347 cu in.
Part Type
Engine Piston
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- N
- Crown Vol:
- -4.1cc
- Description:
- Mahle MS Piston GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR - Single
- Package Qty:
- Sold as a set of 1
- Part Number:
- mhl930217605-1
- Pin Diameter:
- 0.945
- Pin Length:
- 2.287
- Pin Mass:
- 125g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- N
- Piston Mass:
- 410g
- Piston Material:
- Forged, 4032
- Piston Ring Thickness:
- 1.0mm, 1.0mm, 2.0mm
- Piston Style:
- Flattop, w/ 2 valve reliefs
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- N
- Title:
- Mahle Motorsport LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads SINGLE PISTON (930217605) 3.905 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,410g
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930217605-1 |
| SFX Item ID | 4177835 |
| Supplier Item Code | 4177835 |
| Manufacturer SKU | 930217605-1 |
| Manufacturer UPC | N/A |
| Alternative References | 347ci, 3.905in, 3.622in, 6.098in, -4cc |
Compatibility
Chevrolet LS 347 cu in.
