Mahle
Mahle MS Piston Set Subaru EJ20/207 92mm Bore 75mm Stroke 130.4mm Rod 23mm Pin -12cc 8.5 CR Set of 4
mhl930020322
A$917.54

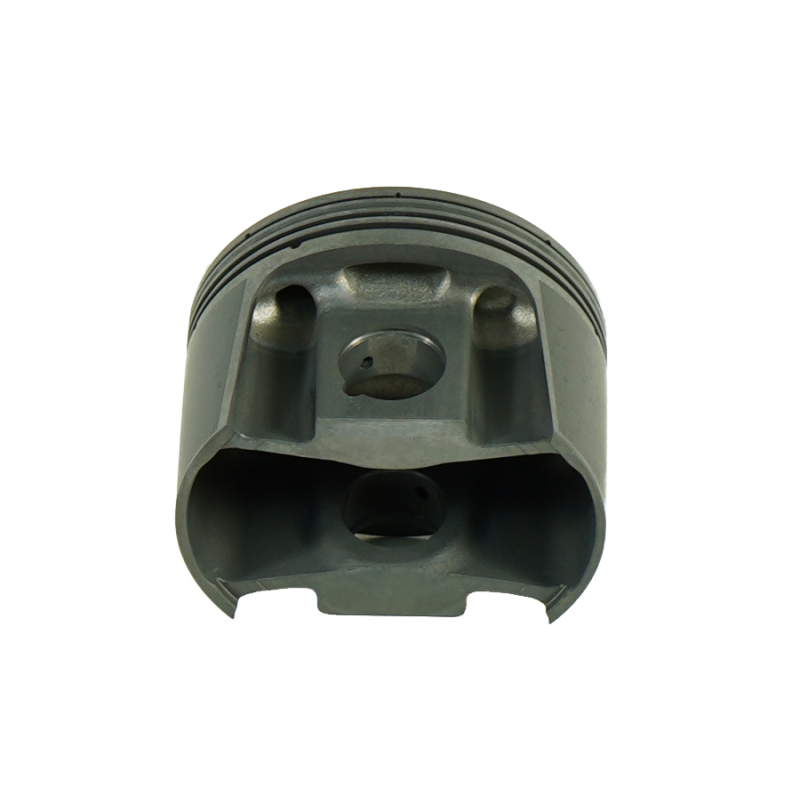

Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single
Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single
A$244.60
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
315cid 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,421g,9.9CR, 4032, SINGLE PISTON
Product Overview
SMALL BLOCK CHEVY 305ci FLAT TOP Gasported / Asymmetrical Valve Pockets PowerPak Plus SINGLE PISTON (930205596) 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,421g.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | N |
| Crown Vol: | -1.6cc |
| Description: | Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single |
| Package Qty: | Sold as a set of 1 |
| Part Number: | mhl930205596-1 |
| Pin Diameter: | 0.927 |
| Pin Length: | 2.287 |
| Pin Mass: | 93g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | N |
| Piston Mass: | 421g |
| Piston Material: | Forged, 4032 |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Style: | Flattop, w/ 2 valve reliefs |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | N |
| Title: | Mahle Motorsport SMALL BLOCK CHEVY 305ci FLAT TOP Gasported / Asymmetrical Valve Pockets PowerPak Plus SINGLE PISTON (930205596) 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,421g |
Application Summary
Chevrolet Small Block 315 cu in.
Part Type
Engine Piston
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- N
- Crown Vol:
- -1.6cc
- Description:
- Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single
- Package Qty:
- Sold as a set of 1
- Part Number:
- mhl930205596-1
- Pin Diameter:
- 0.927
- Pin Length:
- 2.287
- Pin Mass:
- 93g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- N
- Piston Mass:
- 421g
- Piston Material:
- Forged, 4032
- Piston Ring Thickness:
- 1.0mm, 1.0mm, 2.0mm
- Piston Style:
- Flattop, w/ 2 valve reliefs
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- N
- Title:
- Mahle Motorsport SMALL BLOCK CHEVY 305ci FLAT TOP Gasported / Asymmetrical Valve Pockets PowerPak Plus SINGLE PISTON (930205596) 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,421g
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930205596-1 |
| SFX Item ID | 4177744 |
| Supplier Item Code | 4177744 |
| Manufacturer SKU | 930205596-1 |
| Manufacturer UPC | N/A |
| Alternative References | 315ci, 3.796in, 3.480in, 5.700in, -1cc |
Compatibility
Chevrolet Small Block 315 cu in.
