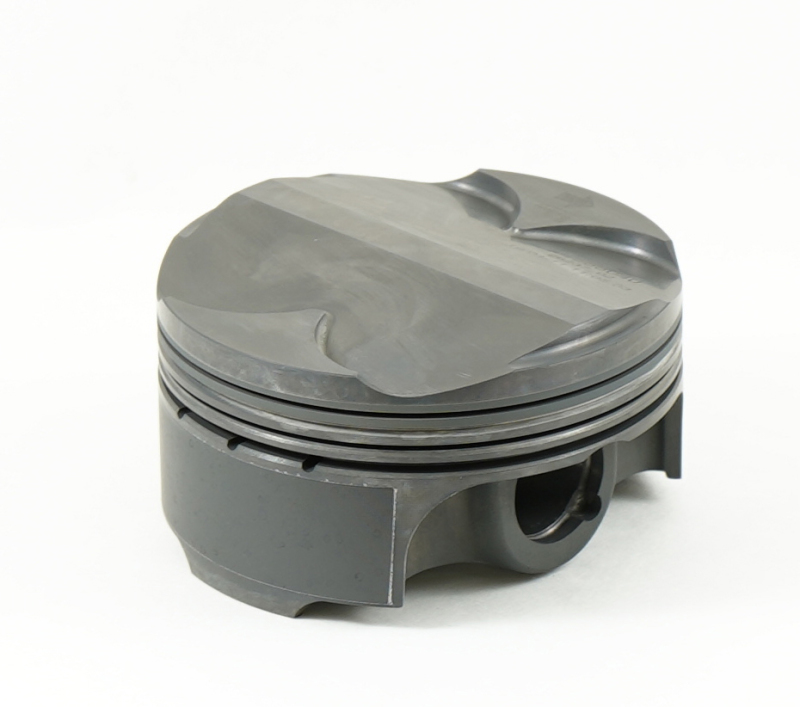

Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single
Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single
A$211.33
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g,10.1CR, M142P, SINGLE PISTON
Product Overview
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930134030) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | N |
| Crown Vol: | -4.5cc |
| Description: | Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single |
| Package Qty: | Sold as a set of 1 |
| Part Number: | mhl930134030-1 |
| Pin Diameter: | 0.866 |
| Pin Length: | 2.405 |
| Pin Mass: | 118g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | N |
| Piston Mass: | 383g |
| Piston Material: | Forged, M142P |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Style: | Dish, w/ 4 valve reliefs |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | N |
| Title: | Mahle Motorsport FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930134030) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g |
Application Summary
Ford Coyote/Voodoo 302 cu in.
Part Type
Engine Piston
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- N
- Crown Vol:
- -4.5cc
- Description:
- Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single
- Package Qty:
- Sold as a set of 1
- Part Number:
- mhl930134030-1
- Pin Diameter:
- 0.866
- Pin Length:
- 2.405
- Pin Mass:
- 118g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- N
- Piston Mass:
- 383g
- Piston Material:
- Forged, M142P
- Piston Ring Thickness:
- 1.0mm, 1.0mm, 2.0mm
- Piston Style:
- Dish, w/ 4 valve reliefs
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- N
- Title:
- Mahle Motorsport FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930134030) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930134030-1 |
| SFX Item ID | 4177733 |
| Supplier Item Code | 4177733 |
| Manufacturer SKU | 930134030-1 |
| Manufacturer UPC | N/A |
| Alternative References | 302ci, 3.630in, 3.65in, 5.933in, -5cc |
Compatibility
Ford Coyote/Voodoo 302 cu in.
