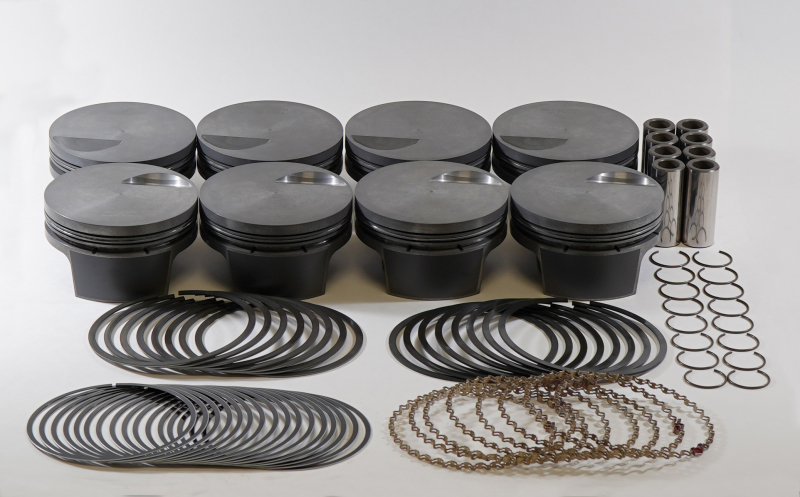

Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8
Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8
A$1,914.66
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032
Product Overview
BIG BLOCK CHEVY 502 MARINE "DROP IN" REPLACEMENT 509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | -3.0cc |
| Description: | Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8 |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930077100 |
| Pin Diameter: | 0.990 |
| Pin Length: | 2.520 |
| Pin Mass: | 148g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 661g |
| Piston Material: | Forged, 4032 |
| Piston Ring Thickness: | 1/16, 1/16, 3/16 |
| Piston Style: | Flattop, w/ INT valve relief |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | Yes |
| Title: | Mahle Motorsport BIG BLOCK CHEVY 502 MARINE inDROP INin REPLACEMENT 509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032 |
Application Summary
Chevy Big Block 509 cu in.
Part Type
Engine Piston Kit
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- Yes
- Coatings:
- Phosphate plus Grafal
- Crown Vol:
- -3.0cc
- Description:
- Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8
- Package Qty:
- Sold as a set of 8
- Part Number:
- mhl930077100
- Pin Diameter:
- 0.990
- Pin Length:
- 2.520
- Pin Mass:
- 148g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- Yes
- Piston Kit Quantity:
- Sold as a set of 8
- Piston Mass:
- 661g
- Piston Material:
- Forged, 4032
- Piston Ring Thickness:
- 1/16, 1/16, 3/16
- Piston Style:
- Flattop, w/ INT valve relief
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- Yes
- Title:
- Mahle Motorsport BIG BLOCK CHEVY 502 MARINE inDROP INin REPLACEMENT 509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930077100 |
| SFX Item ID | 4176811 |
| Supplier Item Code | 4176811 |
| Manufacturer SKU | 930077100 |
| Manufacturer UPC | 930077100 |
| Alternative References | mle-930077100, 509ci, 4.50in, 4in, 6.135in, -3cc |
Compatibility
Chevy Big Block 509 cu in.
