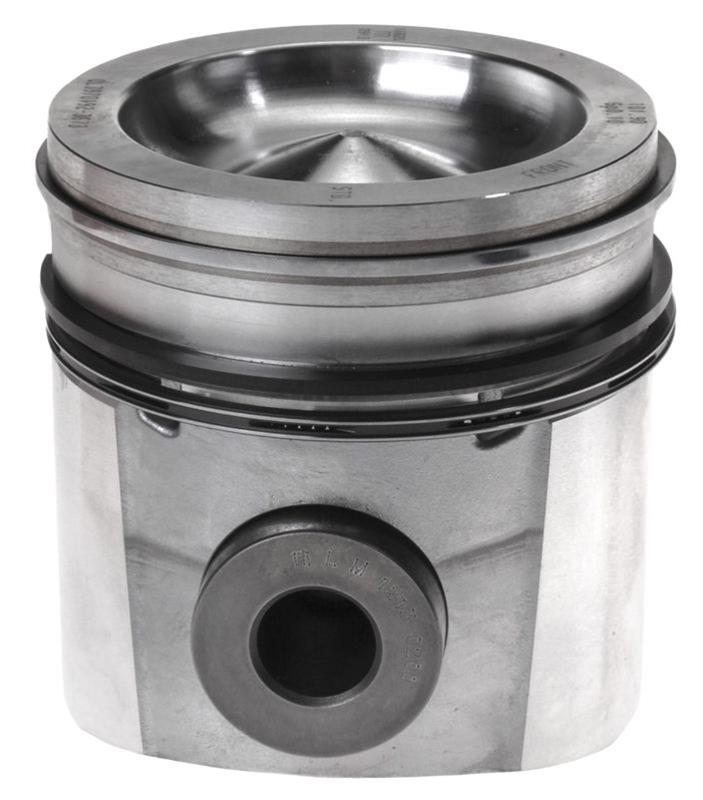

Mahle Original OE Replacement Pistons 224-3673.020 Piston - CUMMINS B 5.9L 020 05-HO 17.1:1 CR VIN C ENG CODE ETH
Mahle Original OE Replacement Pistons 224-3673.020 Piston - CUMMINS B 5.9L 020 05-HO 17.1:1 CR VIN C ENG CODE ETH
A$355.51
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- MAHLE Original
- Product Attributes - Manufacturer's Part Number
- 224-3673.020
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Mahle Original OE Replacement Pistons
- Product Attributes - UPC
- 027067821058
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.022 in.
- Product Attributes - Bore (mm)
- 102.159mm
- Product Attributes - Stroke
- 4.720 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Rod Length
- 7.559 in.
- Product Attributes - Piston Style
- Dish, with no valve reliefs
- Product Attributes - Piston Material
- Cast aluminum
- Product Attributes - Compression Height (in.)
- 2.818 in.
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 1.575 in.
- Product Attributes - Piston Ring Thickness
- 3.00mm x 2.38mm x 4.00mm
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Mahle OE |
|---|---|
| StreetFX SKU | mhl224-3673.020 |
| SFX Item ID | 4843562 |
| Supplier Item Code | 4843562 |
| Manufacturer SKU | 224-3673.020 |
| Manufacturer UPC | 27067821058 |
| Alternative References | MAH-2243673020, 5.9L, 05-HO |
