Mahle OE
Mahle OE GM 3.6L LFX 12-15 Left and Right Pistons STD Piston Set (Set of 6)
mhl2243929
A$733.28

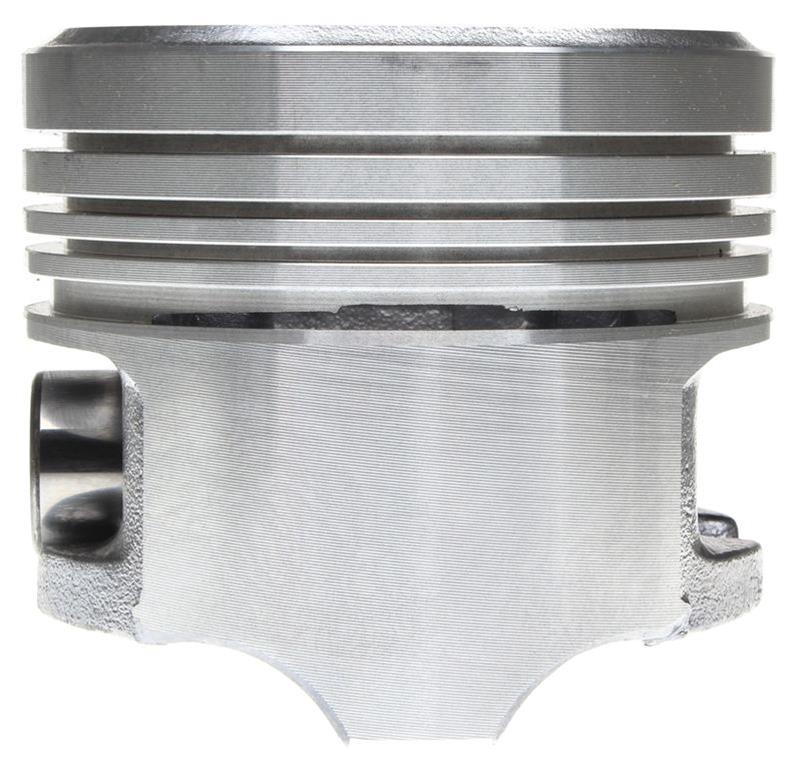

Mahle Original OE Replacement Pistons 224-3101 Piston - Chevy Trk./GMC V8, 366 6.0L 1991-93 EXCEPT H5D
Mahle Original OE Replacement Pistons 224-3101 Piston - Chevy Trk./GMC V8, 366 6.0L 1991-93 EXCEPT H5D
A$1,048.47
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- MAHLE Original
- Product Attributes - Manufacturer's Part Number
- 224-3101
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Mahle Original OE Replacement Pistons
- Product Attributes - UPC
- 725975497203
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 3.935 in.
- Product Attributes - Bore (mm)
- 99.949mm
- Product Attributes - Stroke
- 3.760 in.
- Product Attributes - Engine Stroke Type
- Stock

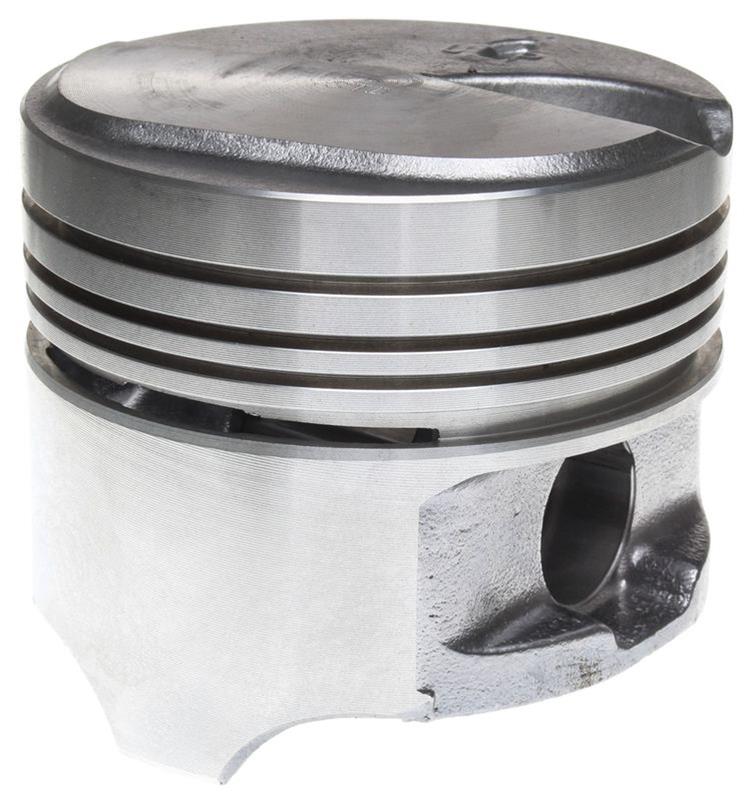

- Product Attributes - Piston Style
- Dome, with single valve relief
- Product Attributes - Piston Material
- Cast aluminum
- Product Attributes - Compression Height (in.)
- 2.255 in.
- Product Attributes - Wrist Pin Style
- Press-fit
- Product Attributes - Wrist Pin Retainers Included
- No
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 3/32 in. x 5/64 in. x 3/16 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity

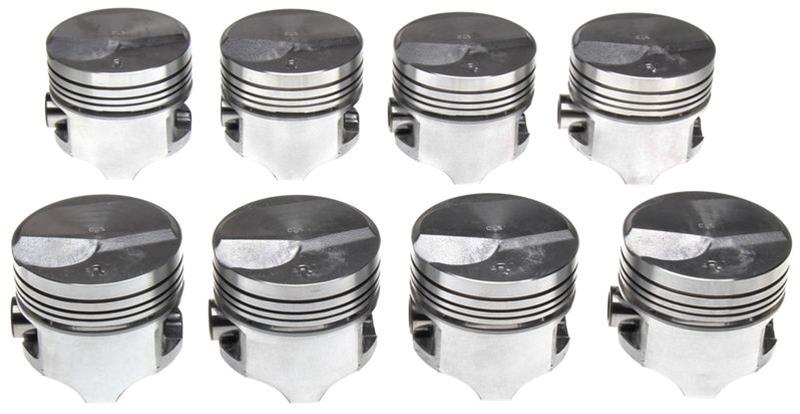

- Sold as a set of 8.
Reference Information
| Brand Name/s | Mahle OE |
|---|---|
| StreetFX SKU | mhl224-3101 |
| SFX Item ID | 4839451 |
| Supplier Item Code | 4839451 |
| Manufacturer SKU | 224-3101 |
| Manufacturer UPC | 725975497203 |
| Alternative References | MAH-2243101, V8, 6.0L, H5D |
