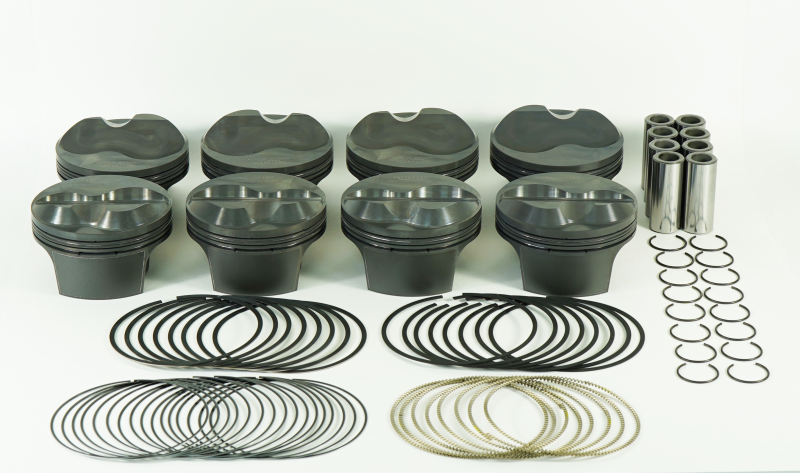

Mahle MS Piston Set Chevy SB 403ci 4.135in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.9CR
Mahle MS Piston Set Chevy SB 403ci 4.135in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.9CR
A$2,197.85
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Piston and Ring - PowerPak - Forged - 4.135 in Bore - 1.0 x 1.0 x 2.0 mm Ring Grooves - Plus 9.00 cc - Small Block Chevy - Kit
Product Overview
Mahle MS Piston Set Chevy SB 403ci 4.135in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.9CR
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | 9.0cc |
| Description: | Mahle MS Piston Set Chevy SB 403ci 4.135in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.9CR |
| Lateral Gas Ports: | Yes |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl197754535 |
| Pin Diameter: | 0.927 |
| Pin Length: | 2.287 |
| Pin Mass: | 118g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 450g |
| Piston Material: | Forged, 2618 |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Style: | Dome, With 2 valve reliefs |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | Yes |
| Title: | Mahle Motorsport SMALL BLOCK CHEVY 23 degree DOME Gasported / Asymmetrical Valve Pockets PowerPak Plus 403cid 4.135 x 1.125CH, 3.500stroke,6.125rod,0.927pin,9.0cc,450g,13.1CR, 2618 |
Application Summary
Chevrolet Small Block 403 cu in.
Part Type
Engine Piston Set
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- Yes
- Coatings:
- Phosphate plus Grafal
- Crown Vol:
- 9.0cc
- Description:
- Mahle MS Piston Set Chevy SB 403ci 4.135in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.9CR
- Lateral Gas Ports:
- Yes
- Package Qty:
- Sold as a set of 8
- Part Number:
- mhl197754535
- Pin Diameter:
- 0.927
- Pin Length:
- 2.287
- Pin Mass:
- 118g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- Yes
- Piston Kit Quantity:
- Sold as a set of 8
- Piston Mass:
- 450g
- Piston Material:
- Forged, 2618
- Piston Ring Thickness:
- 1.0mm, 1.0mm, 2.0mm
- Piston Style:
- Dome, With 2 valve reliefs
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- Yes
- Title:
- Mahle Motorsport SMALL BLOCK CHEVY 23 degree DOME Gasported / Asymmetrical Valve Pockets PowerPak Plus 403cid 4.135 x 1.125CH, 3.500stroke,6.125rod,0.927pin,9.0cc,450g,13.1CR, 2618
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl197754535 |
| SFX Item ID | 4176695 |
| Supplier Item Code | 4176695 |
| Manufacturer SKU | 197754535 |
| Manufacturer UPC | 197754535 |
| Alternative References | mle-197754535, MAH197754535, 403ci, 4.135in, 9cc, 13.9CR |
Compatibility
Chevrolet Small Block 403 cu in.
