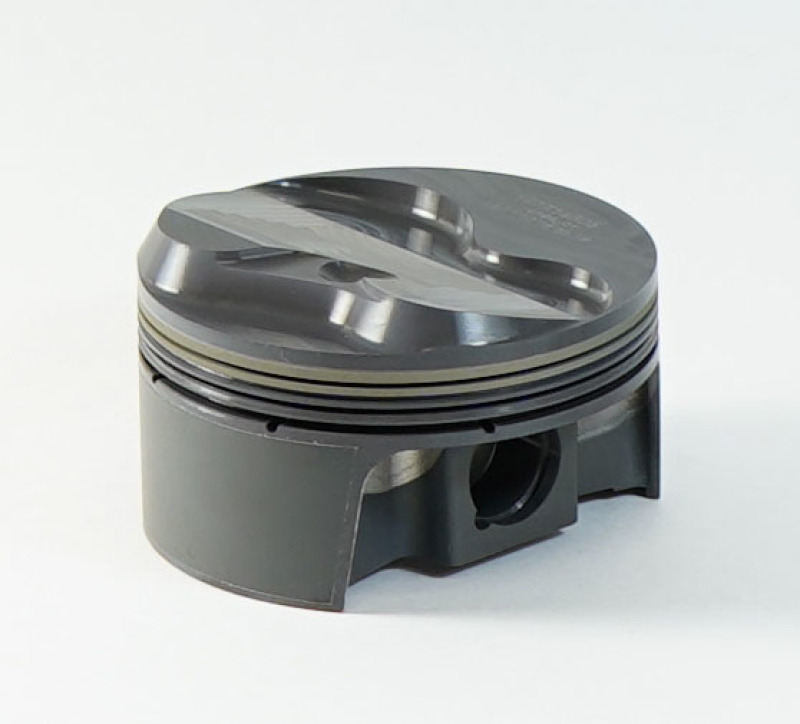

Mahle MS Piston GM LS 370ci 4.030in Bore 3.622in Stk 6.125in Rod .927 Pin 12cc 12.0 CR - Single
Mahle MS Piston GM LS 370ci 4.030in Bore 3.622in Stk 6.125in Rod .927 Pin 12cc 12.0 CR - Single
A$203.11
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
370cid 4.030 x 1.304CH, 3.622stroke,6.125rod,0.927pin,12.0cc,477g,12.4CR, 2618, SINGLE PISTON
Product Overview
LS 6.0L & 6.2L DOME - compatable with LS3 / L92 rectangular port heads SINGLE PISTON (197714830) 4.030 x 1.304CH, 3.622stroke,6.125rod,0.927pin,12.0cc,477g.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | N |
| Crown Vol: | 12.0cc |
| Description: | Mahle MS Piston GM LS 370ci 4.030in Bore 3.622in Stk 6.125in Rod .927 Pin 12cc 12.0 CR - Single |
| Package Qty: | Sold as a set of 1 |
| Part Number: | mhl197714830-1 |
| Pin Diameter: | 0.927 |
| Pin Length: | 2.287 |
| Pin Mass: | 118g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | N |
| Piston Mass: | 477g |
| Piston Material: | Forged, 2618 |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Style: | Dome, w/ 2 valve reliefs |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | N |
| Title: | Mahle Motorsport LS 6.0L & 6.2L DOME - compatable with LS3 / L92 rectangular port heads SINGLE PISTON (197714830) 4.030 x 1.304CH, 3.622stroke,6.125rod,0.927pin,12.0cc,477g |
Application Summary
Chevrolet LS 370 cu in.
Part Type
Engine Piston
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- N
- Crown Vol:
- 12.0cc
- Description:
- Mahle MS Piston GM LS 370ci 4.030in Bore 3.622in Stk 6.125in Rod .927 Pin 12cc 12.0 CR - Single
- Package Qty:
- Sold as a set of 1
- Part Number:
- mhl197714830-1
- Pin Diameter:
- 0.927
- Pin Length:
- 2.287
- Pin Mass:
- 118g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- N
- Piston Mass:
- 477g
- Piston Material:
- Forged, 2618
- Piston Ring Thickness:
- 1.0mm, 1.0mm, 2.0mm
- Piston Style:
- Dome, w/ 2 valve reliefs
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- N
- Title:
- Mahle Motorsport LS 6.0L & 6.2L DOME - compatable with LS3 / L92 rectangular port heads SINGLE PISTON (197714830) 4.030 x 1.304CH, 3.622stroke,6.125rod,0.927pin,12.0cc,477g
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl197714830-1 |
| SFX Item ID | 4177859 |
| Supplier Item Code | 4177859 |
| Manufacturer SKU | 197714830-1 |
| Manufacturer UPC | N/A |
| Alternative References | 370ci, 4.030in, 3.622in, 6.125in, 12cc |
Compatibility
Chevrolet LS 370 cu in.
