Manley SB Chevy LS-1 Billet w/ Torrington Bearing & 9 Keyway Crankshaft Sprocket Kit (w/ 3-Bolt Cam)
Manley SB Chevy LS-1 Billet w/ Torrington Bearing & 9 Keyway Crankshaft Sprocket Kit (w/ 3-Bolt Cam)
A$601.37
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Manley Performance Timing Chain Kits are engineered to deliver precise, reliable camshaft timing for high-performance street and racing engines. These kits provide exceptional strength, durability, and timing stability under demanding operating conditions. Some kits offer adjustable multi-keyway crank sprockets toallow accurate camshaft phasing, while application-specific thrust bearings and premium hardware ensure dependable long-term performance.
Part Type
Engine Timing Chain Kit
Features

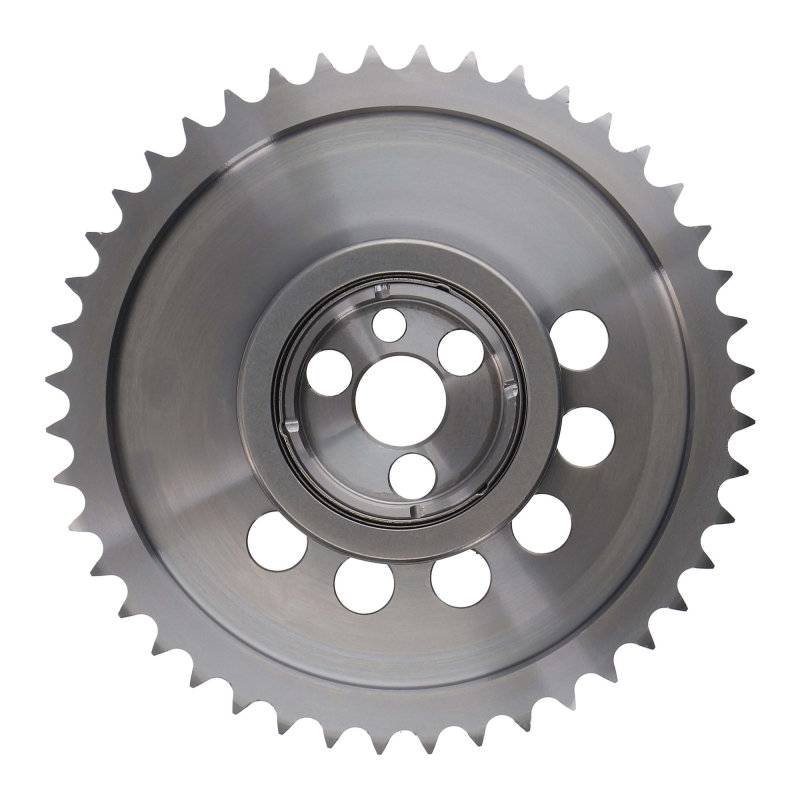

- Camshaft sprockets are machined for and include a captive Torrington thrust bearing

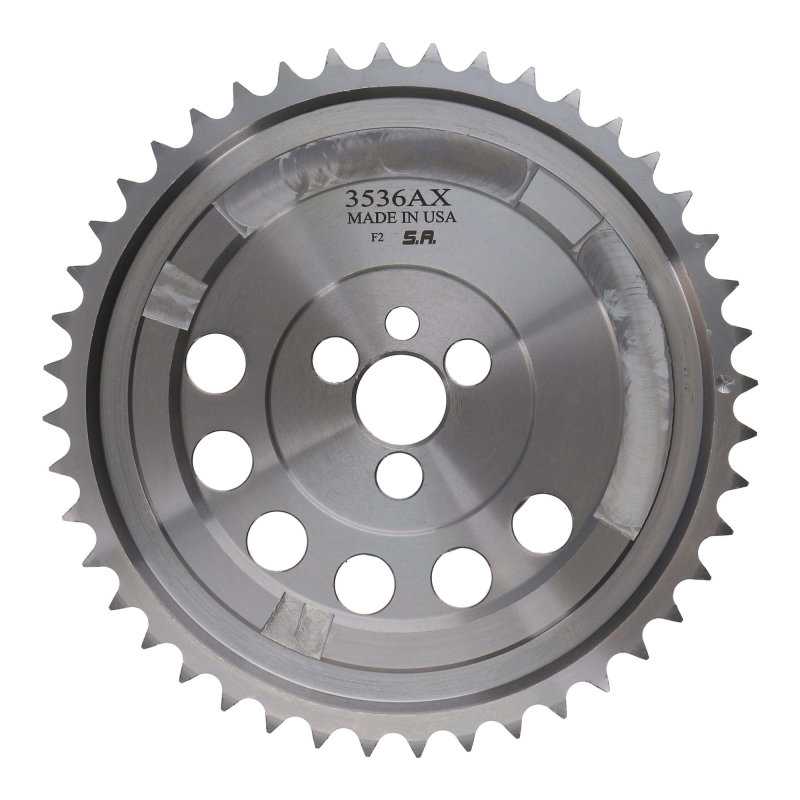

- Fully machined billet steel camshaft and crankshaft sprockets

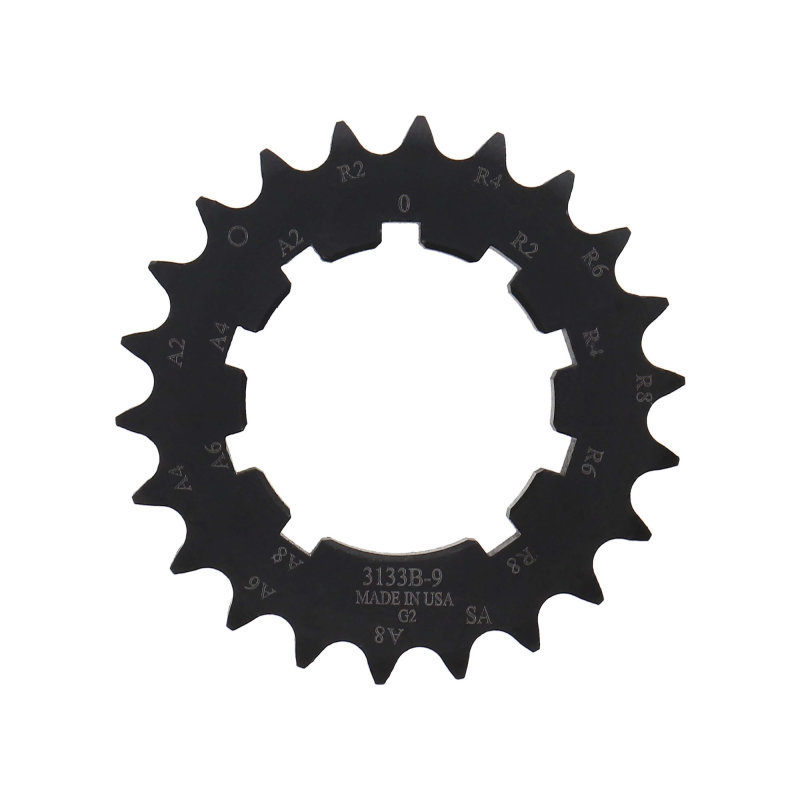

- Nine keyway steel crankshaft sprocket enabling different settings: 0 , +/- 2 , +/- 4 , +/- 6 , +/- 8
- No grinding/modifying of timing cover required
- NOT recommended for valve spring pressures exceeding 450 lbs.

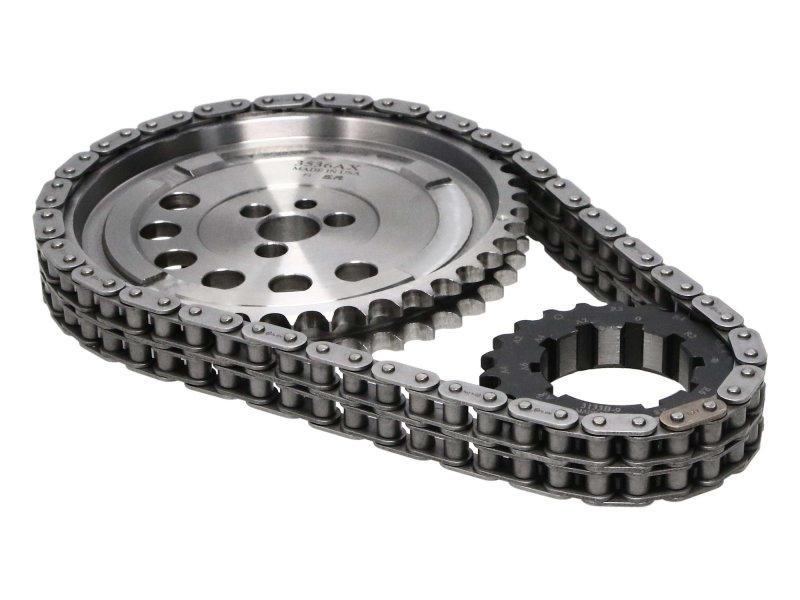

- Roller chain designed with .250" diameter rollers
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 73236
- Product Attributes - Part Type
- Timing Chain and Gear Sets
- Product Attributes - Product Line
- Manley Timing Chain Sets
- Product Attributes - UPC
- 807298016979
- Product Attributes - Timing Chain Included
- Yes
- Product Attributes - Timing Chain Style
- Double roller
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Maximum Advance/Retard at Camshaft
- 8 degree
- Product Attributes - Maximum Advance/Retard at Crankshaft
- 8 degree
- Product Attributes - Cam Gear Included
- Yes
- Product Attributes - Cam Gear Material
- Steel
- Product Attributes - Crank Gear Included
- Yes
- Product Attributes - Crank Gear Material
- Steel
- Product Attributes - VVT Gear Included
- No
- Product Attributes - Tensioner Included
- No
- Product Attributes - Thrust Bearing Included
- Yes
- Product Attributes - Bolts/Studs Included
- Yes
- Product Attributes - Gaskets Included
- No
- Product Attributes - Offset Bushings Included
- No
- Product Attributes - Quantity
- Sold as a set.
- Product Attributes - Notes
- When installing a double roller timing chain and gears in an LS engine, the oil pump is spaced out from the block for clearance. On most applications, this will create a clearance issue between the timing cover and oil pump. Test fit and grind as needed for clearance, before final assembly.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man73236 |
| SFX Item ID | 4059783 |
| Supplier Item Code | 4059783 |
| Manufacturer SKU | 73236 |
| Manufacturer UPC | 807298016979 |
| Alternative References | LS-1, 3-Bolt |
