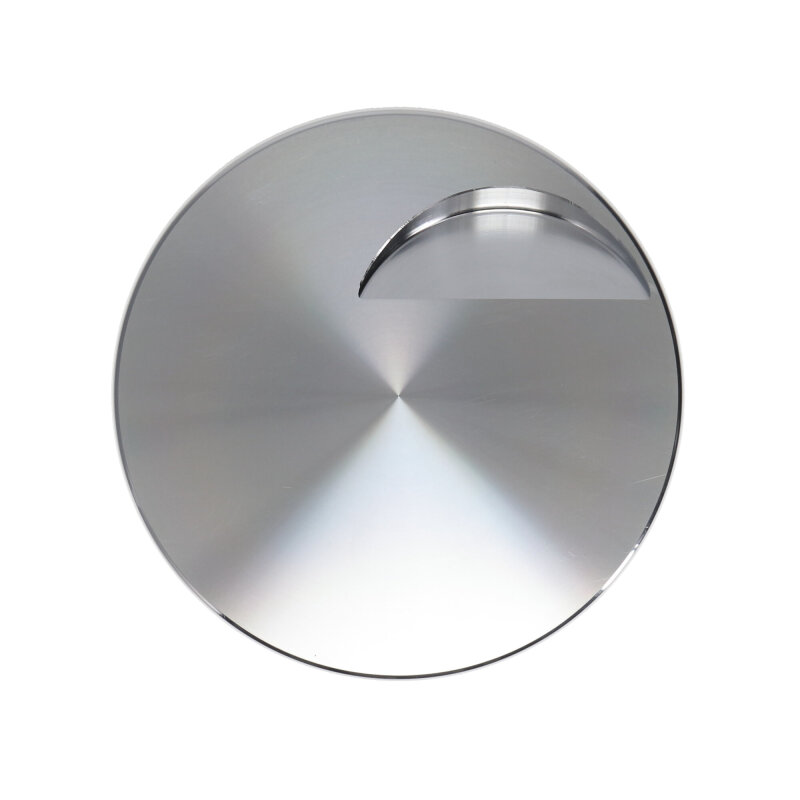

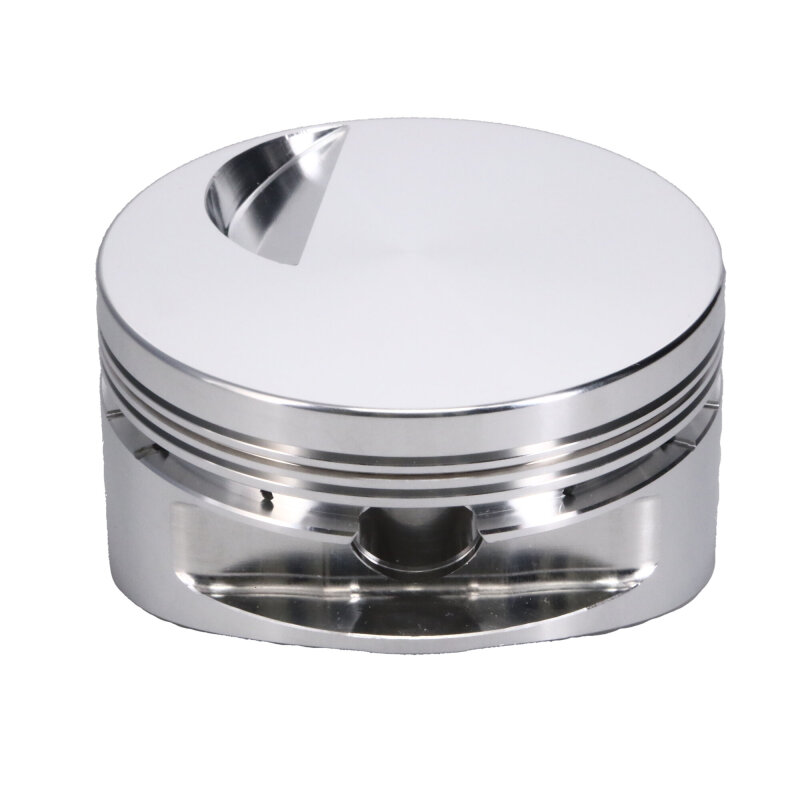

Manley Platinum Series Pistons 698180-8 Pistons, PIST-1.120 CD/FT 4.600
Manley Platinum Series Pistons 698180-8 Pistons, PIST-1.120 CD/FT 4.600
A$2,034.33
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
Part Type
Engine Piston Set
Features
- 2618 Alloy Forgings: We use domestic 2618 alloy forgings, ensuring superior strength and performance.
- Cam and Barrel Profiles: Our pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls.
- Chrome Moly Wrist Pins: Premium Chrome Moly wrist pins come standard with our Standard Series Pistons. For select SKUs, we offer wrist pin upgrades to 9310 and Turbo Tuff/DLC alloys, providing additional durability.
- Exacting Ring Lands and Grooves: We adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power.
- Unique Fixturing: Manley's unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 698180-8
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Manley Platinum Series Pistons
- Product Attributes - UPC
- 807298078106
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.600 in.
- Product Attributes - Bore (mm)
- 116.840mm
- Product Attributes - Stroke
- 4.750 in.
- Product Attributes - Rod Length
- 6.700 in.
- Product Attributes - Piston Style
- Flat top, with single valve relief
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.120 in.
- Product Attributes - Piston Head Volume (cc)
- +3.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 1/16 in. x 1/16 in. x 3/16 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Fits standard deck block with 6.535 in. rod and 4.250 in. stroke, or tall deck block with 6.700 in. rod and 4.750 in. stroke.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man698180-8 |
| SFX Item ID | 4933414 |
| Supplier Item Code | 4933414 |
| Manufacturer SKU | 698180-8 |
| Manufacturer UPC | 807298078106 |
| Alternative References | PIST-1.120 |
