Manley Performance
Manley Ford XR6 4.0L Barra 240T Piston - 3.633 in. Bore 1.215 in. CH -10.00 CC
man628100C-1
A$493.35

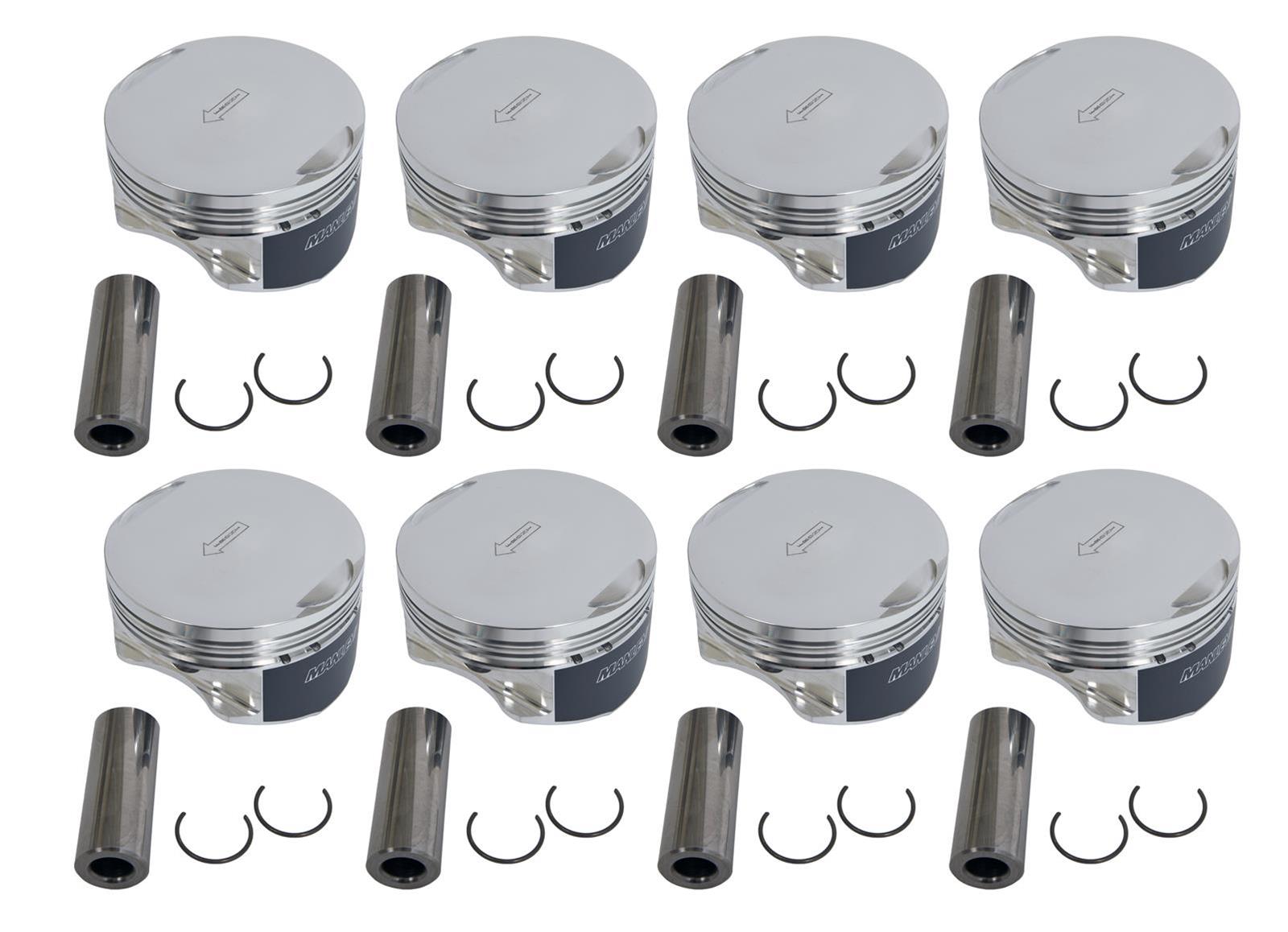

Manley Platinum Series Pistons 598100CE-8 Pistons, Series, Dish, Forged Aluminum, Ford, 5.0L Coyote, Set of 8
Manley Platinum Series Pistons 598100CE-8 Pistons, Series, Dish, Forged Aluminum, Ford, 5.0L Coyote, Set of 8
A$2,645.09
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 598100CE-8
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Manley Platinum Series Pistons
- Product Attributes - UPC
- 807298095905
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 3.630 in.
- Product Attributes - Bore (mm)
- 92.202mm
- Product Attributes - Stroke
- 3.650 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Rod Length
- 5.933 in.
- Product Attributes - Piston Style
- Dish, with four valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.165 in.
- Product Attributes - Piston Head Volume (cc)
- +12.00cc
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.866 in.
- Product Attributes - Piston Ring Thickness
- 1.20mm x 1.20mm x 3.00mm
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man598100CE-8 |
| SFX Item ID | 4929331 |
| Supplier Item Code | 4929331 |
| Manufacturer SKU | 598100CE-8 |
| Manufacturer UPC | 807298095905 |
| Alternative References | 5.0L |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
