Manley Small Block Chevrolet LS Series -29cc Dish 4.070in Top Piston

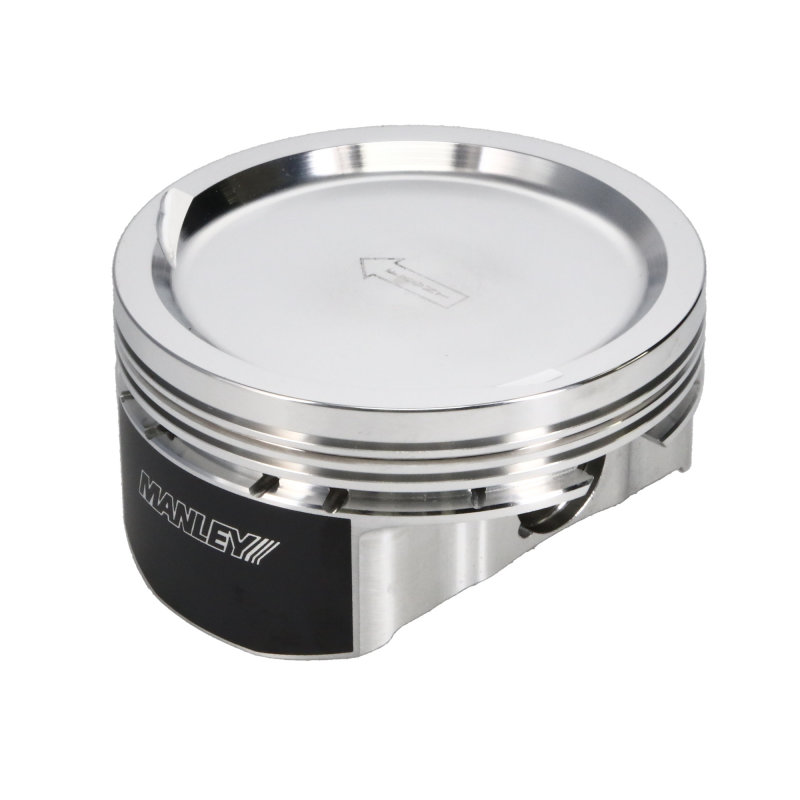

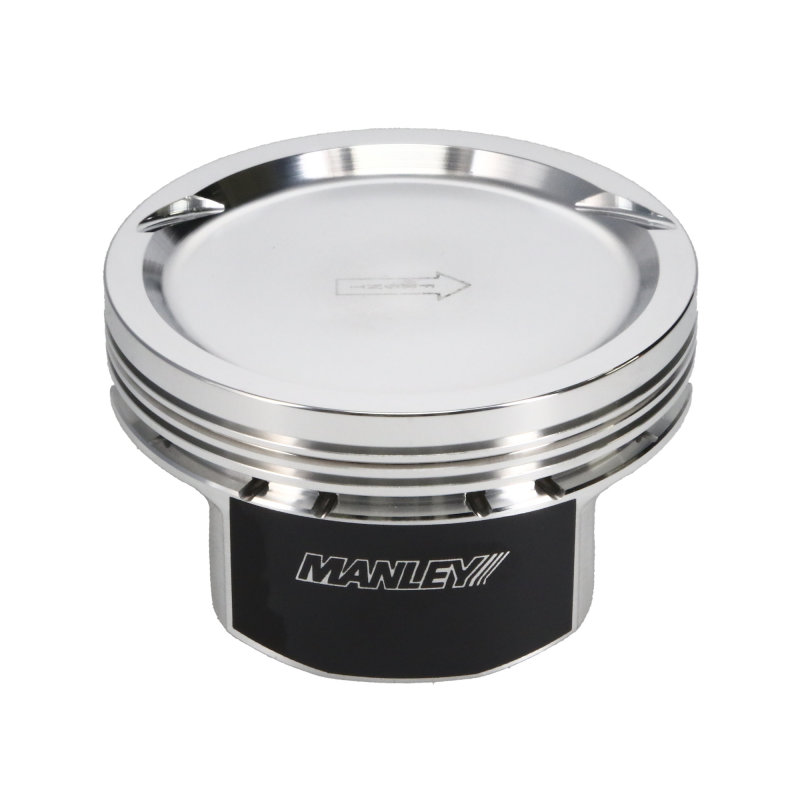

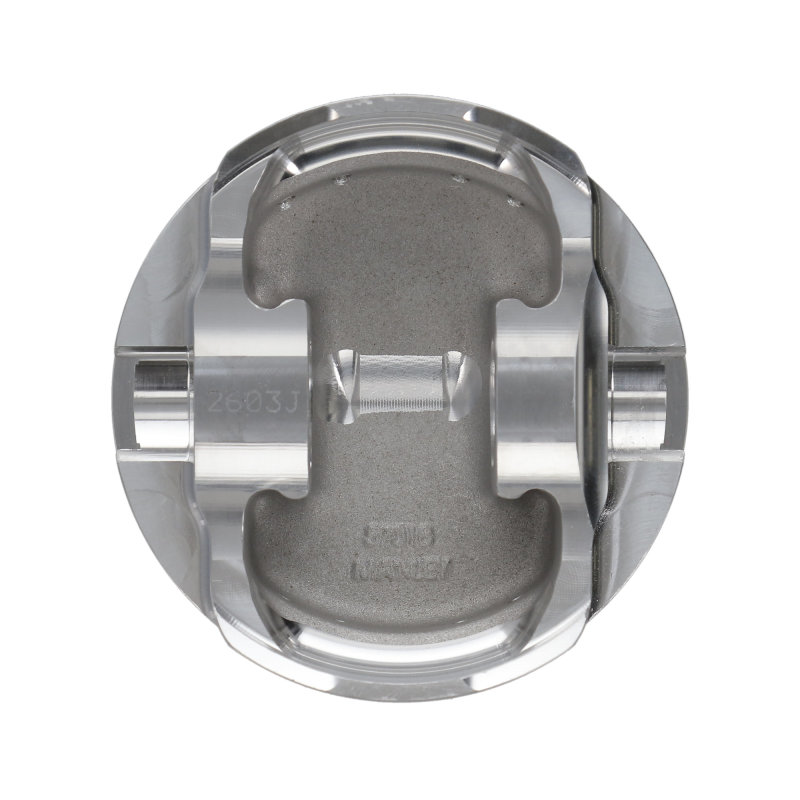

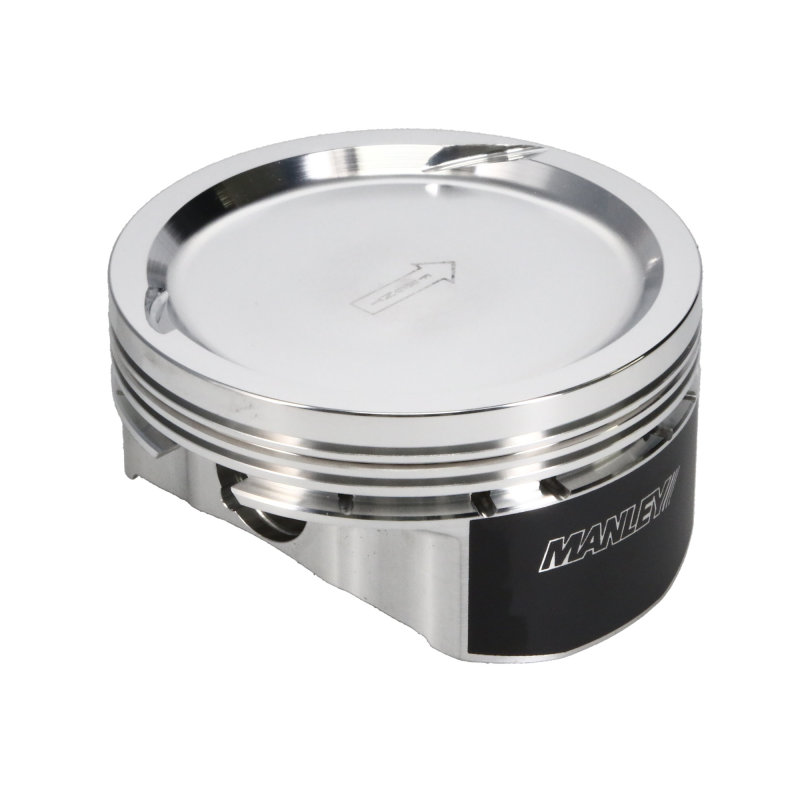

Manley Small Block Chevrolet LS Series -29cc Dish 4.070in Top Piston
A$2,079.95
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
Part Type
Engine Piston Set
Features
- 2618 Alloy Forgings: We use domestic 2618 alloy forgings, ensuring superior strength and performance.
- Cam and Barrel Profiles: Our pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls.
- Chrome Moly Wrist Pins: Premium Chrome Moly wrist pins come standard with our Standard Series Pistons. For select SKUs, we offer wrist pin upgrades to 9310 and Turbo Tuff/DLC alloys, providing additional durability.
- Exacting Ring Lands and Grooves: We adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power.
- Unique Fixturing: Manley's unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 592870C-8
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Manley Platinum Series Pistons
- Product Attributes - UPC
- 807298006611
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.070 in.
- Product Attributes - Bore (mm)
- 103.378mm
- Product Attributes - Stroke
- 4.000 in.
- Product Attributes - Engine Stroke Type
- Stroked
- Product Attributes - Rod Length
- 6.125 in.
- Product Attributes - Piston Style
- Dish, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.115 in.
- Product Attributes - Piston Head Volume (cc)
- +29.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 1.50mm x 1.50mm x 3.00mm
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Coated skirt.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man592870C-8 |
| SFX Item ID | 4061088 |
| Supplier Item Code | 4061088 |
| Manufacturer SKU | 592870C-8 |
| Manufacturer UPC | 807298006611 |
| Alternative References | -29cc, 4.070in |
