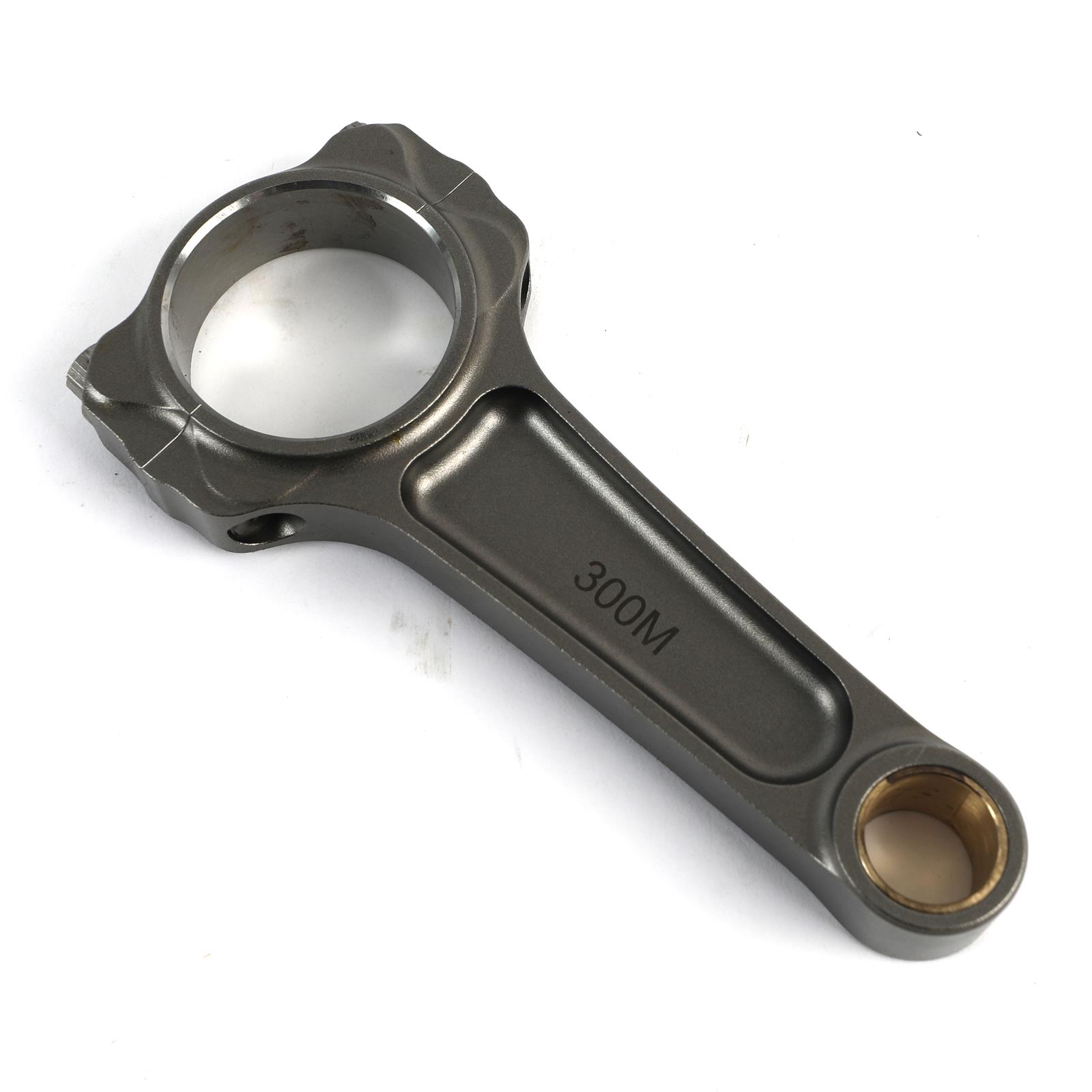

Manley Pro Series I-Beam Connecting Rods 15320R6-1 Rod, ROD-4.6L 300M 5.850 LIGHT
Manley Pro Series I-Beam Connecting Rods 15320R6-1 Rod, ROD-4.6L 300M 5.850 LIGHT
A$1,000.80
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Manley Pro Series I-beam connecting rods are forged from 4340 aircraft-quality vacuum degassed material. They're fully machined to produce the strongest rods possible. These rods are shot-peened to Mil specs and are 100 percent individually magnafluxed. They feature 7/16 in. ARP cap screws with 12-point heads and your choice of material grade to maximize your needed tensile strength! Manley Pro Series I-beam connecting rods are available in various sizes for a wide range of vehicles and horsepower ranges from 850 to 1,600 hp. Match up your specs, then order an individual rod or a larger set quantity.
Part Type
Connecting Rods
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 15320R6-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Manley Pro Series I-Beam Connecting Rods
- Product Attributes - UPC
- 807298103563
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 5.850 in.
- Product Attributes - Connecting Rod Beam Style
- I-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.867 in.
- Product Attributes - Big End Bore Diameter (in.)
- 2.1250
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Big End Width (in.)
- 0.940
- Product Attributes - Clearanced for Stroker
- Yes
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 7/16 in.
- Product Attributes - Connecting Rod Bolt Material
- ARP Custom Age 625 Plus
- Product Attributes - Fastener Tensile Strength (psi)
- 260,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 675
- Product Attributes - Advertised Horsepower Rating
- 900 hp
- Product Attributes - Pin End Width (in.)
- 0.940 in.
- Product Attributes - Weight Matched Set
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
- Product Attributes - Notes
- Custom pistons are required when using connecting rods with any length other than OE.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man15320R6-1 |
| SFX Item ID | 4933823 |
| Supplier Item Code | 4933823 |
| Manufacturer SKU | 15320R6-1 |
| Manufacturer UPC | 807298103563 |
| Alternative References | ROD-4.6L, 300M |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
