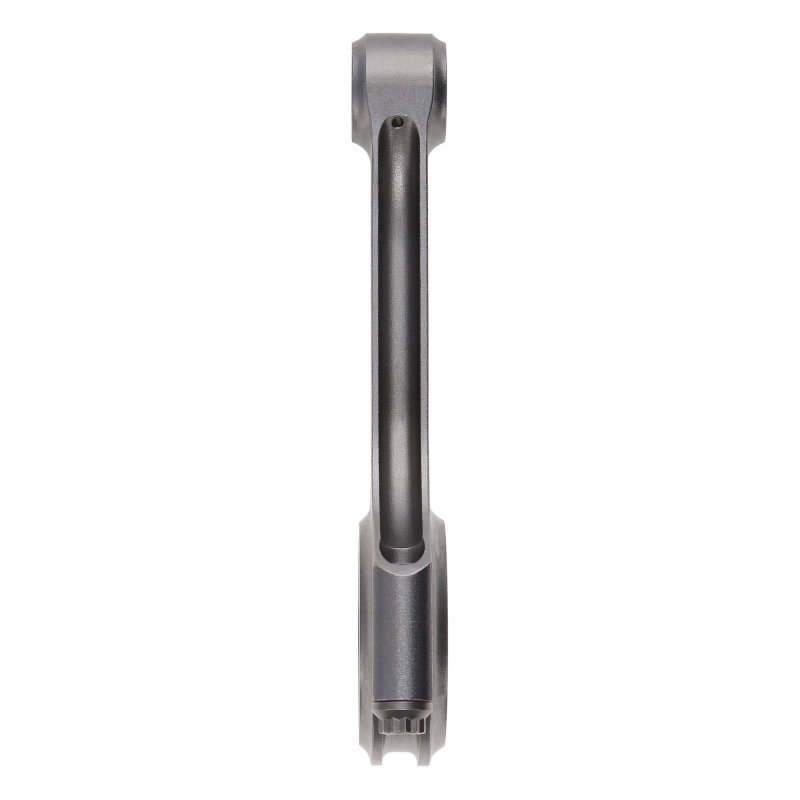

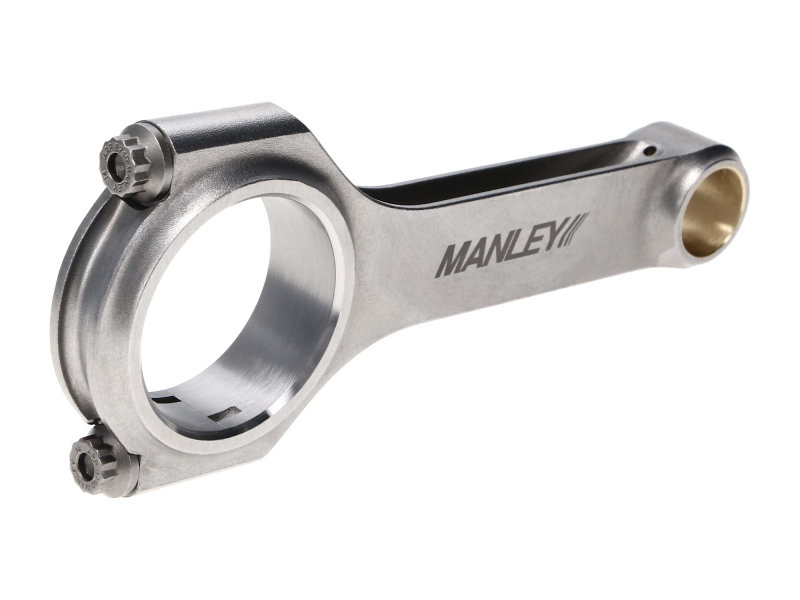

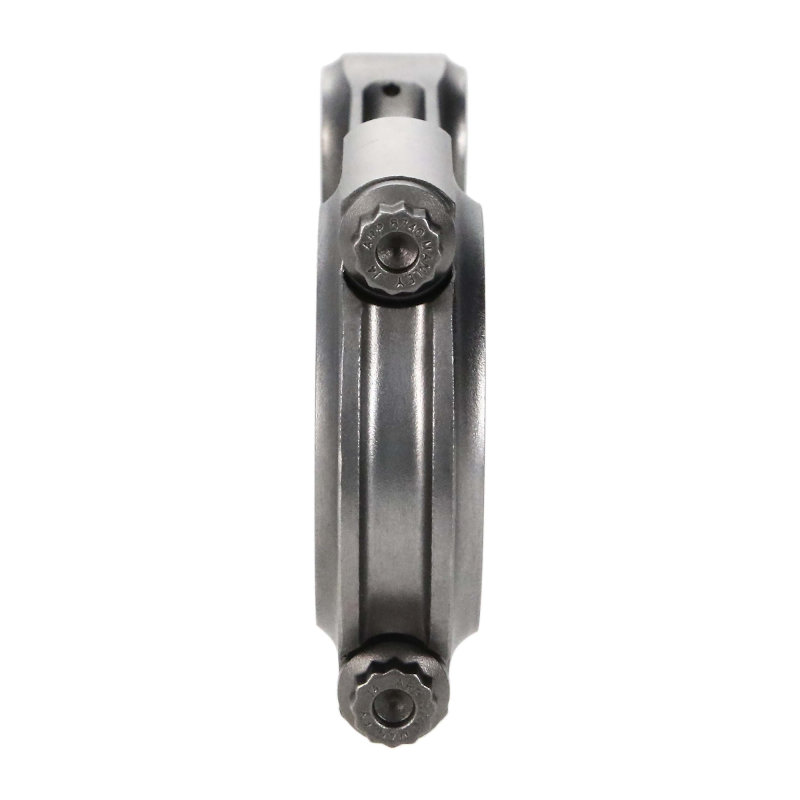

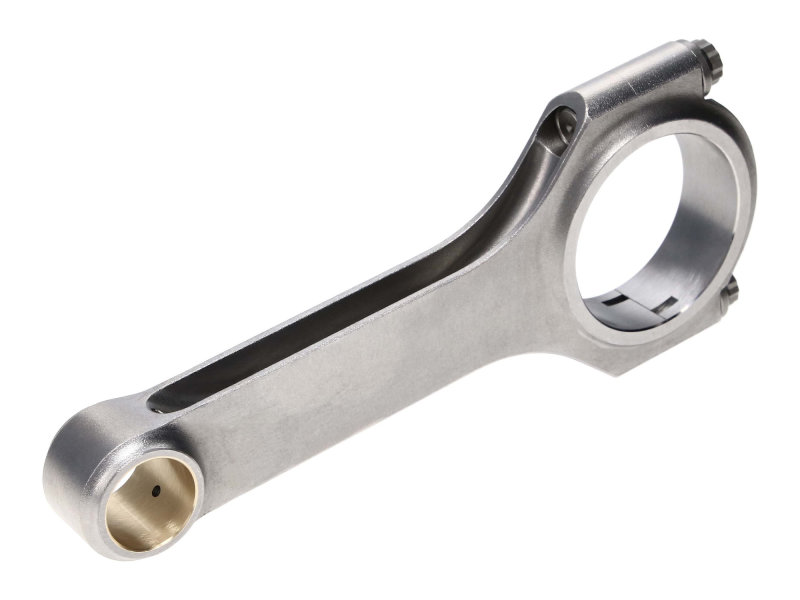

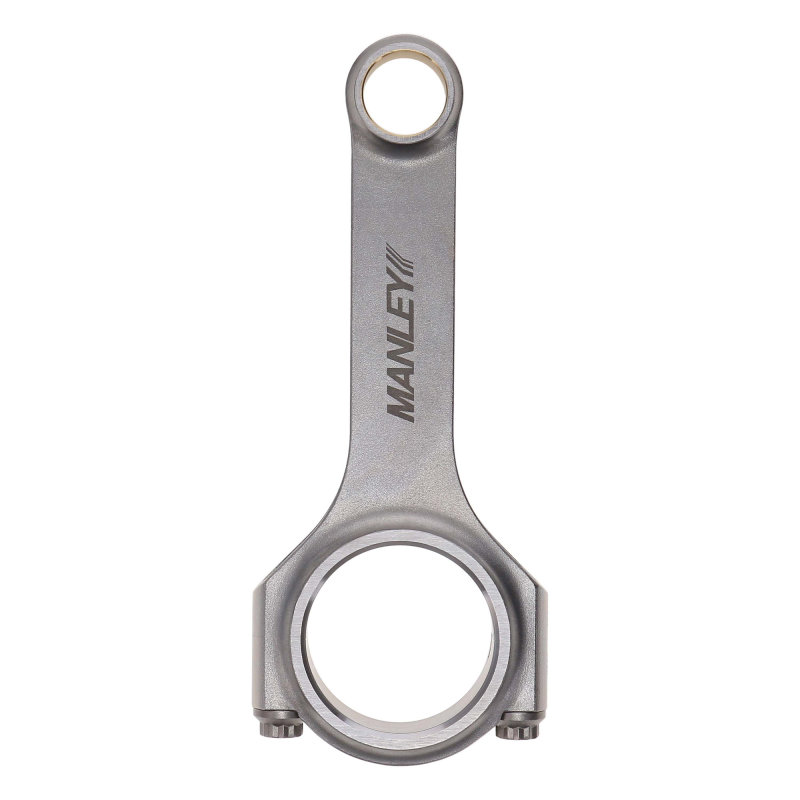

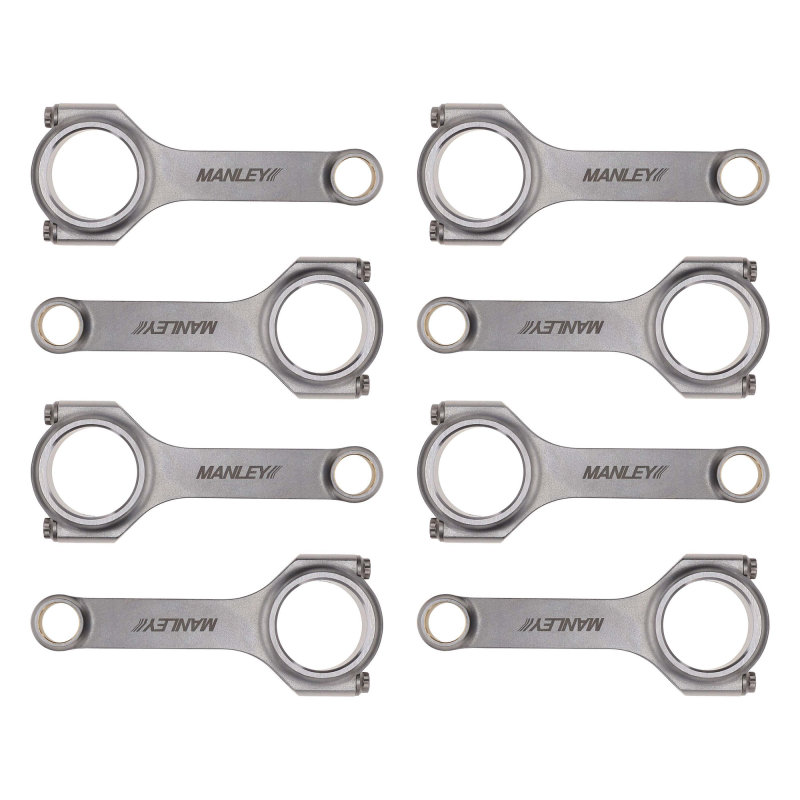

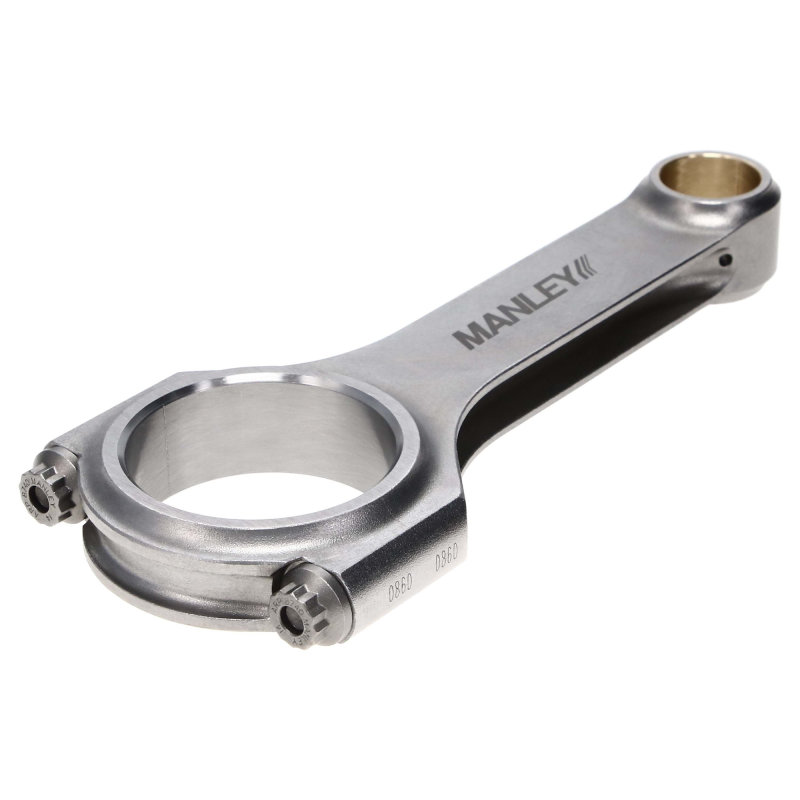

Manley Chrysler Small Block 5.7L Hemi Series 6.125in H Beam Connecting Rod - Single
Manley Chrysler Small Block 5.7L Hemi Series 6.125in H Beam Connecting Rod - Single
A$219.57
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
When it comes to H-Beam connecting rods, not all are created equal. Manley H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster® and Pro Series rods.
Part Type
Engine Connecting Rod
Features
- Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
- Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
- Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
- Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 14056-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Manley Steel H-Beam Connecting Rods
- Product Attributes - UPC
- 807298105383
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 6.125 in.
- Product Attributes - Connecting Rod Beam Style
- H-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.928 in.
- Product Attributes - Big End Bore Diameter (in.)
- 2.1250
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Big End Width (in.)
- 0.941
- Product Attributes - Clearanced for Stroker
- Yes
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 7/16 in.
- Product Attributes - Connecting Rod Bolt Material
- 8740 chromoly steel
- Product Attributes - Fastener Tensile Strength (psi)
- 160,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 642
- Product Attributes - Advertised Horsepower Rating
- 725 hp
- Product Attributes - Pin End Width (in.)
- 1.060 in.
- Product Attributes - Weight Matched Set
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
- Product Attributes - Notes
- Custom pistons are required when using connecting rods with any length other than OE length.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man14056-1 |
| SFX Item ID | 4061428 |
| Supplier Item Code | 4061428 |
| Manufacturer SKU | 14056-1 |
| Manufacturer UPC | 807298105383 |
| Alternative References | 5.7L, 6.125in |
