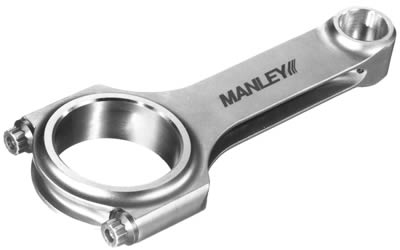

Manley Steel H-Beam Connecting Rods 14054-1 Rod, 4340 H-Beam, Cap Screw, Bushed, Chevy, Small Block, Each
Manley Steel H-Beam Connecting Rods 14054-1 Rod, 4340 H-Beam, Cap Screw, Bushed, Chevy, Small Block, Each
A$230.65
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
Part Type
SBC 4340 H-Beam Rod 6.000in
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 14054-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Manley Steel H-Beam Connecting Rods
- Product Attributes - UPC
- 807298002446
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 6.000 in.
- Product Attributes - Connecting Rod Beam Style
- H-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.928 in.
- Product Attributes - Rod Journal Diameter (in.)
- 2.100
- Product Attributes - Big End Bore Diameter (in.)
- 2.2250
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Clearanced for Stroker
- No
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 7/16 in.
- Product Attributes - Connecting Rod Bolt Material
- 8740 chromoly steel
- Product Attributes - Fastener Tensile Strength (psi)
- 160,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 640
- Product Attributes - Advertised Horsepower Rating
- 700 hp
- Product Attributes - Advertised RPM Rating
- 8,000 rpm
- Product Attributes - Weight Matched Set
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
- Product Attributes - Notes
- Custom pistons required when using longer than stock connecting rods. Designed for racing use only.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man14054-1 |
| SFX Item ID | 4927384 |
| Supplier Item Code | 4927384 |
| Manufacturer SKU | 14054-1 |
| Manufacturer UPC | 807298002446 |
