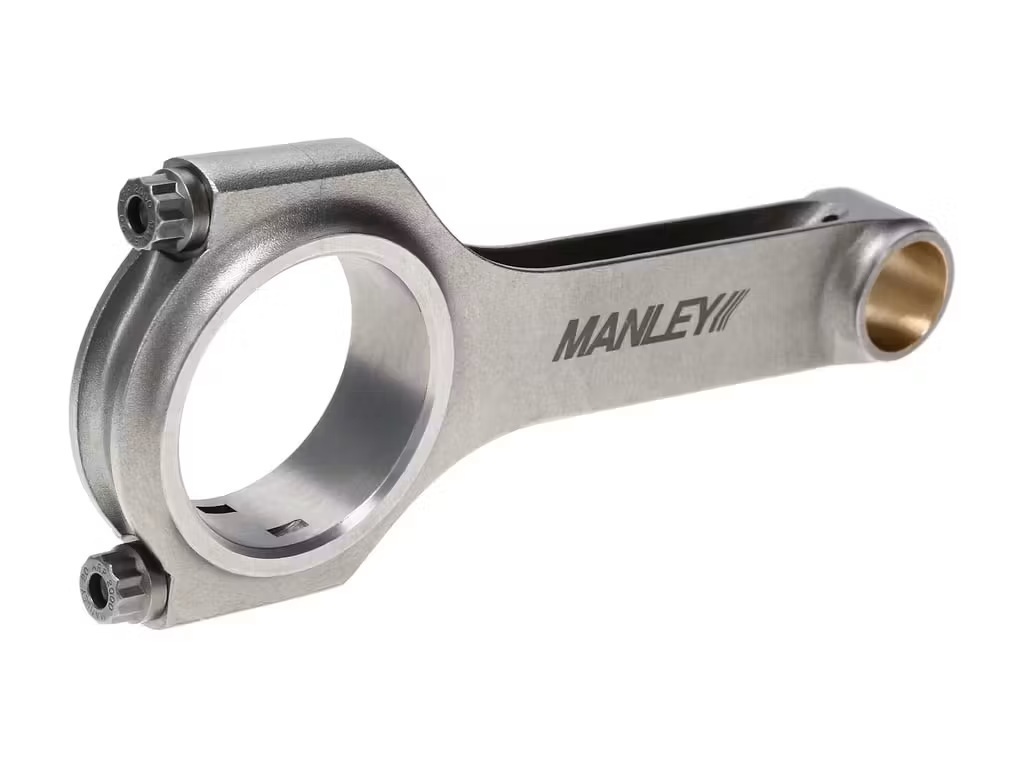

Manley Steel H-Beam Connecting Rods 14050-1 Rod, 4340 H-Beam, Cap Screw, Bushed, Chevy, Small Block, Each
Manley Steel H-Beam Connecting Rods 14050-1 Rod, 4340 H-Beam, Cap Screw, Bushed, Chevy, Small Block, Each
A$244.77
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
Part Type
SBC H-Beam Rod 5.700
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 14050-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Manley Steel H-Beam Connecting Rods
- Product Attributes - UPC
- 807298002354
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 5.700 in.
- Product Attributes - Connecting Rod Beam Style
- H-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.928 in.
- Product Attributes - Rod Journal Diameter (in.)
- 2.100
- Product Attributes - Big End Bore Diameter (in.)
- 2.2250
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Clearanced for Stroker
- No
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 3/8 in.
- Product Attributes - Connecting Rod Bolt Material
- 8740 chromoly steel
- Product Attributes - Fastener Tensile Strength (psi)
- 160,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 630
- Product Attributes - Advertised Horsepower Rating
- 700 hp
- Product Attributes - Advertised RPM Rating
- 8,000 rpm
- Product Attributes - Weight Matched Set
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
- Product Attributes - Notes
- Designed for racing use only.
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man14050-1 |
| SFX Item ID | 4931807 |
| Supplier Item Code | 4931807 |
| Manufacturer SKU | 14050-1 |
| Manufacturer UPC | 807298002354 |
