MagnaFlow System Overland Cat-Back 22-23 Ford Bronco Raptor 3.0L
MagnaFlow System Overland Cat-Back 22-23 Ford Bronco Raptor 3.0L
A$7,648.31
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

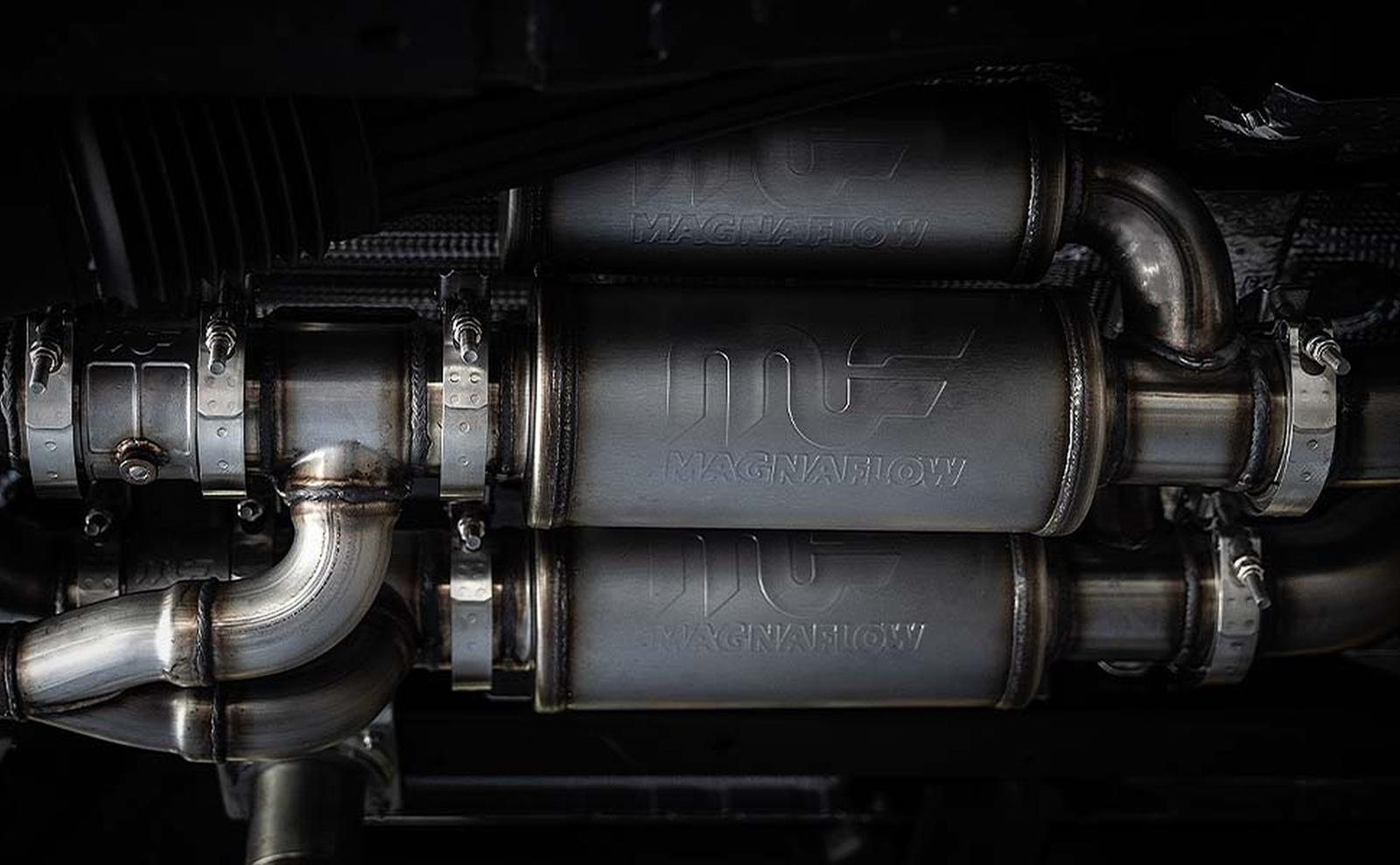

The MagnaFlow® Ford Bronco Raptor Overland Series™ Cat-Back Performance Exhaust System #19619 brings all the technology, dyno-proven performance and configurable sound your truck needs to be crowned the ultimate Raptor. This exhaust kit is compatible with every Ford Bronco Raptor running a 3.0L engine and features an easy-to-install direct-fit design that replaces your truck’s OEM exhaust system from near the catalytic converter on back. #19619 features high clearance tucked 3” diameter mandrel bent main piping that passes through two 11” round body straight-through mufflers and NDT (No Drone Technology) resonators, effectively mitigating any droning noises that may otherwise occur when cruising at highway speeds. The tucked design also considerably improves both ground clearance and departure angles. This Ford Bronco Raptor performance exhaust system terminates in a dual same-side driver-side rear exit and includes integrated, functional active exhaust valves cast in durable 304 stainless steel. Exhaust kit #19619 is secured using racing-bred quick-release V-band clamps. #19619 is made of durable stainless steel and produced using advanced 3D scanning technology and CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Product Overview
The MagnaFlow Ford Bronco Raptor Overland Series Cat-Back Performance Exhaust System #19619 brings all the technology, dyno-proven performance and configurable sound your truck needs to be crowned the ultimate Raptor. This exhaust kit is compatible with every 2022-2024 Ford Bronco Raptor running a 3.0L engine and features an easy-to-install direct-fit design that replaces your truck’s OEM exhaust system from near the catalytic converter on back. #19619 features high clearance tucked 3” diameter mandrel bent main piping that passes through two 11” round body straight-through mufflers and NDT (No Drone Technology) resonators, effectively mitigating any droning noises that may otherwise occur when cruising at highway speeds. The tucked design also considerably improves both ground clearance and departure angles. This Ford Bronco Raptor performance exhaust system terminates in a dual same-side driver-side rear exit and includes integrated, functional active exhaust valves cast in durable 304 stainless steel. Exhaust kit #19619 is secured using racing-bred quick-release V-band clamps. #19619 is made of durable stainless steel and produced using advanced 3D scanning technology and CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features and Benefits
- No-Drone-Technology Allows For A Quiet Cabin
- No-Drone-Technology (NDT) allows for a quiet cabin
- Dyno proven performance
- High clearance exit
Product Details
| 10983: | 5 |
|---|---|
| 10984: | 11 |
| 10985: | 5 |
| 10986: | Straight-Through |
| 11051: | 4 |
| 11052: | 11 |
| 11053: | 4 |
| 11074: | Tuned Chamber |
| Catalytic Converter Quantity: | 0 |
| Clamping Type: | Band Clamp;V-Band Clamp |
| Clamps Included: | Yes |
| Description: | Overland Series Stainless Cat-Back System |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Cat-Back |
| Exit Style: | Dual Straight Driver Side Rear |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Inside Diameter: | 3.000 in. |
| Inlet Type: | Bolt-On;Clamp-On |
| Main Piping Diameter: | 3 |
| Material: | Stainless Steel |
| Mounting Bracket Included: | No |
| Muffler Body Height Position Bottom: | 5 |
| Muffler Body Height Position Top: | 4 |
| Muffler Body Length Position Bottom: | 11 |
| Muffler Body Length Position Top: | 11 |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Width Position Bottom: | 5 |
| Muffler Body Width Position Top: | 4 |
| Muffler Finish: | Brushed |
| Muffler Quantity: | 4 |
| Muffler Type Position Bottom: | Straight-Through |
| Muffler Type Position Top: | Tuned Chamber |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Part Number: | mag19619 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Tip Diameter: | N/A |
| Title: | MagnaFlow 2022-2025 Ford Bronco Overland Series Cat-Back Performance Exhaust System |
| Tubing Diameter: | 3.000 in. |
| Type: | Cat-Back |
| Valve Included: | Yes |
| Valve Type: | Actuated |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19619
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563181318
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Dual in/Dual out
- Product Attributes - Exit Location
- Rear
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- Two
- Product Attributes - Muffler Configuration
- Single inlet/Single outlet
- Product Attributes - Muffler Style
- Perforated tube with packing
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Brushed
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19619 |
| SFX Item ID | 4289195 |
| Supplier Item Code | 4289195 |
| Manufacturer SKU | 19619 |
| Manufacturer UPC | 888563181318 |
| Alternative References | mpe-19619, MFL19619, 3.0L |
