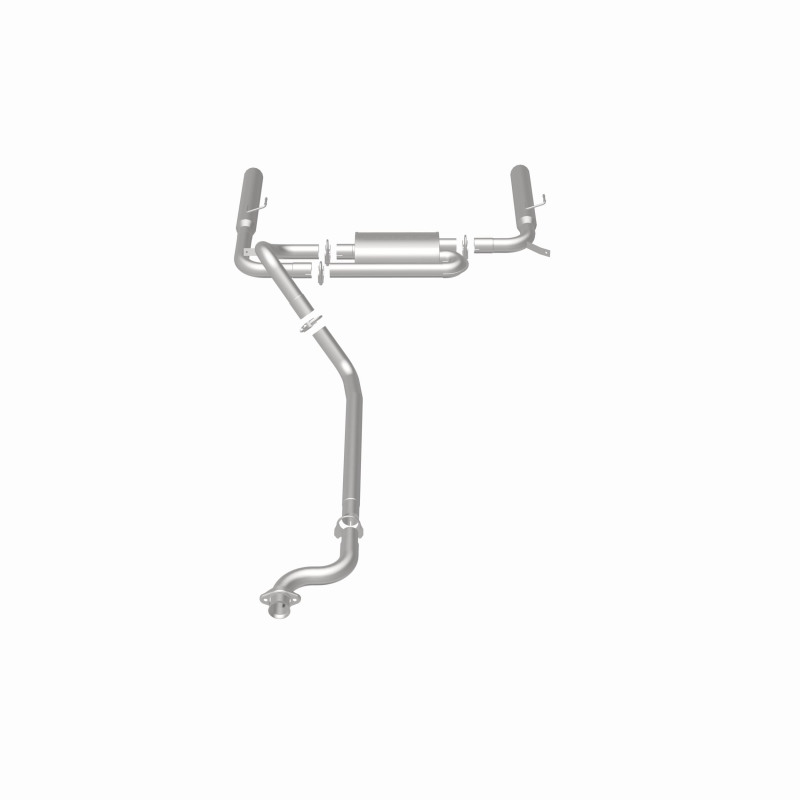

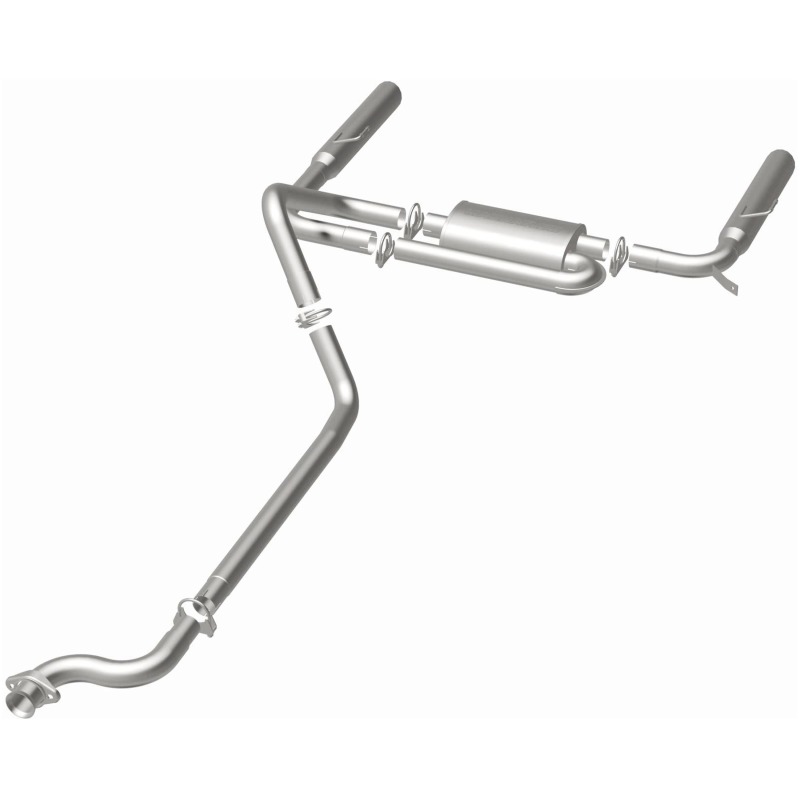

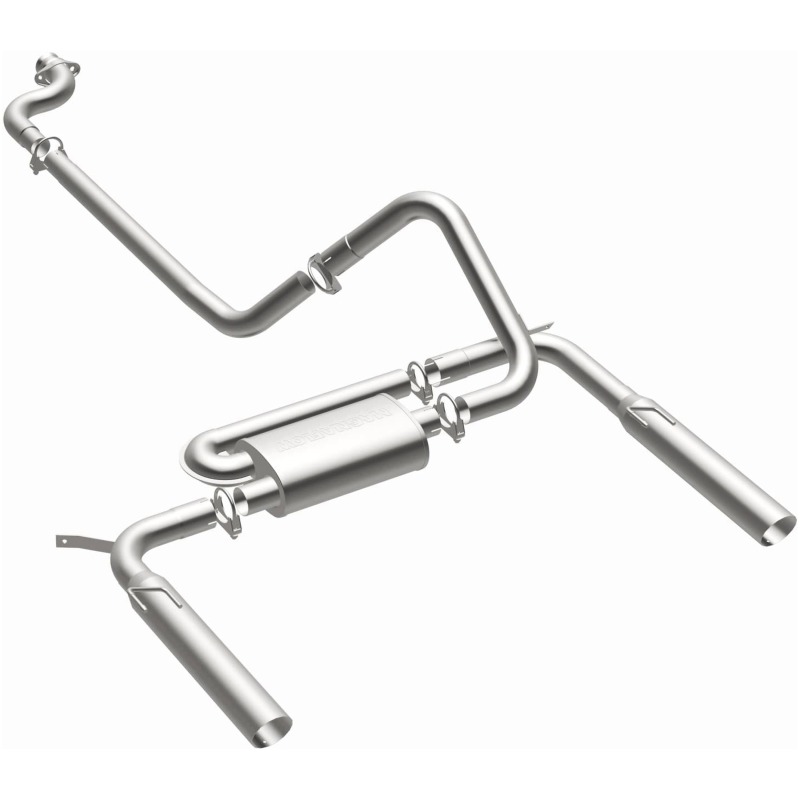

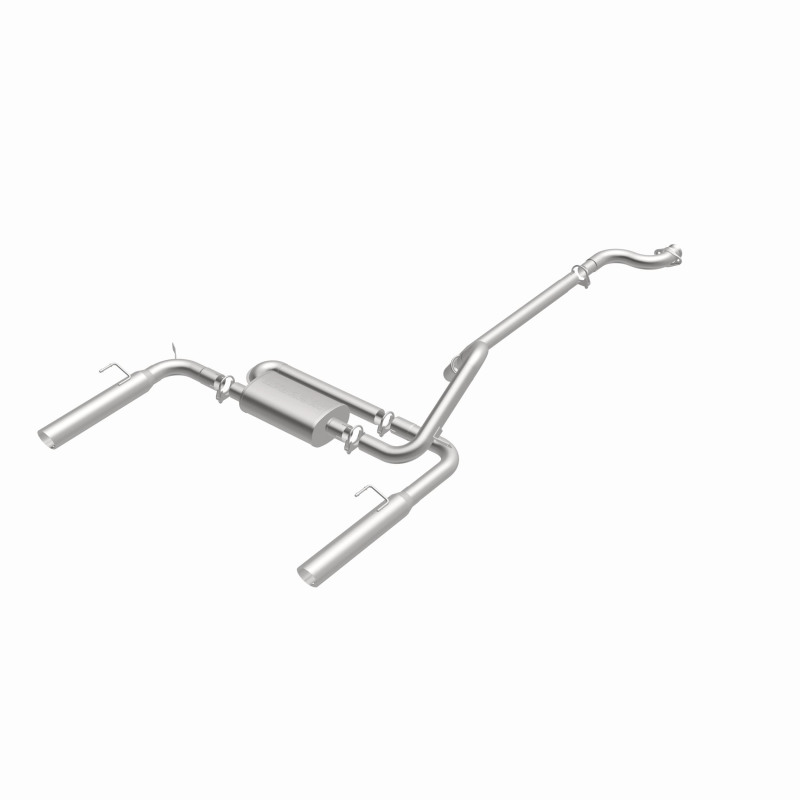

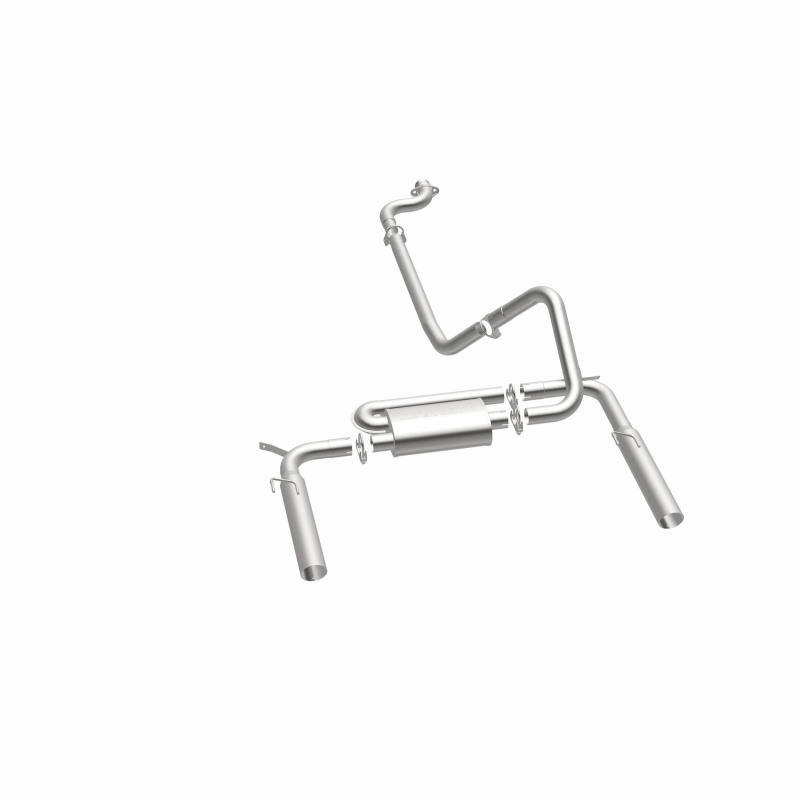

MagnaFlow Sys C/B Chevy Camaro-Firebird 3.4L
MagnaFlow Sys C/B Chevy Camaro-Firebird 3.4L
A$2,324.57
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The Street Series Stainless Performance Exhaust system delivers dyno proven power with a comfortable interior sound and performance exterior sound. MagnaFlow Performance Exhaust System Kit 15694 is made of durable stainless steel and built using CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Product Overview
Made in the USA and engineered to last, for those seeking increased performance and better economy, MagnaFlow Street Series Performance Exhaust systems deliver the smooth deep sound you want and the wide-open performance power you need. Our exhaust systems feature straight-through flow designs for the ultimate in unrestricted horsepower and torque for big power while maintaining exhaust efficiency. These systems are an engineered balance of interior and exterior noise levels and are tested against SAE j1169 standards. Available with an optional High Temp Satin Black Coating providing aggressive unique style and protection.
* All Mandrel Bent Tubing
* 409 Stainless Steel Construction
* Increased Horsepower and Torque
* 1 Year Warranty on optional Black Finish, Lifetime Construction
* Made in USA
Features and Benefits
- Durable Corrosion-Resistant Stainless Steel Construction
- CNC Precision Robotic Manufacturing Techniques
- Dyno Proven Performance
- Dyno-proven performance
Product Details
| Anticipated Ship Out Time: | Approximately 1-2 Days |
|---|---|
| Attachment Style: | Bolt-On |
| Attachment Type: | Bolt-On |
| Catalytic Converter Quantity: | 0 |
| Clamp Type: | Band Clamp;U-Bolt Clamp |
| Clamping Type: | Band Clamp;U-Bolt Clamp |
| Clamps Included: | Yes |
| Color/Finish: | Stainless |
| Components: | Band Clamp=4 |
| Description: | Street Series Stainless Cat-Back System |
| Exhaust Inlet Connection Type: | Bolt-On |
| Exhaust Pipe Material: | Stainless |
| Exhaust Tip Connection: | Welded-On |
| Exhaust Tip Cut: | Angle Cut |
| Exhaust Tip Diameter: | 3.5 |
| Exhaust Tip Edge: | Cut Edge |
| Exhaust Tip Finish: | Polished |
| Exhaust Tip Intercooled: | No |
| Exhaust Tip Length: | 22 |
| Exhaust Tip Material: | Stainless Steel |
| Exhaust Tip Quantity: | 2 |
| Exhaust Tip Resonated: | No |
| Exhaust Tip Shape: | Round |
| Exhaust Tip Wall: | Single Wall |
| Exhaust Type: | Dual |
| Exit Location: | Dual Split Rear |
| Exit Position: | Dual Split Rear |
| Exit Quantity: | Dual |
| Exit Style: | Dual Split Rear |
| Finish: | Stainless |
| Gasket Included: | No |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Connection Type: | Bolt-On |
| Inlet Inside Diameter: | 2.500 in. |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.500 in. |
| Material: | Stainless |
| Mounting Bracket Included: | No |
| Muffler Body Diameter: | 5.000 in. x 8.000 in. |
| Muffler Body Finish: | Polished |
| Muffler Body Height: | 5.000 in. |
| Muffler Body Length: | 14.000 in. |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Shape: | Oval |
| Muffler Body Width: | 8.000 in. |
| Muffler Count: | 1 |
| Muffler Finish: | Brushed |
| Muffler Material: | Stainless Steel |
| Muffler Quantity: | 1 |
| Muffler Type: | Straight-Through |
| Outlet Outside Diameter: | 3.500 in. |
| Part Number: | mag15694 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Recommended Use: | Performance |
| Series: | Street |
| Sound Level: | Moderate |
| Subtitle: | Cat-Back Performance Exhaust System |
| Subtitles: | Cat-Back |
| System Type: | Cat Back |
| Tail Pipe Diameter: | 2.500 in. |
| Tip Diameter: | 3.500 in. |
| Tip Finish: | Polished |
| Tip Length: | 22.000 in. |
| Tip Material: | Stainless Steel |
| Tip Quantity: | 2 |
| Tip Shape: | Round |
| Tip Type: | Single Wall |
| Title: | MagnaFlow Street Series Cat-Back Performance Exhaust System 15694 |
| Tubing Diameter: | 2.500 in. |
| Type: | Cat-Back |
| Valve Included: | No |
| Valve Type: | None |
| WARNING CA Proposition 65: | No |
| Warranty: | Lifetime |
Part Type
Exhaust System Kit
Features
- CNC Precision Robotic Manufacturing Techniques
- Durable Corrosion-Resistant Stainless Steel Construction
- Dyno Proven Performance
- Dyno-proven performance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 15694
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Street Series Performance Exhaust Systems
- Product Attributes - UPC
- 841380004949
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Single in/Dual out
- Product Attributes - Exit Location
- Split rear
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 2.50 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- One
- Product Attributes - Muffler Configuration
- Single inlet/Dual outlet
- Product Attributes - Muffler Style
- Perforated tube with packing
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Polished
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 2.50 in.
- Product Attributes - Tip Included
- Yes
- Product Attributes - Tip Outlet Size (in.)
- 3.50
- Product Attributes - Tip Quantity
- 2
- Product Attributes - Tip Shape
- Round
- Product Attributes - Tip Cut
- Slant
- Product Attributes - Tip Edge Style
- Non-rolled edge, single-wall
- Product Attributes - Tip Material
- 304 stainless steel
- Product Attributes - Tip Color
- Polished
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Kit includes polished muffler. Must re-use original fasteners and rubber insulators.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag15694 |
| SFX Item ID | 4284512 |
| Supplier Item Code | 4284512 |
| Manufacturer SKU | 15694 |
| Manufacturer UPC | 841380004949 |
| Alternative References | mpe-15694, MFL15694, 3.4L |
