Magnaflow 22+ Toyota Tundra Overland Series 3in Single Straight Passenger Side Rear Cat-Back Exhaust
Magnaflow 22+ Toyota Tundra Overland Series 3in Single Straight Passenger Side Rear Cat-Back Exhaust
A$3,067.06
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

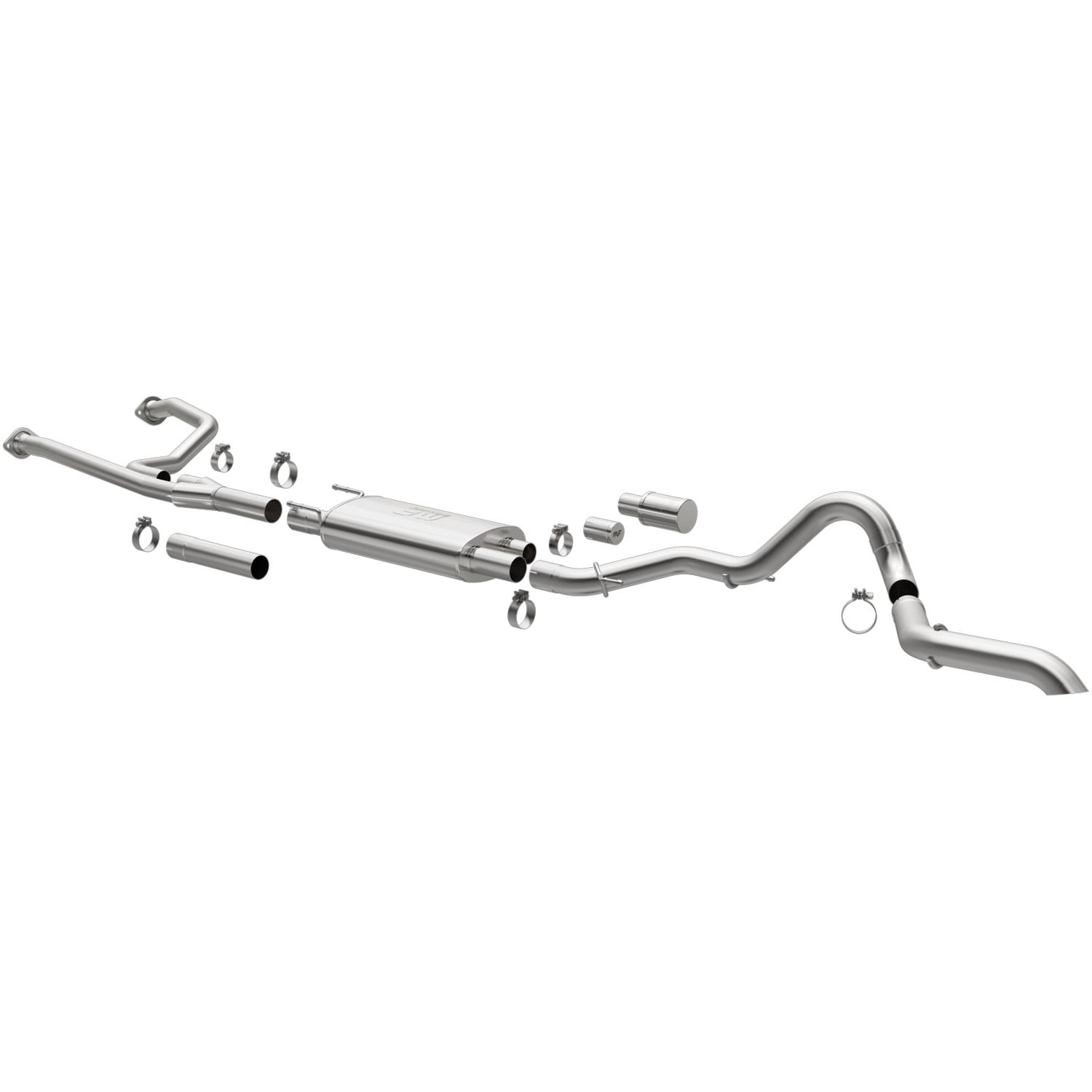

The MagnaFlow® Toyota Tundra Overland Series™ performance exhaust system #19604 is built to withstand anything that Mother Nature throws at it thanks to the elevated ground clearance and superior departure angles it offers compared to your truck’s existing exhaust system. #19604 makes this all possible thanks to its single tipless, high tuck tailpipe that exits the rear driver’s side. The system’s cat-back design replaces all of your truck’s stock exhaust components from near the catalytic converter on back. Our innovative NDT (No Drone Technology) resonators are engineered to keep droning noises in check using quarter-wave passive noise cancellation, improving your situational awareness while out on the trail and facilitating a more comfortable ride when cruising the highway. Exhaust kit #19604 is compatible with all Toyota Tundra crew cab and extended cab/standard bed configurations equipped with the 3.4L V6 engine option. #19604 features 3” diameter, mandrel bent main tubing that flows through a fast-flowing, straight through 5”x11”x22” offset/offset same-side muffler with internal branch pipe, all with a premium brushed finish. This Toyota Tundra performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced, CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Product Overview
The MagnaFlow Toyota Tundra Overland Series performance exhaust system #19604 is built to withstand anything that Mother Nature throws at it thanks to the elevated ground clearance and superior departure angles it offers compared to your truck’s existing exhaust system. #19604 makes this all possible thanks to its single tipless, high tuck tailpipe that exits the rear driver’s side. The system’s cat-back design replaces all of your truck’s stock exhaust components from near the catalytic converter on back. Our innovative NDT (No Drone Technology) resonators are engineered to keep droning noises in check using quarter-wave passive noise cancellation, improving your situational awareness while out on the trail and facilitating a more comfortable ride when cruising the highway. Exhaust kit #19604 is compatible with all 2022-2024 Toyota Tundra crew cab and extended cab/standard bed configurations equipped with the 3.5L V6 engine option. #19604 features 3” diameter, mandrel bent main tubing that flows through a fast-flowing, straight through 5”x11”x22” offset/offset same-side muffler with internal branch pipe, all with a premium brushed finish. This Toyota Tundra performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced, CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features and Benefits
- No-Drone-Technology Allows For A Quiet Cabin
- No-Drone-Technology (NDT) allows for a quiet cabin
- Dyno proven performance
- High clearance exit
Product Details
| 10987: | 5 |
|---|---|
| 11010: | 22 |
| 11011: | 11 |
| 11039: | 4 |
| 11040: | 6 |
| 11041: | 4 |
| 11060: | Straight-Through |
| 11070: | Tuned Chamber |
| Catalytic Converter Quantity: | 0 |
| Clamp Type: | Band Clamp |
| Clamping Type: | Band Clamp |
| Clamps Included: | Yes |
| Description: | Overland Series Stainless Cat-Back System |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Cat-Back |
| Exit Position: | Single Straight Driver Side Rear |
| Exit Style: | Single Straight Driver Side Rear |
| Gasket Included: | No |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Connection Type: | Bolt-On |
| Inlet Inside Diameter: | 3.000 in. |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 3 |
| Material: | Stainless Steel |
| Mounting Bracket Included: | No |
| Muffler Body Height Position Center: | 5 |
| Muffler Body Height Position Rear: | 4 |
| Muffler Body Length Position Front: | 22 |
| Muffler Body Length Position Rear: | 6 |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Width Position Front: | 11 |
| Muffler Body Width Position Rear: | 4 |
| Muffler Finish: | Brushed |
| Muffler Height Position Front: | 5 |
| Muffler Height Position Rear: | 4 |
| Muffler Length Position Front: | 22 |
| Muffler Length Position Rear: | 6 |
| Muffler Material: | Stainless Steel |
| Muffler Quantity: | 2 |
| Muffler Size Position Front: | 5x11x22 |
| Muffler Size Position Rear: | 4x4x6 |
| Muffler Type Position Front: | Straight-Through |
| Muffler Type Position Rear: | Tuned Chamber |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Muffler Width Position Front: | 11 |
| Muffler Width Position Rear: | 4 |
| Part Number: | mag19604 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Shape: | Round |
| Tip Diameter: | N/A |
| Title: | MagnaFlow 2022-2025 Toyota Tundra Overland Series Cat-Back Performance Exhaust System |
| Tubing Diameter: | 3.000 in. |
| Type: | Cat-Back |
| Valve Included: | No |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19604
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563179117
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Dual in/Single out
- Product Attributes - Exit Location
- Passenger side
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- One
- Product Attributes - Muffler Configuration
- Single inlet/Dual outlet
- Product Attributes - Muffler Style
- Perforated tube with packing
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Brushed
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19604 |
| SFX Item ID | 4289053 |
| Supplier Item Code | 4289053 |
| Manufacturer SKU | 19604 |
| Manufacturer UPC | 888563179117 |
| Alternative References | mpe-19604, MFL19604, 3in |
