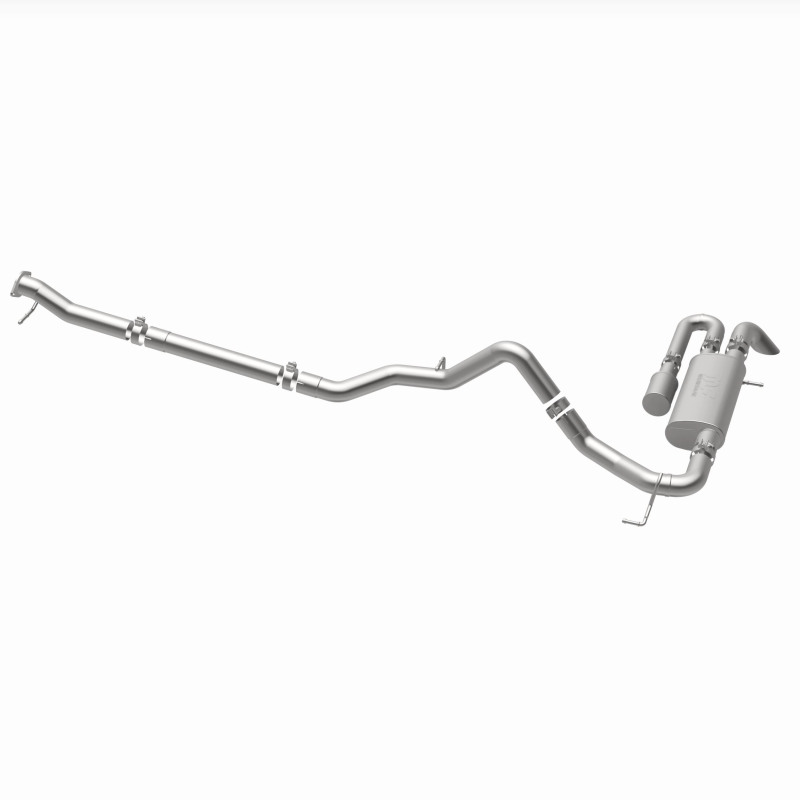

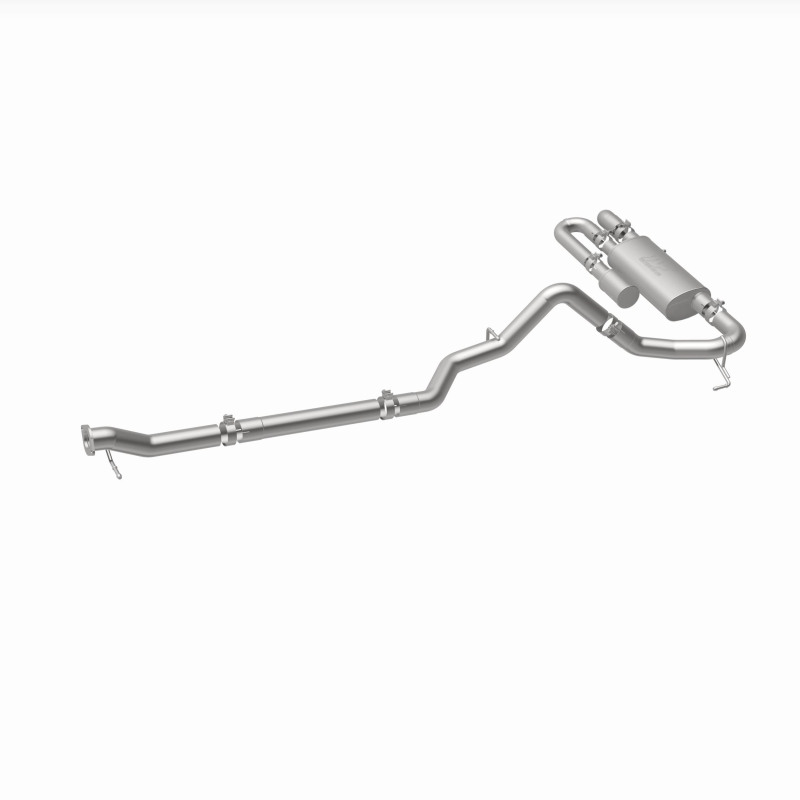

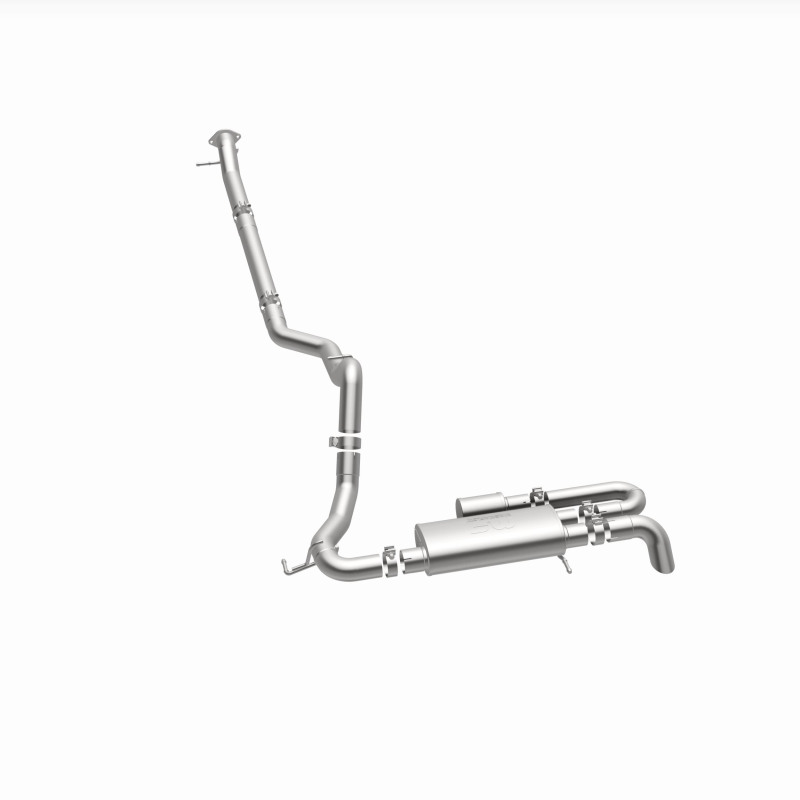

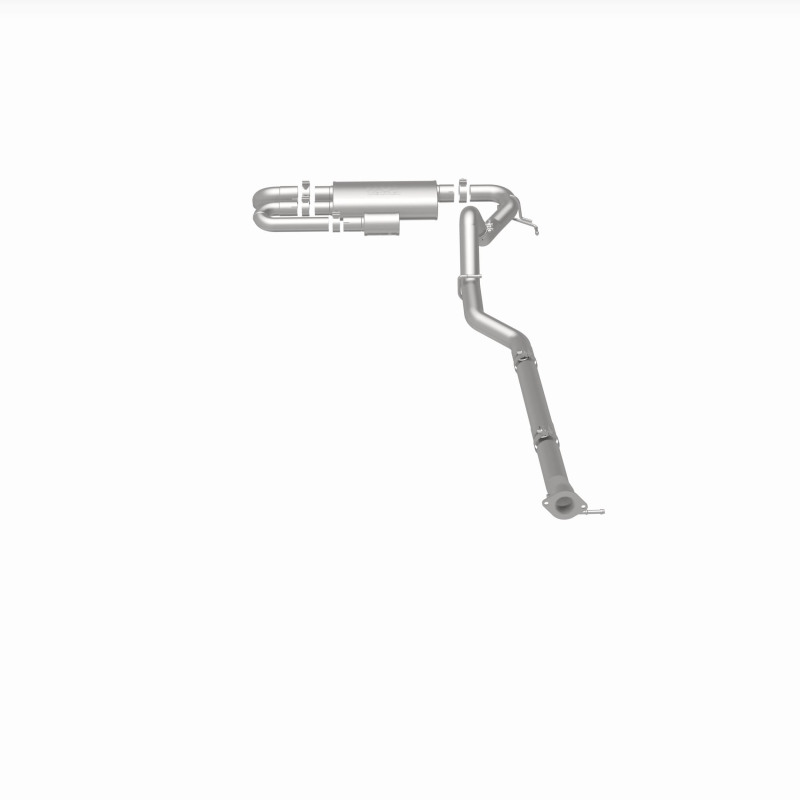

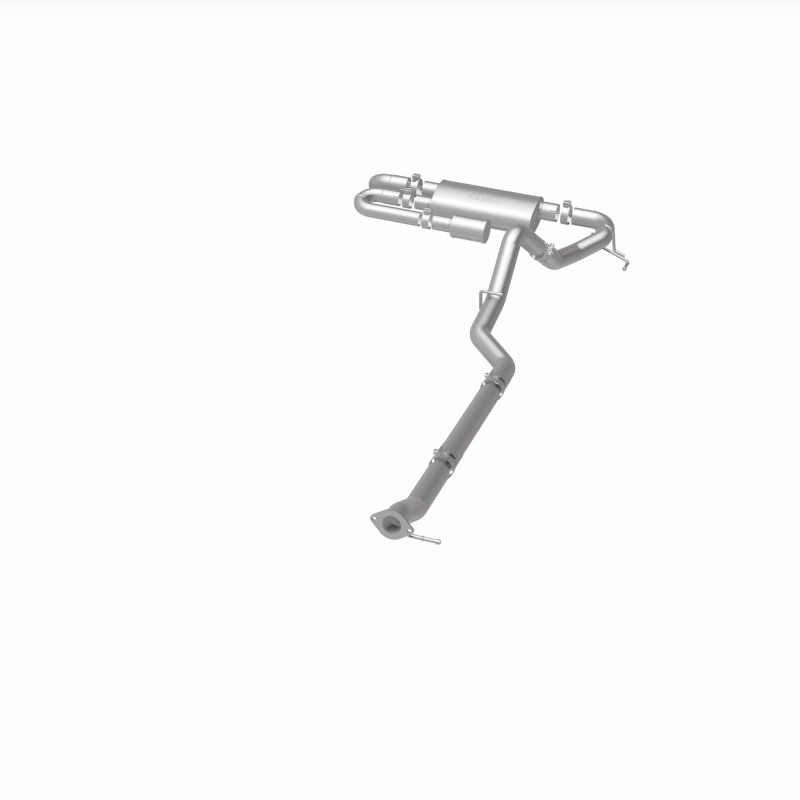

Magnaflow 21-22 Ford Bronco L4 2.3L Overland Series Cat-Back Exhaust
Magnaflow 21-22 Ford Bronco L4 2.3L Overland Series Cat-Back Exhaust
A$3,100.69
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The MagnaFlow® Ford Bronco Overland Series™ Cat-Back Performance Exhaust system #19556 is the perfect solution to further improve the off-road utility of your already-capable Ford Bronco equipped with the 2.3L turbo I-4. This cat-back, direct-fit exhaust kit is designed to install easily and fit perfectly thanks to the hard work of the engineers at MagnaFlow®’s Tech Center, who made detailed 3D scans of the entire vehicle in order to ensure perfect fitment. The advantage of such precise tolerances is that the entire performance exhaust system is mounted closer to the undercarriage of the vehicle than the stock system, resulting in significantly improved ground clearance. #19556 also features 3” main piping that leads to a straight-through muffler before terminating in a single 2.5” high-clearance side exit, which further improves the rear departure angle versus the standard tailpipe. The result of this upgrade is improved rock crawling capability and the ability to get out of tricky situations on the trail more easily. This Ford Bronco exhaust system utilizes a tunable NDT (No Drone Technology) quarter-wave resonator to eliminate unwanted noises at cruising speeds en route to your destination, with the added benefit of improving situational awareness when you’re out exploring or camping in the middle of nowhere. Exhaust kit #19556 is engineered to produce MagnaFlow®’s deep signature exhaust tone at mild interior and moderate exterior sound levels, ideal for enjoying the character of your engine without scaring Mother Nature away. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Product Overview
The MagnaFlow Ford Bronco Overland Series Cat-Back Performance Exhaust system #19556 is the perfect solution to further improve the off-road utility of your already-capable 2021-2023 Ford Bronco equipped with the 2.3L turbo I-4. This cat-back, direct-fit exhaust kit is designed to install easily and fit perfectly thanks to the hard work of the engineers at MagnaFlow's Tech Center, who made detailed 3D scans of the entire vehicle in order to ensure perfect fitment. The advantage of such precise tolerances is that the entire performance exhaust system is mounted closer to the undercarriage of the vehicle than the stock system, resulting in significantly improved ground clearance. #19556 also features 3" main piping that leads to a straight-through muffler before terminating in a single 2.5" high-clearance side exit, which further improves the rear departure angle versus the standard tailpipe. The result of this upgrade is improved rock crawling capability and the ability to get out of tricky situations on the trail more easily. This Ford Bronco exhaust system utilizes a tunable NDT (No Drone Technology) quarter-wave resonator to eliminate unwanted noises at cruising speeds en route to your destination, with the added benefit of improving situational awareness when you're out exploring or camping in the middle of nowhere. Exhaust kit #19556 is engineered to produce MagnaFlow's deep signature exhaust tone at mild interior and moderate exterior sound levels, ideal for enjoying the character of your engine without scaring Mother Nature away. The exhaust system is built to last thanks to the use of precision CNC robotic manufacturing techniques and durable stainless-steel construction, all backed by MagnaFlow's limited lifetime warranty.
Features and Benefits
- No-Drone-Technology Allows For A Quiet Cabin
- No-Drone-Technology (NDT) allows for a quiet cabin
- Dyno proven performance
- High clearance exit
Product Details
| 10987: | 4 |
|---|---|
| 11010: | 6 |
| 11011: | 4 |
| 11039: | 5 |
| 11040: | 18 |
| 11041: | 8 |
| 11060: | Tuned Chamber |
| 11070: | Straight-Through |
| Catalytic Converter Quantity: | 0 |
| Clamp Type: | Band Clamp |
| Clamping Type: | Band Clamp |
| Clamps Included: | Yes |
| Description: | Overland Series Stainless Cat-Back System |
| Exhaust Tip Finish: | Satin |
| Exhaust Tip Material: | Stainless Steel |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Cat-Back |
| Exit Position: | Single Straight Passenger Side Rear |
| Exit Style: | Single Straight Passenger Side Rear |
| Gasket Included: | No |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Connection Type: | Bolt-On |
| Inlet Inside Diameter: | 3.000 in. |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 3 |
| Material: | Stainless Steel |
| Mounting Bracket Included: | No |
| Muffler Body Height Position Center: | 4 |
| Muffler Body Height Position Rear: | 5 |
| Muffler Body Length Position Front: | 6 |
| Muffler Body Length Position Rear: | 18 |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Width Position Front: | 4 |
| Muffler Body Width Position Rear: | 8 |
| Muffler Finish: | Brushed |
| Muffler Height Position Front: | 4 |
| Muffler Height Position Rear: | 5 |
| Muffler Length Position Front: | 6 |
| Muffler Length Position Rear: | 18 |
| Muffler Quantity: | 2 |
| Muffler Size Position Front: | 4x4x6 |
| Muffler Size Position Rear: | 5x8x18 |
| Muffler Type Position Front: | Tuned Chamber |
| Muffler Type Position Rear: | Straight-Through |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Muffler Width Position Front: | 4 |
| Muffler Width Position Rear: | 8 |
| Part Number: | mag19556 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Subtitle: | Cat-Back Performance Exhaust System |
| Tip Diameter: | N/A |
| Tip Finish: | Satin |
| Tip Material: | Stainless Steel |
| Title: | MagnaFlow 2021-2025 Ford Bronco Overland Series Cat-Back Performance Exhaust System |
| Tubing Diameter: | 3.000 in. |
| Type: | Cat-Back |
| Valve Included: | No |
| Valve Type: | None |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19556
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563175539
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Single
- Product Attributes - Exit Location
- Rear
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- One
- Product Attributes - Muffler Configuration
- Single inlet/Dual outlet
- Product Attributes - Muffler Style
- Chambered
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Brushed
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19556 |
| SFX Item ID | 4289041 |
| Supplier Item Code | 4289041 |
| Manufacturer SKU | 19556 |
| Manufacturer UPC | 888563175539 |
| Alternative References | mpe-19556, MFL19556, 2.3L |
