MagnaFlow 2023 Toyota Sequoia Overland Series Black Axle-Back Exhaust
MagnaFlow 2023 Toyota Sequoia Overland Series Black Axle-Back Exhaust
A$4,193.47
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

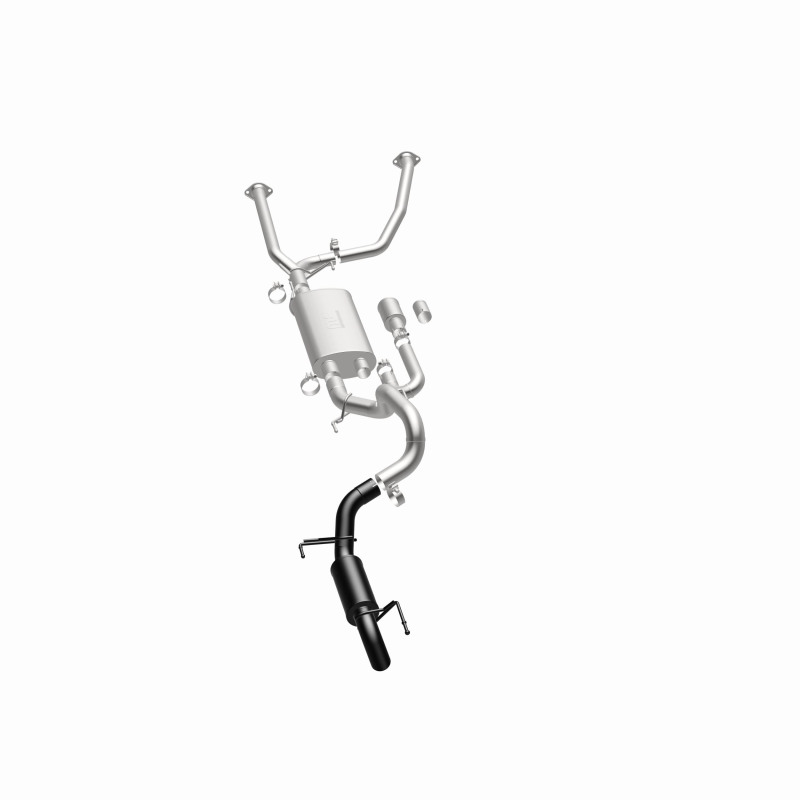

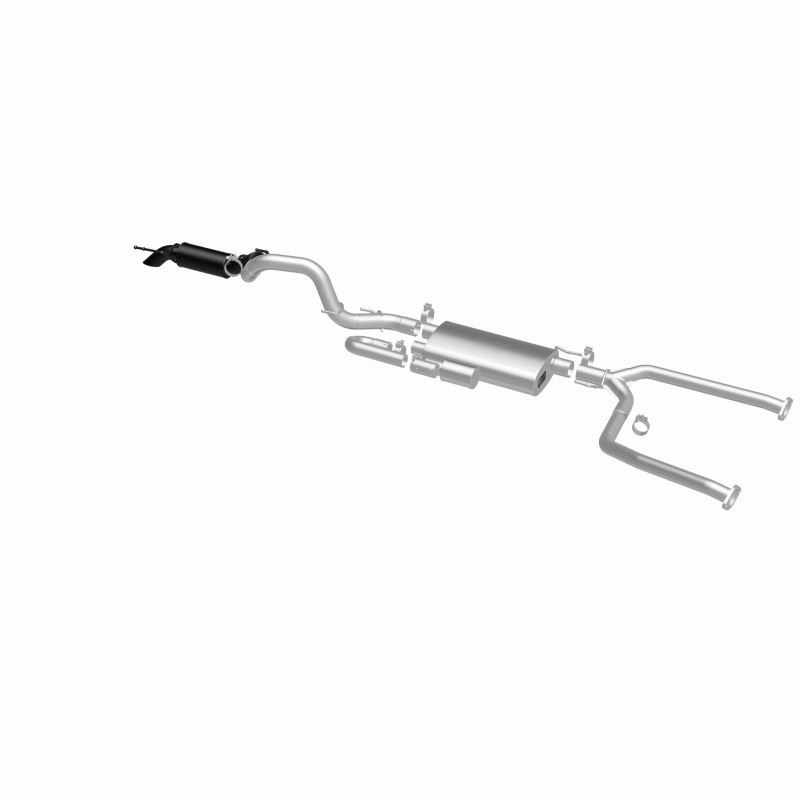

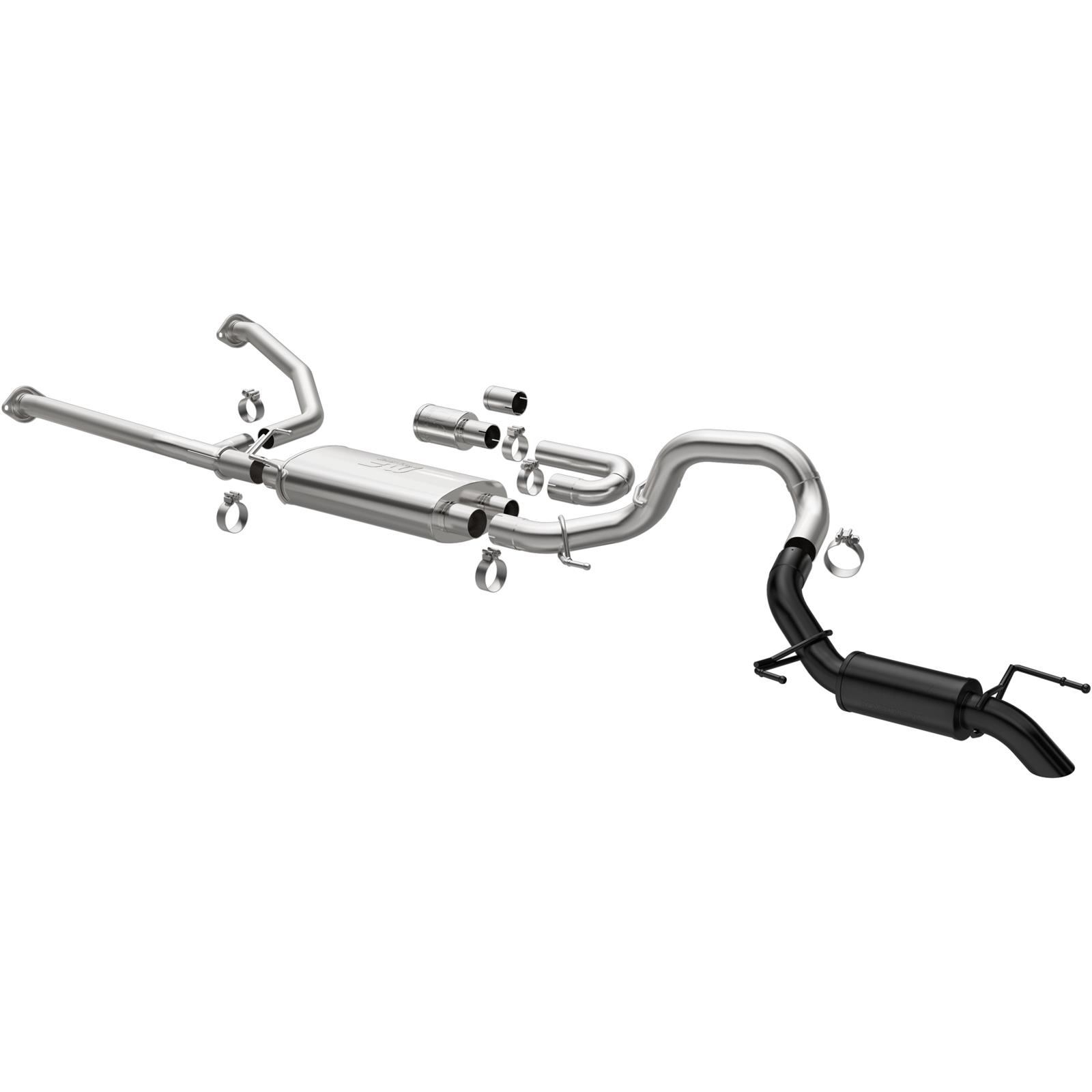

The MagnaFlow® Toyota Sequoia Overland Series™ Cat-Back Performance Exhaust System #19625 offers the improved off-road capabilities, higher ground clearance, dyno-proven performance and signature MagnaFlow® sound necessary to turn your Toyota Sequoia into the ultimate overlanding vehicle. #19625’s direct-fit design is easy to install and replaces your SUV’s stock exhaust components from near the catalytic converter on back. This Toyota Sequoia exhaust system features 3” mandrel bent main piping that passes through a 22” oval bodied muffler and 11” round bodied muffler in addition to an NDT (No Drone Technology) reflection chamber before ending in a high clearance, tucked black-coated tailpipe to the rear of the driver’s side. The integration of MagnaFlow®’s NDT technology means that droning noises at highway cruising speeds are kept to a minimum. One of the system’s mufflers features an accessory port, where various included modules can be attached to further augment your rig’s engine sound. An additional NDT resonator module can be attached for further droning reduction in various frequency ranges, or the port can be covered with the included pipe cap for a more traditional MagnaFlow® exhaust sound. Together with the included J-pipe module, these attachments can be combined in various configurations to tune out a variety of different droning frequencies. The high clearance nature of the design and tucked exit of this system means both improved ground clearance and departure angles for superior off-road performance. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Product Overview
The MagnaFlow Toyota Sequoia Overland Series Cat-Back Performance Exhaust System #19625 offers the improved off-road capabilities, higher ground clearance, dyno-proven performance and signature MagnaFlow sound necessary to turn your 2023-2024 Toyota Sequoia into the ultimate overlanding vehicle. #19625’s direct-fit design is easy to install and replaces your SUV’s stock exhaust components from near the catalytic converter on back. This Toyota Sequoia exhaust system features 3” mandrel bent main piping that passes through a 22” oval bodied muffler and 11” round bodied muffler in addition to an NDT (No Drone Technology) reflection chamber before ending in a high clearance, tucked black-coated tailpipe to the rear of the driver’s side. The integration of MagnaFlow’s NDT technology means that droning noises at highway cruising speeds are kept to a minimum. One of the system’s mufflers features an accessory port, where various included modules can be attached to further augment your rig’s engine sound. An additional NDT resonator module can be attached for further droning reduction in various frequency ranges, or the port can be covered with the included pipe cap for a more traditional MagnaFlow exhaust sound. Together with the included J-pipe module, these attachments can be combined in various configurations to tune out a variety of different droning frequencies. The high clearance nature of the design and tucked exit of this system means both improved ground clearance and departure angles for superior off-road performance. This performance exhaust kit is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features and Benefits
- No-Drone-Technology Allows For A Quiet Cabin
- No-Drone-Technology (NDT) allows for a quiet cabin
- Dyno proven performance
- High clearance exit
Product Details
| 10997: | 5 |
|---|---|
| 10998: | 22 |
| 10999: | 11 |
| 11006: | 4 |
| 11007: | 6 |
| 11008: | 4 |
| 11039: | 5 |
| 11040: | 11 |
| 11041: | 5 |
| 11056: | Straight-Through |
| 11059: | Tuned Chamber |
| 11075: | Brushed |
| 11076: | Black Coated |
| Catalytic Converter Quantity: | 0 |
| Clamping Type: | Band Clamp |
| Clamps Included: | Yes |
| Description: | Overland Series Black Cat-Back System |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Cat-Back |
| Exit Position: | Driver Side |
| Exit Style: | Single Straight Driver Side Rear |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Inside Diameter: | 3.000 in. |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 3 |
| Material: | Stainless Steel |
| Mounting Bracket Included: | No |
| Muffler (Rear) Type: | Straight-Through |
| Muffler Body Height Position Front Left: | 5 |
| Muffler Body Height Position Front Right: | 4 |
| Muffler Body Height Position Rear: | 5 |
| Muffler Body Length Position Front Left: | 22 |
| Muffler Body Length Position Front Right: | 6 |
| Muffler Body Length Position Rear: | 11 |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Width Position Front Left: | 11 |
| Muffler Body Width Position Front Right: | 4 |
| Muffler Body Width Position Rear: | 5 |
| Muffler Finish Position Front: | Brushed |
| Muffler Finish Position Rear: | Black Coated |
| Muffler Finish: | Stainless |
| Muffler Quantity: | 3 |
| Muffler Type Position Front Left: | Straight-Through |
| Muffler Type Position Front Right: | Tuned Chamber |
| Muffler Type Position Rear: | Straight-Through |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Part Number: | mag19625 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Tip Diameter: | N/A |
| Title: | MagnaFlow 2023-2025 Toyota Sequoia Overland Series Black Cat-Back Performance Exhaust System |
| Tubing Diameter: | 3.000 in. |
| Type: | Cat-Back |
| Valve Included: | No |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19625
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563181288
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Dual in/Single out
- Product Attributes - Exit Location
- Rear
- Product Attributes - System Finish
- Natural/Black
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- Two
- Product Attributes - Muffler Configuration
- Single inlet/Single outlet
- Product Attributes - Muffler Style
- Wrapped perforated core
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Black powdercoated
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- Yes
- Product Attributes - Tip Outlet Size (in.)
- 3.00
- Product Attributes - Tip Quantity
- 1
- Product Attributes - Tip Shape
- Round/Turndown
- Product Attributes - Tip Material
- 409 stainless steel
- Product Attributes - Tip Color
- Black
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- The front muffler is polished stainless steel. This muffler is single in dual out. One outlet goes to the 2nd muffler. Second outlet goes to reflection chamber or can be capped off.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19625 |
| SFX Item ID | 4289211 |
| Supplier Item Code | 4289211 |
| Manufacturer SKU | 19625 |
| Manufacturer UPC | 888563181288 |
| Alternative References | mpe-19625, MFL19625 |
