MagnaFlow 18-23 Jeep Wrangler JL 2.0L/3.6L Overland Series Axle-Back Exhaust
MagnaFlow 18-23 Jeep Wrangler JL 2.0L/3.6L Overland Series Axle-Back Exhaust
A$2,048.51
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

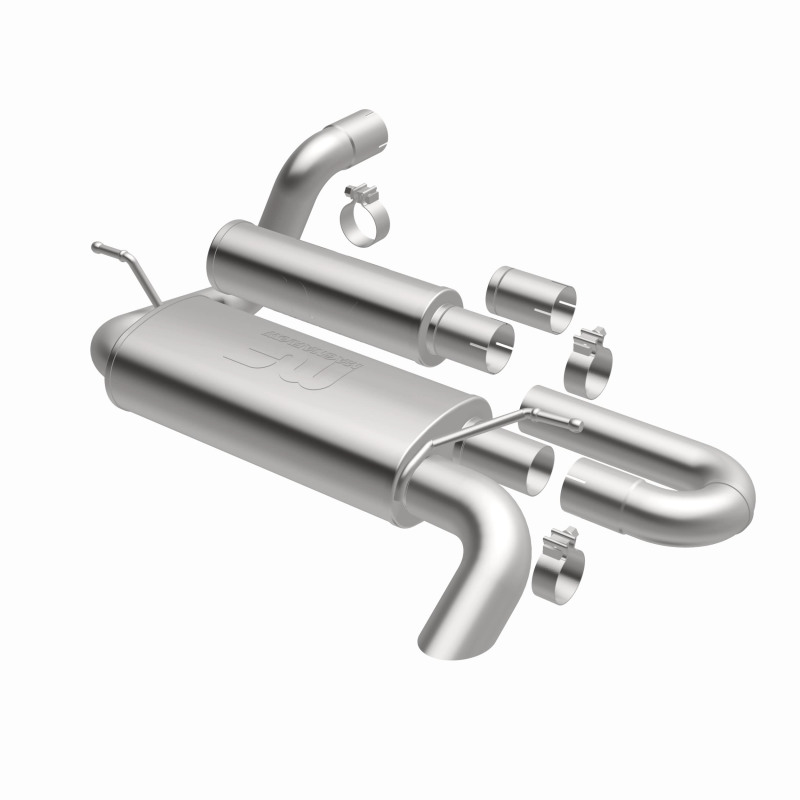

The MagnaFlow® Jeep Wrangler Overland Series™ Axle-Back Performance Exhaust System #19620 brings additional off-roading prowess, dyno-proven performance and a tunable exhaust sound to your Jeep Wrangler JL equipped with the 2.0L or 3.6L engine option. The high clearance design of this exhaust system is designed to keep clear of any challenging terrain you may come across. #19620’s 2.5” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and NDT (No Drone Technology) tuned chamber before terminating in a high-clearance tucked tailpipe to the rear of the passenger side. No Drone Technology utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire kit can be tailored to your preferred exhaust tone by changing out which module is attached to the integrated muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which sound profile you choose to go with is up to you. Because the integrated overland muffler incorporates NDT technology to begin with, all configurations offer various forms of NDT benefits. Looking to minimize overall drone? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow® exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19620 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Product Overview
The MagnaFlow Jeep Wrangler Overland Series Axle-Back Performance Exhaust System #19620 brings additional off-roading prowess, dyno-proven performance and a tunable exhaust sound to your 2018-2023 Jeep Wrangler JL equipped with the 2.0L or 3.6L engine option. The high clearance design of this exhaust system is designed to keep clear of any challenging terrain you may come across. #19620's 2.5" diameter mandrel bent main piping passes through an 18" straight-through oval muffler and NDT (No Drone Technology) tuned chamber before terminating in a high-clearance tucked tailpipe to the rear of the passenger side. No Drone Technology utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire kit can be tailored to your preferred exhaust tone by changing out which module is attached to the integrated muffler's accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which sound profile you choose to go with is up to you. Because the integrated overland muffler incorporates NDT technology to begin with, all configurations offer various forms of NDT benefits. Looking to minimize overall drone? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19620 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This Jeep Wrangler performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow's limited lifetime warranty.
Features and Benefits
- No-Drone-Technology Allows For A Quiet Cabin
- No-Drone-Technology (NDT) allows for a quiet cabin
- Dyno proven performance
- High clearance exit
Product Details
| 11009: | 4 |
|---|---|
| 11010: | 14 |
| 11011: | 4 |
| 11039: | 5 |
| 11040: | 18 |
| 11041: | 8 |
| 11060: | Tuned Chamber |
| 11070: | Straight-Through |
| Catalytic Converter Quantity: | 0 |
| Clamping Type: | Band Clamp |
| Clamps Included: | Yes |
| Description: | Overland Series Stainless Axle-Back System |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Axle-Back |
| Exit Position: | Passenger Side |
| Exit Style: | Single Straight Passenger Side Rear |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Inside Diameter: | 2.500 in. |
| Inlet Type: | Clamp-On |
| Main Piping Diameter: | 2.5 |
| Material: | Stainless Steel |
| Mounting Bracket Included: | No |
| Muffler Body Height Position Front: | 4 |
| Muffler Body Height Position Rear: | 5 |
| Muffler Body Length Position Front: | 14 |
| Muffler Body Length Position Rear: | 18 |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Width Position Front: | 4 |
| Muffler Body Width Position Rear: | 8 |
| Muffler Finish: | Brushed |
| Muffler Quantity: | 2 |
| Muffler Type Position Front: | Tuned Chamber |
| Muffler Type Position Rear: | Straight-Through |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Part Number: | mag19620 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Tip Diameter: | N/A |
| Title: | MagnaFlow 2018-2025 Jeep Wrangler Overland Series Axle-Back Performance Exhaust System |
| Tubing Diameter: | 2.500 in |
| Type: | Axle-Back |
| Valve Included: | No |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19620
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563181295
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Rear axle-back
- Product Attributes - Exhaust Type
- Single
- Product Attributes - Exit Location
- Rear
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 2.50 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- One
- Product Attributes - Muffler Configuration
- Single inlet/Dual outlet
- Product Attributes - Muffler Style
- Perforated tube with packing
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Brushed
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 2.50 in.
- Product Attributes - Tip Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19620 |
| SFX Item ID | 4289209 |
| Supplier Item Code | 4289209 |
| Manufacturer SKU | 19620 |
| Manufacturer UPC | 888563181295 |
| Alternative References | mpe-19620, MFL19620, 2.0L/3.6L |
