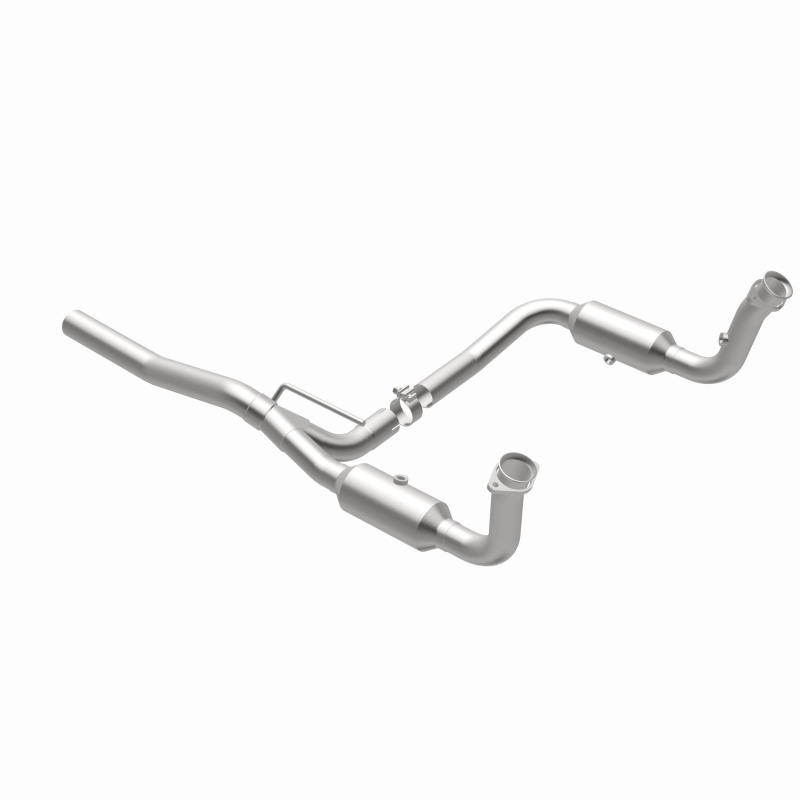

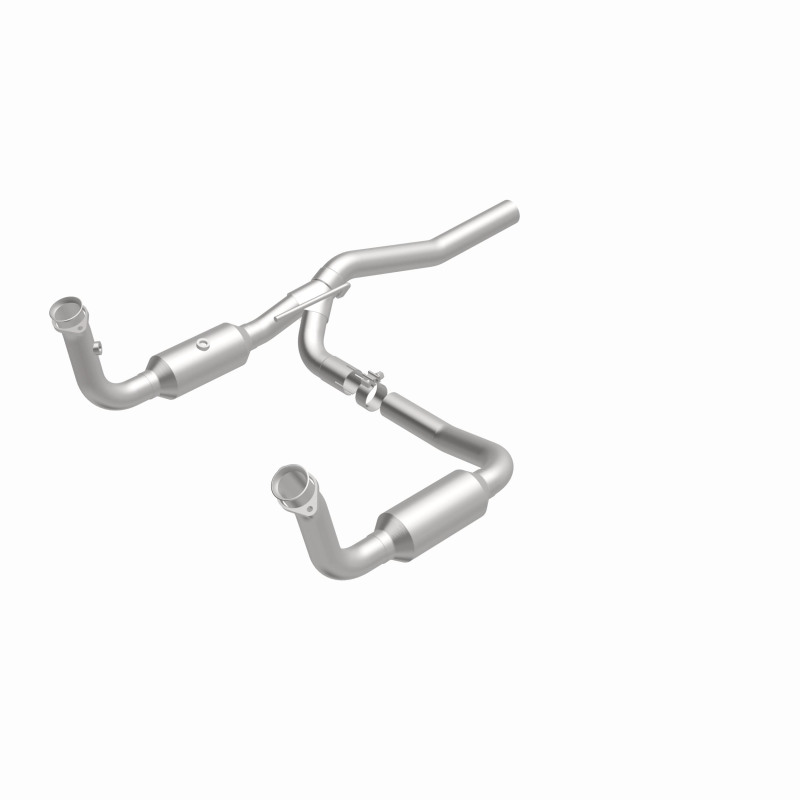

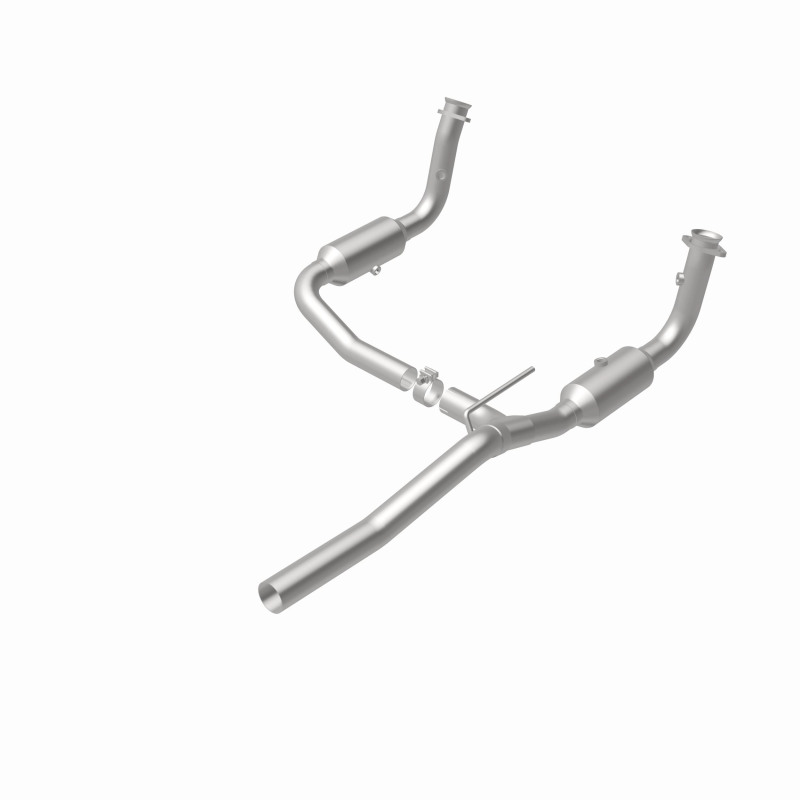

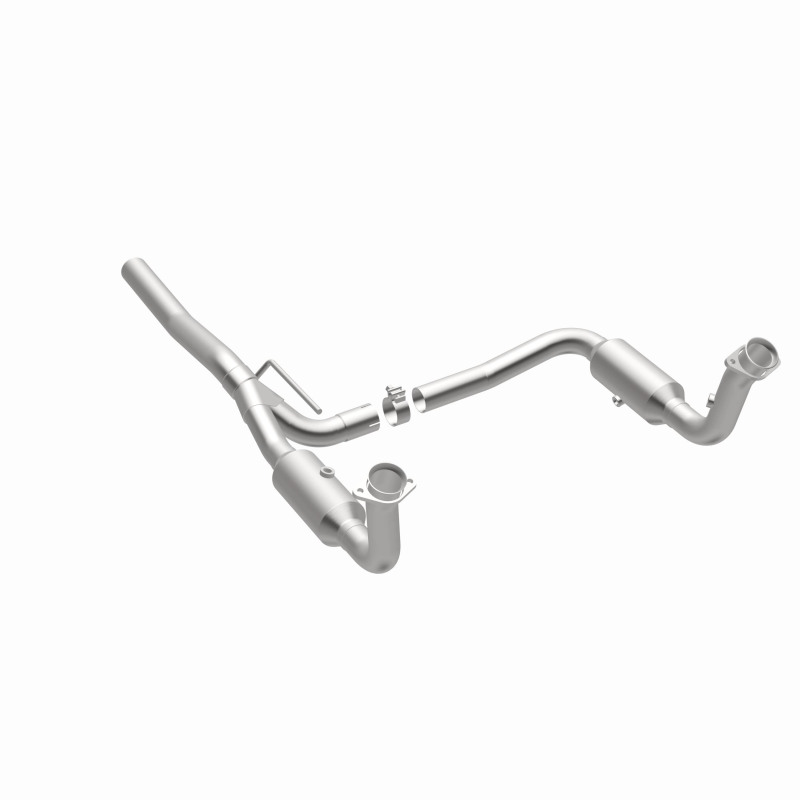

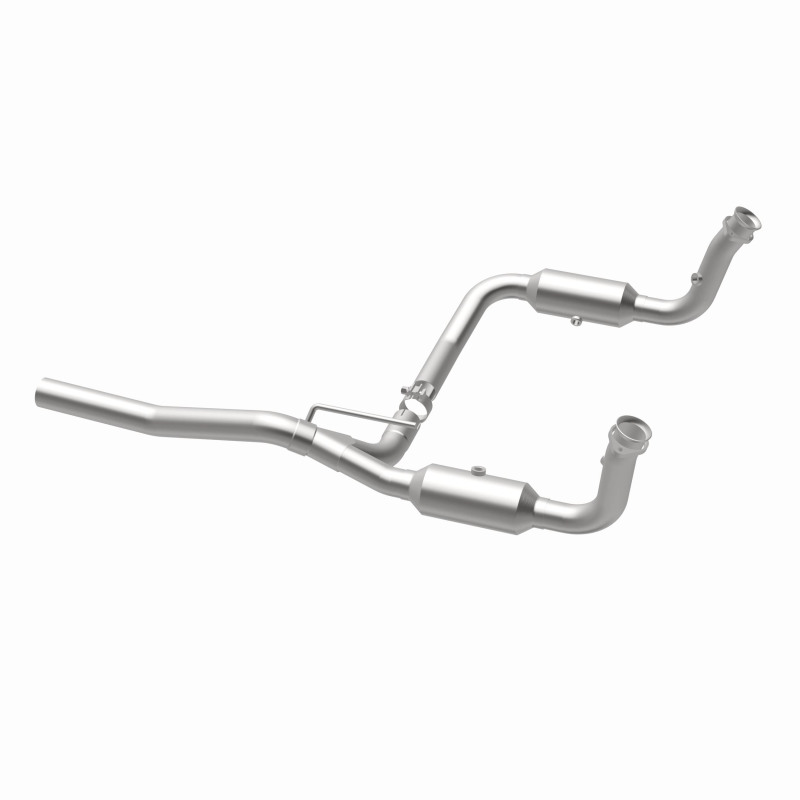

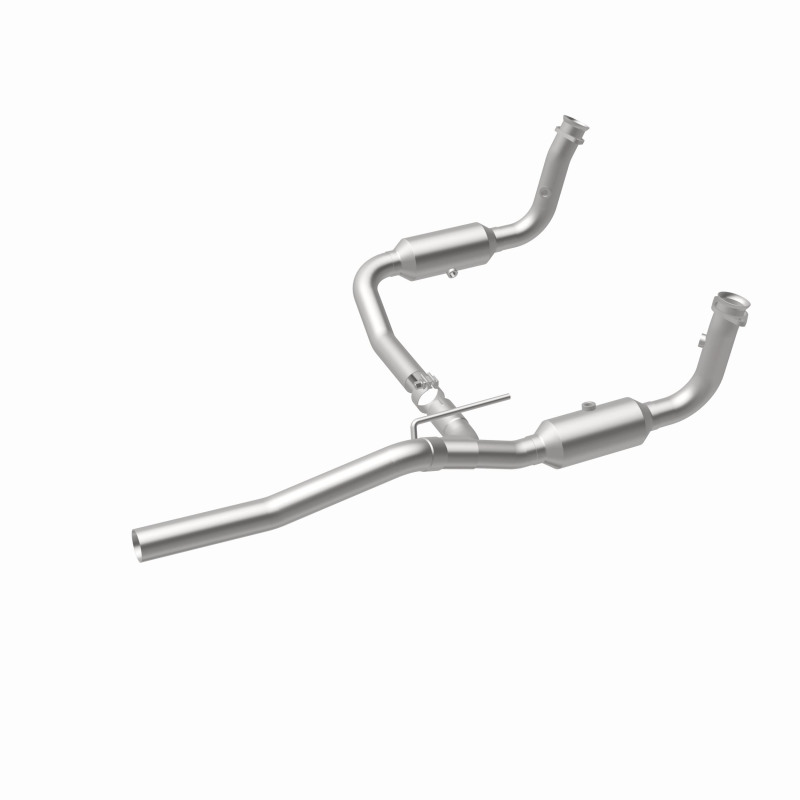

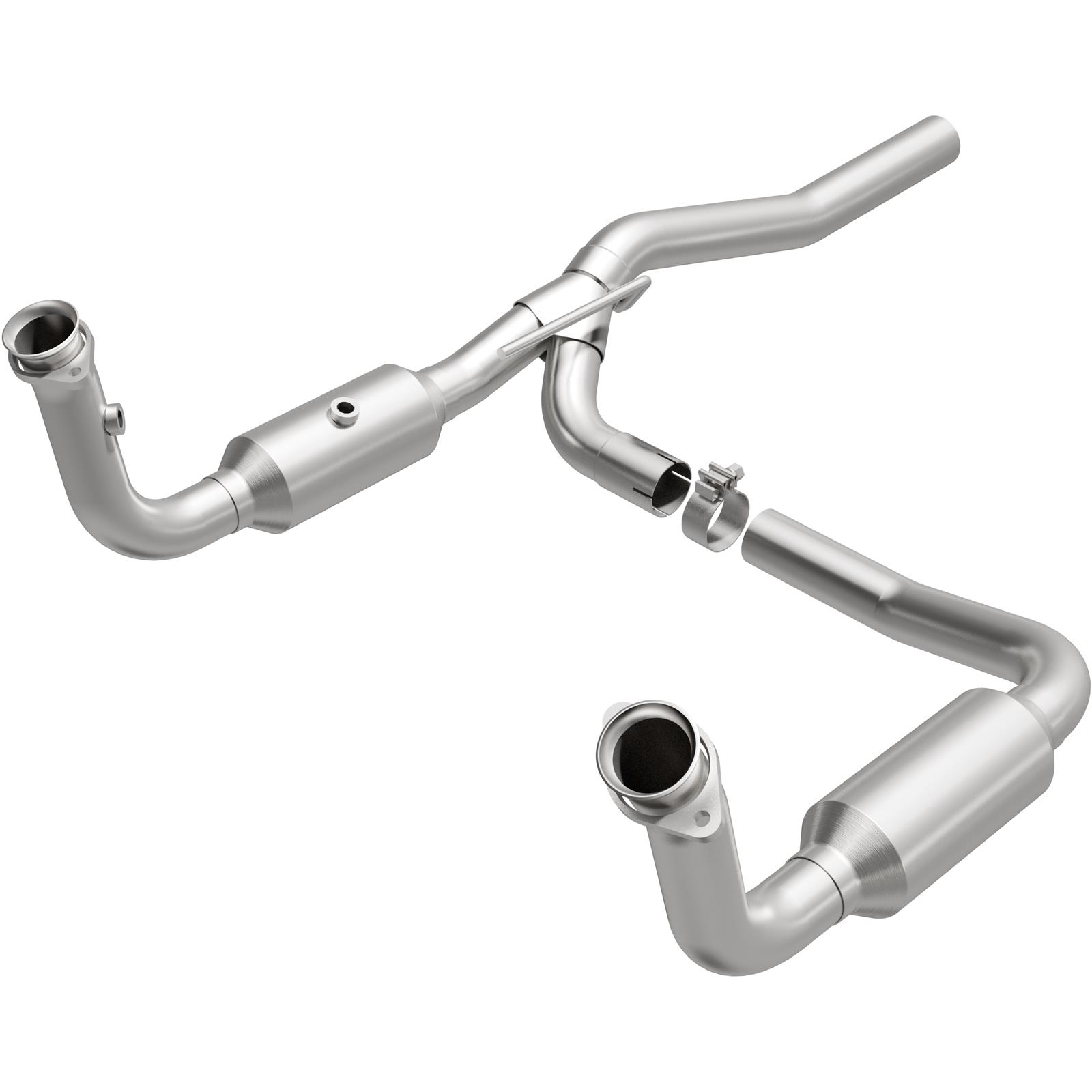

MagnaFlow 09-12 Jeep Liberty 3.7L Direct Fit Converter
MagnaFlow 09-12 Jeep Liberty 3.7L Direct Fit Converter
A$6,426.79
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5551148. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2009-2011 Dodge Nitro 3.7L & 2009-2012 Jeep Liberty 3.7L. MagnaFlow 5551148 includes (1) Torca Clamp and interchanges with OE parts 5212 5351AD, 5212 5351AE, 6805 2257AA, 6805 2257AB, 6810 5776AA. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Product Overview
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5551148. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 2009-2012 Jeep Liberty and 2009-2011 Dodge Nitro, this direct-fit catalytic converter also interchanges with OE parts 6805 2257AB and 6810 5776AA, among others. Hardware is included to eliminate the hassle of working with corroded factory parts. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Features and Benefits
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
- Precision Stamped Collector Design For Optimal Exhaust Flow; Engine Efficiency And Fuel Economy
- Mandrel Bent Tubing Retains OEM-Like Design And Geometry; Ensuring Smooth Exhaust Flow For Peak Fuel Economy Operation
- Torca AccuSeal® Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force Preventing Pipe Distortion
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel MIG Welds
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Precision stamped collector design for optimal exhaust flow, engine efficiency, and fuel economy
- Simplifies installation with essential gaskets and hardware being included in the box
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height: | 4 |
| Body Length: | 11.25 |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 4.000 in. |
| CARB Executive Order Number: | D-193-144 |
| California Air Resources Board (CARB) Certified: | Yes |
| Catalytic Converter Air Tube Adapter: | No |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Quantity: | 1 |
| Core Substrate Material: | Ceramic |
| Description: | California Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | No |
| Grade Type: | Regular |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 2.25 |
| Inlet Gasket Included: | No |
| Inlet Inside Diameter: | 2.250 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 2 |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.25 |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment: | Weld-On |
| Outlet Diameter: | 2.5 |
| Outlet Gasket Included: | No |
| Outlet Inside Diameter: | 2.5 |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Weld-On |
| Overall Length: | 50 |
| Oxygen Sensor Location: | Pre Converter and Midbed |
| Part Number: | mag5551148 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 4 |
| Series: | California |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | CARB Compliant Direct-Fit Catalytic Converter |
| Title: | MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5551148 |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Mandrel Bent Tubing Retains OEM-Like Design And Geometry; Ensuring Smooth Exhaust Flow For Peak Fuel Economy Operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- Precision Stamped Collector Design For Optimal Exhaust Flow; Engine Efficiency And Fuel Economy
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Simplifies installation with essential gaskets and hardware being included in the box
- Torca AccuSeal® Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force Preventing Pipe Distortion
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 5551148
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563149356
- Product Attributes - Inlet Quantity
- 2
- Product Attributes - Inlet Diameter (in.)
- 2.25 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 50.00
- Product Attributes - Converter Overall Width (in.)
- 4.00
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - CARB EO Number(s)
- D-193-144
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag5551148 |
| SFX Item ID | 4290305 |
| Supplier Item Code | 4290305 |
| Manufacturer SKU | 5551148 |
| Manufacturer UPC | 888563149356 |
| Alternative References | MFL5551148, MPE-5551148, 3.7L |
